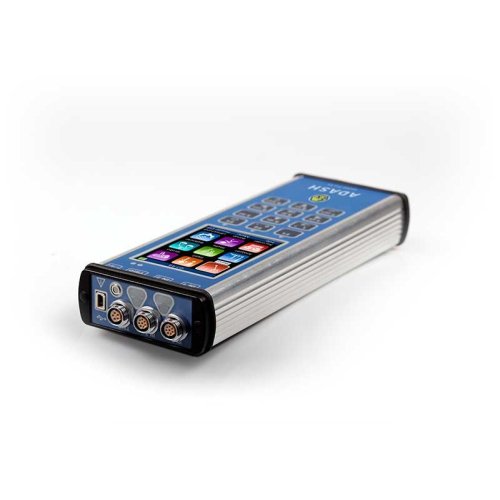

Sale Adash A4300 Pro3 EX Vibration Analyzer and Data Collector NEW
ADASH
VA3 Pro Ex is a professional vibration analyzer determined to protect your machinery. Build your kit according to your needs. Single or multi axis sensors, speed probe and other accessories are ready for your vibration analysis and predictive maintenance program on general. Machinery condition monitoring is a necessity also in hazardous industry environments such as mines, oil & gas, petrochemical etc. To protect human lives and equipment the devices used in such harsh areas has to be explosion proof. VA3 Pro Ex is ready at your service.
$3,188.00
Adash A4300 Pro3 EX Vibration Analyzer and Data Collector NEW
VA3 Pro Ex is a professional vibration analyzer determined to protect your machinery. Build your kit according to your needs. Single or multi axis sensors, speed probe and other accessories are ready for your vibration analysis and predictive maintenance program on general.
Machinery condition monitoring is a necessity also in hazardous industry environments such as mines, oil & gas, petrochemical etc. To protect human lives and equipment the devices used in such harsh areas has to be explosion proof. VA3 Pro Ex is ready at your service.
VERSATILITY & CONNECTIVITY
3x AC input – vibrations
3x DC input – process values
1x Trigger input (speed probe)
Triaxial sensor ready
IR temperature sensor
LED stroboscope / flashlight
Fast USB 2.0 communication
Robust Push-Pull connectors
VA3 PROEX FREE DDS SOFTWARE
Collect & Import
VA3 Pro Ex along with free DDS software can measure and store two basic measurements. Acceleration in g for the bearing condition and Velocity in mm/s (or ips) for the whole machine body condition.
Collect the data with VA3 Pro Ex regularly and import them into free DDS software. Follow vibration trends and observe the actual condition of your machines.
Specifications :
Ex certification:
II 3G Ex ic op is IIC T3 Gc
Input channels:
3 x AC, ICP® power supply on/off
3 x DC for process values
1 x TACHO for speed probe / external trigger
Input range:
AC /- 12 V peak-peak
DC /- 24V
AD conversion:
24 bit, 64 bit internal signal processing
No AutoGain function!
Dynamic range S/N:
120 dB
Frequency ranges (-3 dB):
Maximum range: 0.5 Hz - 25 kHz (64 kHz sampling)
Minimum range: 0.5 Hz - 25 Hz (64 Hz sampling)
Sampling mode:
Fully simultaneous for all 3 channels
FFT resolution:
Min. 25 lines
Max. 25 600 lines
Measurement modes:
Analyzer - analytical measurements
Data collector - route measurements
Balancer - 1 and 2 plane on site balancing
Recorder - raw signal recording for later post analysis
Run Up - run up and coast down measurements
Ultrasound - measurement of ultrasound in 30 - 50 kHz range
LED stroboscope, LED torch
FASIT - Expert system for automatic fault detection
Vibration meter - basic vibration measurements
Software:
Free version of DDS software (limited database size)
Licensed DDS software
Data processing:
Real time FFT
DEMOD - ENVELOPE analysis
ACMT - low speed bearing analysis
Order analysis
User band pass analysis
RPM measurement
DC measurement
Orbit measurement
IR temperature measurement:
From -70˚C to 380˚C (-94˚F to 716˚F)
Trigger:
Manual, External, Amplitude, Tacho
Display:
Colour 240 x 320 pixels, TFT
Interface:
USB 2.0, 3.0 compatible
Operating temperature range:
-10˚C to 50˚C
Power:
Battery pack for more than 6 hours of continous operation
Case:
Aluminium - heavy duty
Weight:
780 g
Dimensions:
230 x 82 x 32 mmLanguages: English, Spanish, German, French, Portuguese, Russian, Czech, Hungarian, Polish.
Also you can check product : Sale Adash A4910 LUBRI Lubrication and Vibration Analyzer Kit USED
- Availability: 42 In Stock
- Model: A4300 Pro3 EX
-
