Additel 793 Pressure Controller - Generator NEW

The Additel 793 pressure controller combines the latest control / measure technology, modular design and easy to use / maintain features into a single user friendly deice.  The Additel 793 provides pressure control up to 15,000 psi (1,000 Bar).  For users who require automated production, test, and calibration, Additel has the workload covered with this pressure controller.  The ADT793 accepts one ADT151 dual-range pressure module in additional to a barometric pressure module.  This allows users to quickly cover a wide range of pressures.

Application

Quick Change Pressure Modules (30 seconds)

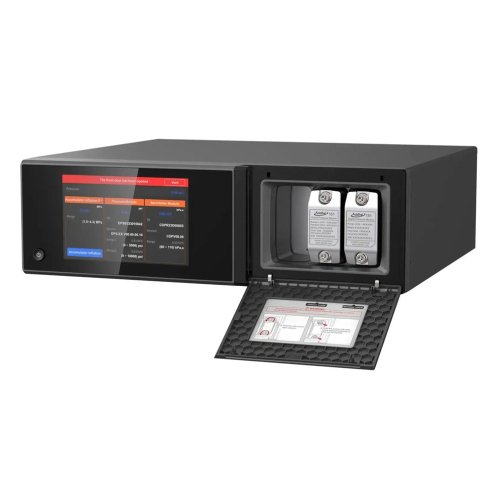

Additel's built-in pressure control modules can be installed or replaced within 30 seconds or less. Simply open the upeer edge of the cabin to open.  As the door opens, the controller will automatically release pressure, providing the safe removal and installation of the ADT151 modules.  Additel offers five different pressure ranges for the ADT793 controller.  Select between 1000 bar (15000 psi), 700 bar (10000 psi), 400 bar (6000 psi), 350 bar (5000 psi) or 200 bar (3000 psi) with the variety of accuracies to meet application requriements.

A Singular Pressure Module Design with a Wide Range of Capabilities
Additel’s 151 pressure modules have been designed with flexibility and efficiency in mind and can easily be swapped out as needed to meet changing needs and workloads.Higher pressure ADT151 modules cover two separate pressure ranges and come with individual calibrations for each range. This allows for each module to accuracy cover a wide range or pressure workloads. Also, each ADT151 is available in (3) different accuracy levels (0.02% FS, 0.01% FS and 0.01% of reading to meet the demanding needs of our customers. modular configuration provides users with the greatest flexibility.

20% Pressure Step within 30 Seconds
In the process of efficient and fast-paced production line testing, verification and calibration, users have strict requirements on the speed of pressure controllers. ADT793 adopts professional control technology to effectively improve control rate and stability: control response time (typical) ≤30 seconds, control stability (typical) ≤±(0.003~0.005)%FS, see specifications for more details.

External Reservoir Support
The ADT793 has been designed to support a method of contamination prevention in which the controller only draws in clean fluid during each
pressure cycle and purges potentially polluted fluid externally during each cycle to prevent cross contamination between the controller and units under test (UUT’s).

Contamination Prevention System (CPS) Prolongs the Maintenance of the Controller
Calibration of DUT’s (devices under test) often introduces contaminates to a calibration system. Contaminates can cause restrictions in valves, lines and filters. Additel has included a turn-key solution with the ADT793 to help reduce these concerns and improve durability and dependability when calibrating customers devices. The use of an automatic fluid exhaust system and integration firmware to allow for purges between pressure cycles to further reduce the possibility of introducing contaminates into the system.

Specifications :

Power Requirements
Power supply: AC 100~240 V, 50/60 Hz
Fuse: T3.15A 250V AC
Maximum Power consumption: 150 W

Size /Weight
Chassis Size: 17.32 × 5.23 × 14.96 in (440(W) × 133(H) × 380(D) mm)
Rack Mount Dimensions: 3U-19” rack, Horizontal Direction
Chassis weight: 20.7 kg
Pressure module weight: 0.5 kg

Environment
Operating Ambient: 10 ℃ ~50 ℃
Storage Temperature: 5℃ ~70 ℃
Operating humidity: 5%RH~95%RH, non-condensing
Altitude (Operation): < 2000 m
Ingress Protection: IP20, Indoor use only
Vibration level: 2 g
Impact intensity: 4 g
Warmup Time: 15 minutes
Bare Machine drop height: 250 mm

Conformity
CE

Communications
RS232, USB-A*2, LAN
WIFI, Bluetooth, GPIB, mouse, keyboard and other peripheral components can be expanded based on the USB port. SCPI Command set is compatible with ADT780, PACE5000/6000, DRUCK DPI520, user customizable.

External drive valve port
3-channel external drive valves, green terminal connector with lock.
Maximum driving ability 24 V / 12 W, 30 V max
One channel fixed to the CPS pollution prevention device, the remaining 2 channels can be used to control the external vacuum pump and external isolation valve.

I/O Alarm port
3-channel, green terminal connector with a lock
Volt-Free No/Nc relay, the maximum current-carrying capacity: 24 V / 0.5 A, 30 V max

Pressure switch test port
One channel, green terminal connector with lock
Maximum load 24 V / 0.1 A 30 V max
Support mechanical switch, electronic switch testing

Display
7-inch capacitive touch screen, 1280 * 800 resolution, reflective panels, black, white background can be user selectable.
Communication update speed: 10 times per second
Display refresh rate: 5 times per second
Pressure value maximum displays: + 9999999, display digits is adjustable

External pressure control module port
5 pin standard Lemo plug Connect external pressure control module （ADT161）

Internal pressure control module port
Opening the cabin door will automatically release the pressure for safe removal of modules
Inside of cabin: For ADT793/793W, 2 bays, from left to right, including a pressure module bay, and a barometric module bay.

Warranty
1 year

Hose & Filter End of Life
The estimated End of Life (EOL) expectancy for all accessory hoses and filters (pneumatic and hydraulic) is approximately 10 years and should be replaced at the first sign of wear or damage.
