Sale Additel 760 Automatic Handheld Pressure Calibrator NEW

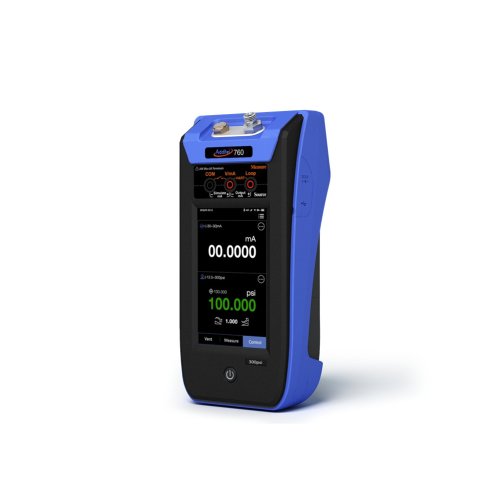

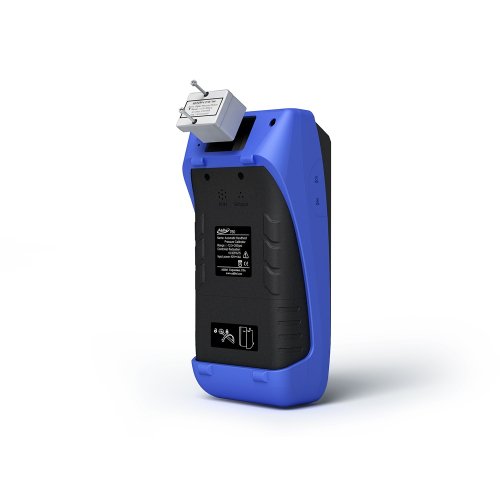

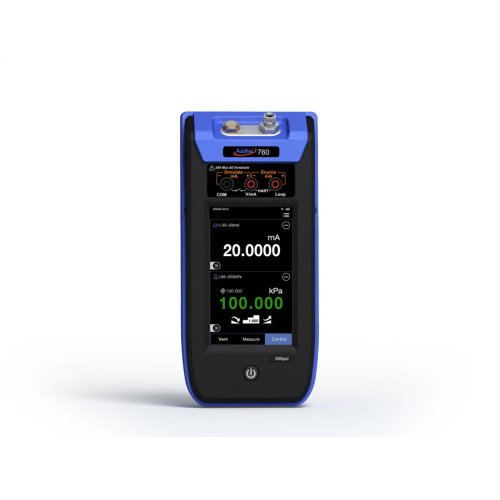

Additel 760 Automatic Handheld Pressure Calibrator NEW

A portable automated pressure calibrator in the palm of your hand-this could be our most exciting product yet! The Additel 760 series Automatic Handheld Pressure Calibrator takes portable pressure calibration to new levels. Weighing less than 4 lbs (1.8 kg), the ADT760’s innovative design contains a built-in pump, precision pressure sensor, internal controller and a large touch-screen color display. To generate pressure, simply key in the desired pressure and the Additel 760 will do the rest. Each unit has four channels: one internal pressure channel for source and measure pressures, two external pressure measurement channels, and one electronic measure and source channel. This series of calibrator has three standard models with the option of adding HART communications, documentation and data logging.

Documenting Process Functionality
Each model of the Additel 760 series has an option incorporating documentation and communication functions turning your 760 into a multifunction documenting process calibrator. This feature provides HART communication, task documentation and data logging.

FEATURES:

- Fully automatic calibrator with built-in pump and controller
- Switchable internal pressure modules for expandable ranges Accuracy as low as 0.01%FS
- External pressure modules available (measure only)
- Less than 4 lbs (1.8 kg) for handheld operation
- Source pressure, measure pressure and electrical
- 4 channels
- Optional HART communications
- Optional data logging and task documenting
- Bluetooth (new), USB, and Wi-Fi communication
- ISO 17025-accredited calibration w/data included

MODEL :

ADT760-LLP (Air:  Up to ±30 inH2O)
The 760-LLP is designed for low pressure calibration and comes with a build-in pressure module of your choice. The maximum range module compatible with the ADT760-LLP is to ±30 inH2O (±75 mbar) and provides an accuracy to 0.05%FS (see ordering information for configurations with the option of the ADT760 and a module of your choice). Additional internal pressure modules (ADT155 series) are available and provide a variety of ranges down to ±0.25 inH2O (±0.62 mbar). The accuracy of 0.05%FS and control stability 0.005%FS is based on the internal module’s span. Measurements can be made in gauge or differential mode.

ADT760-D (Air:  Up to 35 psi)
The 760-D gives you differential and gauge pressure but at a higher pressure range than the ADT760-LLP. Covering the range of -12.5 to 35 psi (-0.86 to 2.5 bar) and with an accuracy of 0.01%FS or 0.02%FS (depending on the interchangeable ADT155 module used), the ADT760-D is an ideal solution to cover very common gauge and differential pressure measurements. The Additel 760-D comes with an internal module covering its full range, but lower pressure configurations down to ±10 inH2O differential can be purchased to improve accuracy at lower pressures.

ADT760-MA (Air:  Up to 300 psig)
The 760-MA generates and controls pressure from vacuum pressures up to 300 psig (20 bar.g) with an accuracy of 0.01%FS or 0.02%FS (depending on the interchangeable ADT155 module used). Equipped with a built-in barometric reference, each unit can switch between gauge and absolute pressure types. A variety of internal sensors are available which offer lower pressure ranges for improved performance.

Specifications :

Channels
Four total: one electrical, one internal pressure, two external pressure (measure only)

Enclosure IP Rating
IP52 water and dust proof

Battery
Rechargeable Li-Ion battery, typically 10 hours of operation, recharges in less than 4 hours

Display
Color 800 x 480 TFT 5-inch touch screen

Communications
Bluetooth, WiFi and USB

Weight
<4 lbs (<1.8 kg)

Size
9.3 x 4.3 x 2.8 in (235 x 110 x 70 mm)

Certification
ISO 17025 accredited certificate with data included

HART Communications
Optional (ADT760-X-DL model)

Data Logging
Optional (ADT760-X-DL model), up to 1,000,000 readings (date and time stamped)

Task Documentation
Optional (ADT760-X-DL model) up to 1000 tasks

Automation Functions
Switch test, auto step, leak test

Misuse Protection
Up to 30 V on any two sockets

Multi Lingual Interface
English, German, French, Italian, Spanish, Portuguese, Chinese, Japanese, and Russian

Pump Life
>500,000 cycles

Power
Rechargeable Li-Ion battery, external power: 110/220 V power adapter 10 V

Environment Specifications
Operation: 32°F to 122°F (0°C to 50°C), 0-90% RH, less than 3,000 meters Compensated temperature: 32°F to 122°F (0°C to 50°C) Storage temperature: -4°F to 158°F (-20°C to 70°C)

Vibration and Shock
Vibration: 4 g (20 to 2,000 Hz) Shock: 8 g

Compliance
CE

Software ACal, Land, LogII

Warranty
1 year

Hose & Filter End of Life
The estimated End of Life (EOL) expectancy for all accessory hoses and filters (pneumatic and hydraulic) is approximately 10 years and should be replaced at the first sign of wear or damage.

INCLUDED :

ADT100-760-KIT Adapter set
external power adapter
USB to USB cable
chargeable Li-ion battery
Test leads
Hose
Pressure Hose
Silicone Tube
Adapter,quick female to barb
Accredited certificate ISO17025

Optional Accessories :

Pressure module connection cable
Special Connector to 1/4NPT quick connector
Special Connector to 1/4BSP quick connector
Special Connector to M20x1.5 quick connector
Special Connector to 1/2NPT quick connector
Special Connector to 1/2BSP quick connector
Pneumatic Pressure Manifold
DP gauge holder
Filter, set of 1 pc
Soft carrying case
Carry case

Also you can check product : Sale Additel 762 Automated Hydraulic Pressure Calibrator NEW

DATASHEET ADT760

• Availability: 32 In Stock
