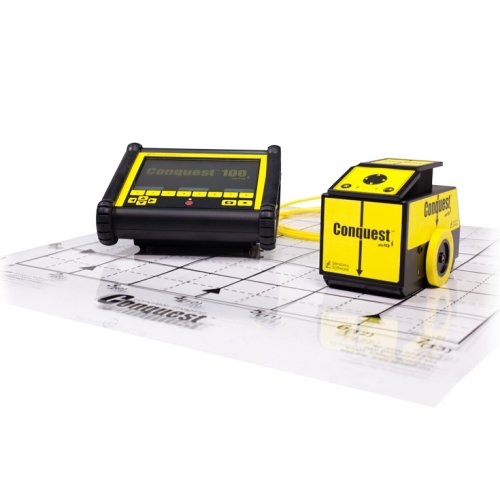

Sensor and Software Conquest 100 GPR and Concrete Scanner NEW

Unlock a world of subsurface information with one quick scan.

Conquest 100 allows you to get rapid, reliable results and reduce the need for destructive testing. It is a light, portable device that provides a fast, non-invasive method to gain accurate insights of objects below the concrete surface, even on a curved surface or column.

Conquest 100 GPR increases safety by detecting rebar, post-tension cables, metallic and non-metallic conduits as well as current-carrying wires embedded in concrete. Once your concrete scan is complete, the system allows you to e-mail information directly from the field in the form of a Wi-Fi mini-report. With the Conquest 100 Enhanced, you also have the option to add the powerful optional EKKO_Project Software to view your data and make client-ready reports in minutes once back in the office.

Features

High-Resolution Touchscreen: See targets clearly with intuitive on-screen operation
Easy Reporting: Transfer information wirelessly to your smartphone using Wi-Fi
Optional EKKO_Project PC Software: Our all-inclusive software solution for managing, displaying, processing and interpreting GPR data.
Swappable Li-Ion Battery: Never lose time with long-lasting swappable batteries.
All-in-one transportation case.
Collect data in a comfortable standing position using the optional resizable handle for the Sensor Head and carry harness for the Display Unit.
Wireless triggering for easy one-handed operation when using the Conquest® 100 collapsible handle.

Data Collection Modes

Line Scan
Perform reconnaissance surveys to gain real-time assessment of targets embedded in concrete. Pin-point targets with the backup arrow.

Perform accurate measurements
Classify targets with color coded field interpretations by simply touching the screen
Display position and depth of targets with the touch of a finger

Grid Scan
Perform detailed area mapping to generate on-site 3D images to better visualize embedded objects in complex sites. Select from pre-set grid sizes with varying resolution levels.

Safe Coring, Drilling and Cutting

Detect embedded objects before cutting or coring
Create detailed scans of concrete floors, decks, columns, walls and ceilings to detect conduits beneath slab-on-grade

On-screen drill locator
Target coring position and cut with confidence reducing the risk of hitting a conduit.

Color-coded interpretations
Classify targets with field interpretations right from your display unit

Power Cable Detector (PCD)Locate power cables that are embedded in concrete within your survey area to mitigate any potential risks when construction works needs to be done. The standard PCD feature built-in the Conquest® 100 augments GPR imaging allowing the user to detect current-carrying utility lines.

Get your Conquest 100 today and unlock the following GPR applications:

Locate rebar, post-tension cables, metallic and non-metallic conduits embedded in concrete.
Create detailed scans of concrete floors, decks, columns, walls and ceilings to detect embedded objects before cutting or coring.
Detect voids beneath slab-on-grade.
Locate and map current-carrying wires using Power Cable Detector (PCD) technology.
Export GPR data and produce outstanding reports to visualize embedded objects in lines, depth slices and 3D using the optional EKKO_Project Software Bundles.

Specifications :

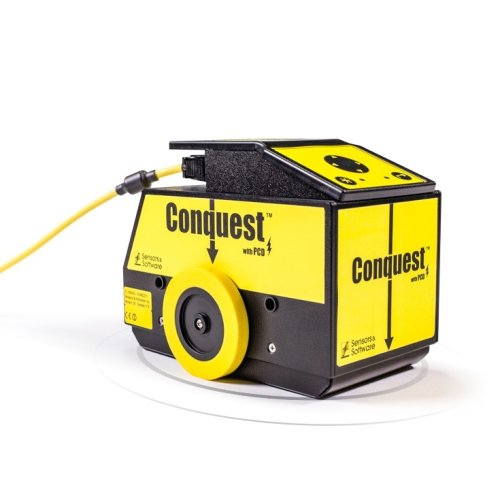

Sensor Head Size
150 x 130 x 190 mm (5.84 x 5.00 x 7.38 in)

Sensor Weight
1.00 kg (2.18 lbs)

Display Unit Weight (without battery)
2.83 kg (6.24 lbs)

Battery Weight
0.48 kg (1.05 lbs)

Display Unit Screen
8.0" high-visibility, sunlight-readable diagonal LCD display with touchscreen
Adjustable backlighting
1000 NIT and 800:1 contrast ratio

Colors
24 total color palettes (8 color palettes with 3 contrast levels per palette)

Wireless
Integrated modules:
- Wi-Fi (IEEE 802.11 b,g,n)
- GPS/GLONASS

Audio
Built-in speaker - 85dBA speaker with volume control

Bluetooth Connectivity
Yes

Acquisition Rate
100,000 samples/s

Battery
Lithium Battery Pack
Battery Life: 4-6 hours
Battery Capacity: 9 Ah
Built-in power management features to conserve battery power and preserve data integrity

Charger
Built-in charger with status indicator
Universal AC mains charger: Input: 100-240V, 2A, 50/60Hz
Output: 18V, 4.45A, 80W Max

Display Unit Input
10-24V, 4A maximum

Temperature & Environmental
Ruggedized, environmentally sealed unit and connections
Ingress protection (IP) rating: DVL-500 is rated to IP65 under IEC 60529
Relative Humidity operation (non-condensing): 10 – 90%
DVL-500 operating temperature range: -40 to 50°C
Use battery charger/AC adapter between 0 and 35°C
Operation on battery is possible below -20°C but battery endurance will be limited
Do not use touchscreen below -20°C

Battery Storage
Recommended conditions: -20 to 25°C
Maximum temperature range: -20 to 60°C
Extended storage above 40°C could degrade battery performance and life

Regulatory Specifications
EMC-FCC, CE, IC

Safety
TUV, CE

INCLUDED :

CONQUEST 100 Concrete Scanner

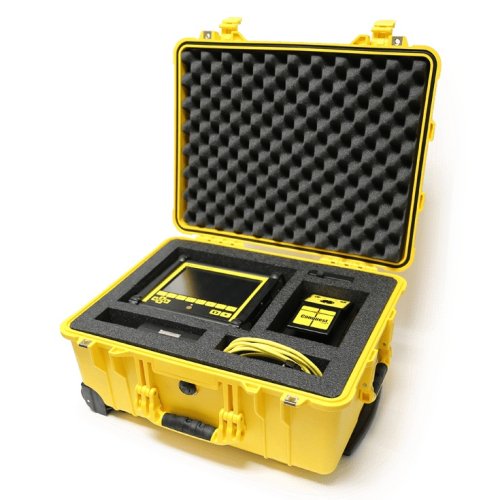

Conquest Hard Transport Case
Sensor Head
Hardness
CONQUEST 100 Spare Battery Pack
2 x CONQUEST 100 Transducer Cable
Battery Charger
AC power Cable
Guide for SensoftU
Conquest 100 user's Guide
CONQUEST 100 Vinyl Grid

• Availability: 42 In Stock
• Model: Conquest 100
