Sale Additel 783 Pressure Indicator - Available 4 Models NEW
ADDITEL
These modular pressure controllers combine cutting-edge control/measurement technology, modular design, and user-friendly features. The Additel 783 controller series is optimized for high speed to pressure without compromising accuracy and stability. For users who require automated production, test, and calibration, Additel has the workload covered with these pressure controllers. The ADT783 can be quickly outfitted with two controlling modules and one reference barometric module to cover a wide pressure range. The Additel 783 series offers three base units to choose from, which range from 3500 psi (250 bar) down to low pressure differential.
$3,120.00
Additel 783 Pressure Indicator NEW
These modular pressure controllers combine cutting-edge control/measurement technology, modular design, and user-friendly features. The Additel 783 controller series is optimized for high speed to pressure without compromising accuracy and stability. For users who require automated production, test, and calibration, Additel has the workload covered with these pressure controllers. The ADT783 can be quickly outfitted with two controlling modules and one reference barometric module to cover a wide pressure range. The Additel 783 series offers three base units to choose from, which range from 3500 psi (250 bar) down to low pressure differential.
Pressure ranges from -14.35 psi (-0.99 bar) to 6000 psi (420 bar)
Two removable internal pressure modules with multi-range selection
0.02% FS, 0.01% FS, and 0.011% RD accuracies available
Control stability of 0.003%FS
Ultra-High speed pressure control
Absolute and Gauge Pressure
WiFi enabled communications
Large 7" color touch screen display
Optional barometer module
Easy-to-use icon driven interface
I/O alarm
Application
Quick Change Pressure Modules (30 seconds)
Additel's 151 pressure control modules can be installed or replaced within 30 seconds or less. Simply open the upper edge of the cabin to open. As the door opens, the controller will automatically release pressure, providing the safe removal and installation of the ADT151 modules.
Convenient Automatic Calibration of Internal Pressure Control Module
For production line users, higher frequency calibration and comparison of the pressure control module is an important guarantee means to improve the uncertainty of test calibration. The ADT783 can be connected with a external high-precision pressure module, which can be used to achieve regular comparison of the internal pressure control module, and can also realize the automatic calibration of the internal pressure control module.
Modular Design, Easy Maintenance
The ADT783 adopts a variety of easy maintenance design methods, which can quickly change the pressure control module, quickly change the pressure control component, quickly clean the solenoid valve, and fine filtration of pollution particles.
20% Pressure Step Within 10 Seconds
In the process of efficient and fast-paced production line testing, verification and calibration, users have strict requirements on the speed of pressure controllers. ADT783 adopts professional control technology to effectively improve control rate and stability: control response time (typical) ≤10 Seconds, control stability (typical) ≤±(0.001~0.003)%FS, See specifications for more details.
Vacuum Pump Automatic Start-Stop, Greatly Extending the Life of the Vacuum Pump
The ADT783 incorporates a built-in positive pressure/vacuum gas source with switching components. When controlling a small pressure above the atmospheric pressure point, it can be controllable and stable without connecting the vacuum pump. When controlling negative pressure or vacuum pressure, there is no need to utilize an external vacuum pump or protection components. A solid-state relay can be connected to the power supply line of the vacuum pump to realize fully automatic vacuum pump start-stop control, greatly extending the life of the vacuum pump.
Volt Free Contacts
Volt Free Contacts enable control of peripheral devices such as vacuum pumps, ovens, etc. Each VFC option has three independent volt-free NO/NC relay contacts. A number of conditions can be set within a Additel instrument to trigger a relay toggling its contacts.
Specifications :
Power Requirements
Power supply: AC100~240 V, 50/60 Hz
Fuse: T3.15A 250V AC
Maximum Power consumption: 150W
Size /Weight
Chassis Size: 17.32 × 5.23 × 14.96 in (440(W) × 133(H) × 380(D) mm)
Rack Mount Dimensions: 3U-19” rack, Horizontal Direction
Chassis weight: 16.9 kg
Pressure module weight: 0.5 kg
Environment
Operating Ambient: 10℃ to 50℃
Storage Temperature: -20℃ to 70℃
Operating humidity: 5%RH~95%RH, non-condensing
Altitude (Operation): <2000 m
Ingress Protection: IP20, Indoor use only
Vibration level: 2 G
Impact intensity: 4 G
Warmup Time: 15 minutes
Machine drop height: 250 mm
Conformity
CE
Communications
RS232, USB-A*2, LAN
WIFI, Bluetooth, GPIB, mouse, keyboard and other peripheral components can be expanded based on the USB port.
SCPI Command set is compatible with ADT780, PACE5000/6000, DRUCK DPI520, user customizable
External drive valve port
3-channel external drive valves, green terminal connector with lock
Maximum driving ability 24 V / 12 W, 30 V max
One channel fixed to the CPS pollution prevention device, the remaining 2 channels, users can be used to Control the external vacuum Pump and external isolation valve
I/O Alarm port
3-channel, green terminal connector with a lock
Volt-Free No/Nc relay, the maximum current-carrying capacity: 24 V / 0.5 A, 30 V max
Pressure switch test port
One channel, green terminal connector with lock
Maximum load 24 V / 0.1 A 30 V max
Support mechanical switch, electronic switch testing
Display
7-inch capacitive touch screen, 1280 * 800 resolution, reflective panels, black, white background can switch
Communication update speed: 10 times per second
Display refresh rate: 5 times per second
Pressure value maximum displays: + 9999999, display digits is adjustable
External pressure module
Measurement only
Internal pressure control module port

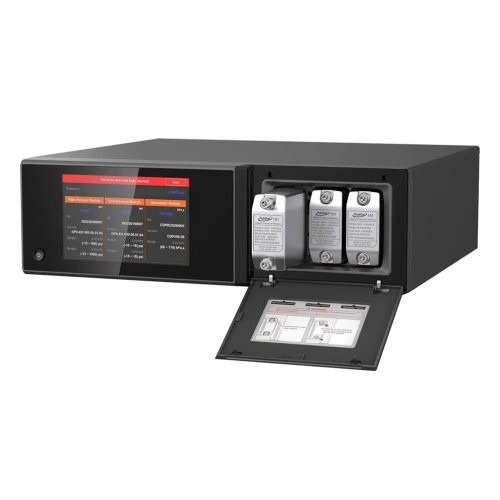

Opening the cabin door will automatically release the pressure for safe removal of modules
Inside of cabin, 3 pressure module bays, from left to right
including a high pressure module bay, a low pressure module bay, and a barometric pressure module bay
Warranty
1 year
Hose & Filter End of Life
The estimated End of Life (EOL) expectancy for all accessory hoses and filters (pneumatic and hydraulic) is approximately 10 years and should be replaced at the first sign of wear or damage.
INCLUDED :
AC power cord
calibration certificate
Green terminal plug
Standard vent assembly
5 feet flexible hose
Adapter
Ball-end hex wrench (4mm)
