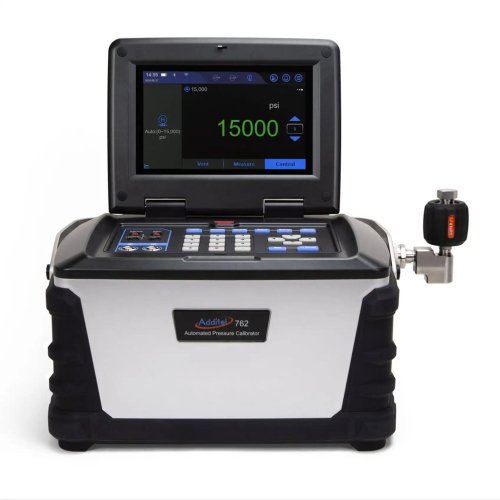

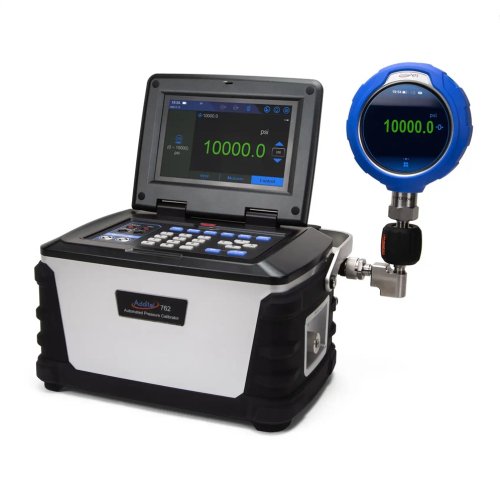

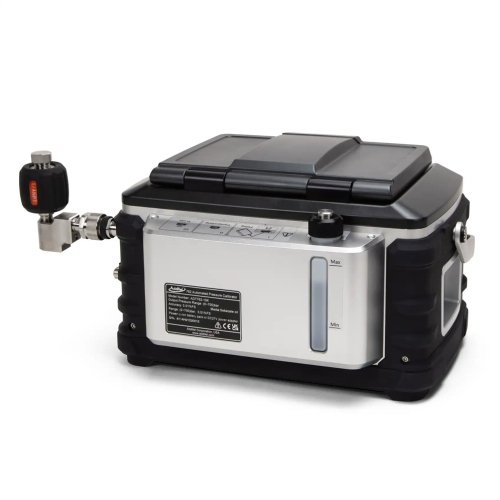

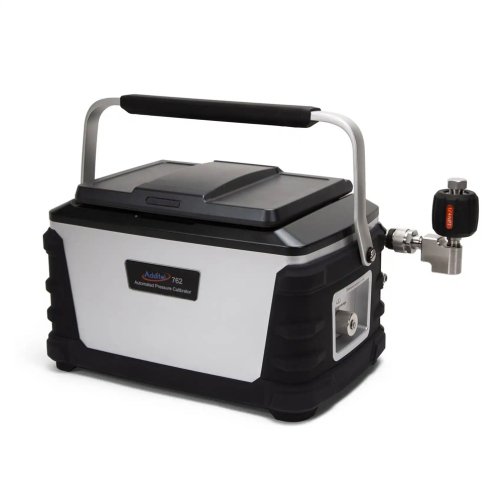

Additel 762 Automated Hydraulic Pressure Calibrator NEW

The Additel 762 Automated Pressure Calibrator is unlike any other pressure calibrator on the market.  This revolutionary product is a complete turnkey solution for automation of pressure calibration work up to 15,000 PSI.

Designed for use in both the field and the laboratory, the portability and accuracy of this state-of-the-art product will quickly become the favorite go-to calibrator for lab personnel and field technicians alike.

With fully automated support for calibration of pressure transmitters, switches, dial and digital gauges and sensors, including HART/PROFIBUS devices in conjunction with a fully integrated task feature, data collection and Wi-Fi connectivity, we had our customer’s needs in mind when designing our most capable pressure calibrator to date.

Dual-Range Accuracy to 0.01% FS

The ADT762 includes the unique ability to automatically switch between different internal calibrations depending on the current control pressure of the ADT762. Additel provides calibrations unique to each ADT762 for ranges of 0-3,000 PSI (200 Bar) and 0-10,000 PSI (700 Bar), or 0-6,000 PSI (420 bar) and 0-15,000 PSI (1,035 bar). As the calibrator is pressurized, it will automatically select the best calibration data for any specific control pressure. This means the accuracy option of 0.01% or 0.02% FS would apply to both pressure ranges. Pressure calibration range selection can be set to “auto” mode so the calibration range is automatically selected by the ADT762 based on the set point pressure, or the calibration range can be manually selected.

Built-in Auto-Purge Application

Purging hydraulic calibration systems can be challenging and time consuming. The ADT762 has been designed with an integrated auto-purge system that saves time, money and frustration by completely automating the removal of air from the system. With the push of a button, the ADT762 quickly manages the system purging. This helps to free up time for technicians to attend to other needs.

Documented Task Feature

The powerful documented calibration task application allows users to quickly create and execute tasks without the need for a PC or tablet. The ADT762 automatically analyzes errors, generates test reports, while storing results locally. The Additel 762 can support up to 1000 documented tasks which can be stored and recalled at any time to help save time and money.

Dual-Mode Hart Communication

HART pressure transmitters can be directly maintained and calibrated without any other equipment or tools. The ADT762 provides an automatic HART calibration mode as well as a manual mode. This dual-mode HART communication function not only provides an efficient and convenient interoperability mode for DUT, but also supports access to a fully HART capable calibrator.

FEATURES :

Automated pressure generation and control to 15,000 psi (1035 Bar)
Accuracy to 0.01%FS
Dual-range calibration
Control stability ≤ 0.005%FS
Portable - designed for use in the field and in the lab
Control by external pressure modules
Supports two external pressure modules
Wi-Fi, LAN, Bluetooth, USB and Ethernet communication
Full HART field communicator
HART and profibus communication
Data logging and task management
Patented electric pump technology
ISO 17025-accredited calibration w/data included

Specifications :

User Interface
Color touch screen and keypad operation

Display
7” TFT touch screen 800 x 480 color

Enclosure IP Rating
IP31

Power
Dedicated lithium battery or power adapter

Battery
Rechargeable Li-Ion battery, typically 12 hours of operation, less than 5 hours recharge.

Weight
28 lbs (12.8 kg) without media

Media
Sebacate oil

Size
11.81 x 8.66 x 7.56 in (300 x 220 x 192 mm)

Communications
USB, LAN, Bluetooth, Wi-Fi and Ethernet

HART Communication
Read, configure and calibrate HART devices - DD files updated periodically

Data Storage
＞ 8 GB

Data Logging
Up to 1,000,000 readings (data and time stamped)

Task Documentation
Up to 1,000 tasks can be stored with data

Automation Functions
Switch test, auto step, leak test

User Interface Localization
English, German, French, Italian, Spanish, Portuguese, Chinese, Japanese, and Russian

Pump Life
> 1,000,000 cycles

Environmental Specifications
Operating temperature: 32 °F to 122 °F( 0 °C to 50 °C)
Storage temperature: -20 °C to 60 °C ( -4 °F to 120 °F)
Humidity: <90%, non-condensing

Certification
ISO 17025 accredited certificate of calibration with NIST-traceable data

Compliance
CE

Software Compatibility
ACal, Additel Land and Additel Link for access via mobile application

Warranty
1 year

Hose & Filter End of Life
The estimated End of Life (EOL) expectancy for all hoses and filters (pneumatic and hydraulic) is approximately 10 years and should be replaced at the first sign of wear or damage.

INCLUDED :

1220V/220V external power adapter
Rechargeable Li-ion battery
ADT100-762 high pressure hose
Small accessory case
Carrying case
USB cable
Transportation cap
Sebecate oil
O rings for liquid storage tank
O rings for right angle connector
Pressure module connection cable
ADT100-762-X
ISO 17025 accredited calibration certificate with data
