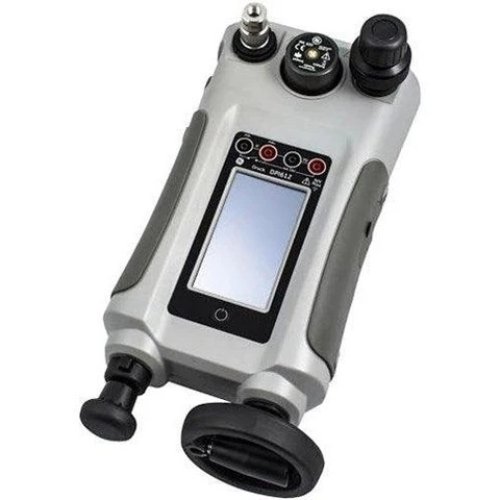

Sale Druck DPI 612 hFlex Pro Pressure Calibrators Max 1000 bar NEW

Druck DPI 612 hFlex Pro Pressure Calibrators Max 100 bar NEW

These fully self-contained pressure test and calibration systems have interchangeable pressure modules for flexible ranging, generate pneumatic or hydraulic pressures, measure process signals and supply loop power. They provide all the convenience of the Druck DPI 610/615 series
with significantly improved generation capabilities, higher accuracy and simplified touch screen operation.

General Specifications:

Maximum working pressure
100 bar / 1500 psi pneumatic

Maximum vacuum
-95% of atmospheric pressure

Pressure media
Non-corrosive gases

Pressure connection
Quick-to-fit connection system. G1/8 female and 1/8 NPT female adaptors are provided

Size and weight
350 mm x 170 mm x 160 mm ( 13.7 in x 6.7 in x 6.3 in) excluding accessories 4.1 kg (9 lb) including battery and pressure module

Generation system
Pressure/vacuum selector, high-efficiency pump, pressure intensifier/fine adjuster, non-return valve, precision release valve

Features :

- The complete pressure calibration tool: pump, measure, analyze
- Best in class pressure accuracy
- Fast and dependable from vacuum to 1000 bar/15000 psi
- Easy to use touch screen
- No in-the-field leaks with quick-to-fit pressure adapters and hoses
- Provided with one free 4Sight2 Lite calibration software license.

Druck DPI 612 flex series

Range flexible pressure calibrators
The Druck DPI 612 Flex series is the fifth generation in the DPI 600 family, which was first introduced in 1984. The DPI 600 family revolutionized test and calibration by providing all the tools for pressure generation and signal measurement in self-contained portable packages. The DPI 600 soon became the industry workhorse and today it is simply known as the “Druck.”

Building on the technical legacy and more than three decades of experience in pressure sensor development and calibration, the DPI 612 Flex series provides all the convenience and reliability of a true “Druck,” yet offers interchangeable pressure modules, higher accuracy and significantly improved pressure generation.

Precision engineering

Performance is a function of precision engineering
The innovative design of the DPI 612 Flex series pressure systems achieves efficient generation and precise control through the use of carefully selected materials with high tolerance machining and perfect finishes.

The choice of case materials and precision molding ensures that DPI 612 Flex are rugged and weatherproof.

State-of-the-art analogue and digital microelectronics contribute both accuracy and processing power to provide a class leading pressure and electrical capability with unique pressure re-ranging and simple-to-use interface.

Dependable and efficient pressure generation

Three model choices to generate from 95% vacuum to 1000 bar/ 15000 psi
- 20 bar/300 psi in 30 seconds
- 100 bar/1500 psi without gas bottles and regulators
- 1000 bar/15000 psi hydraulic pressure

Flexible pressure ranging – swap the module, not the instrument
- Re-range for different applications and expand the system over time
- 31 interchangeable pressure modules from 25 mbar/10 inH20 to 1000 bar/15000 psi
- Accuracy from 0.005% FS• “Hot swap” without tools, seals or cable.

For convenience and to protect your budget, the pressure modules are fully interchangeable between the DPI 612 Flex series and the DPI 620 Genii multi-function calibrator / communicator series.

Leak free, field serviceable pressure connections
- “Quick-to-fit” pressure adapter/hose system requires no tools or sealing

Simple touch screen operation
- Application DASHBOARD, quick TASK selection and FAVOURITES storage
- Fast, three touch set-up for any application
- Calculates PASS/FAIL errors, documents results and interfaces with calibration software

Pressure generation

Quick, effortless and dependable
There are three models in the Druck DPI 612 Flex series to generate pressures from 95% vacuum to 1000 bar/ 15000 psi. Their dependable, high performance pressure systems provide quick and easy generation with great accuracy.

- DPI 612 pFlex: 95% vacuum to 20 bar/300 psi
- DPI 612 pFlexPro: 95% vacuum to 100 bar/1500 psi
- DPI 612 hFlexPro: 0 to 1000 bar/15000 psi

The pFlex pneumatic versions have a simple selector to let you convert from vacuum to pressure and with the high efficiency hand pumps and volume adjusters you can generate accurate pressure quickly and with ease.

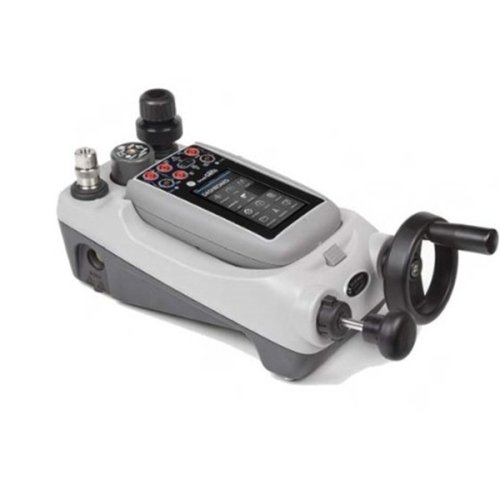

The hFlex hydraulic version has an internal reservoir for hydraulic oil or water, a priming pump to expel air from the connected system and an intensifier to quickly and easily generate pressure.

- They’re fast, 20 bar/300 psi pneumatic or 1000 bar/15000 psi hydraulic in less than 30 seconds
- Generate 100 bar/1500 psi without potentially dangerous bottled gas
- Ergonomic design and a detachable hand/shoulder strap make the DPI 612 Flex equally at home in the field or on a calibration bench
- Proven mechanical designs provide simple-to-use, dependable systems with long service life

Pressure accuracy

Druck technology throughout
Using advanced “Druck” silicon technology from the flagship DPI 620
Genii series, the PM 620 interchangeable pressure modules achieve up to 0.005% FS accuracy.
Taking stability and temperature errors into account over the one year calibration period, the DPI 612 Flex is more than twice as accurate as its predecessor. This is expressed as a total uncertainty to give you complete confidence in the measurement accuracy between annual calibrations

Electrical capability

Just as important as pressure accuracy
The DPI 612 Flex series combines the comprehensive electrical measurement and sourcing capability of the DPI 610 series, with higher accuracy and simplified connections.

Pressure range flexibility

The closest thing to a pressure multi-meter
The DPI 612 Flex utilizes PM 620 interchangeable pressure modules allowing in-field re-ranging to the highest accuracy and most suitable range for any application

- Field interchangeable, automatic detection
- Simple screw fit: no tools, sealing or cables required
- 31 ranges: 25 mbar/10 inH2O to 1000 bar/15000 psi
- Accuracy from 0.005% FS e.g. 0.001 bar/0.015 psi error @ 20
bar/300 psi

The PM 620 is the latest development in digital output sensor technology and incorporates key innovations to allow pressure re-ranging without the need for tools, sealing, cables or user set-up. The modules cost a fraction of fixed range instruments and can be calibrated independently, so you can benefit from reduced inventory, shared resources, lower cost of ownership and less down-time for annual calibration checks.

Pressure range flexibility

The closest thing to a pressure multi-meter
The DPI 612 Flex utilizes PM 620 interchangeable pressure modules allowing in-field re-ranging to the highest accuracy and most suitable range for any application
- Field interchangeable, automatic detection
- Simple screw fit: no tools, sealing or cables required
- 31 ranges: 25 mbar/10 inH2O to 1000 bar/15000 psi
- Accuracy from 0.005% FS e.g. 0.001 bar/0.015 psi error @ 20 bar/300 psi

The PM 620 is the latest development in digital output sensor technology and incorporates key innovations to allow pressure re-ranging without the need for tools, sealing, cables or user set-up. The modules cost a fraction of fixed range instruments and can be calibrated independently, so you can benefit from reduced inventory, shared resources, lower cost of ownership and less down-time for annual calibration checks.

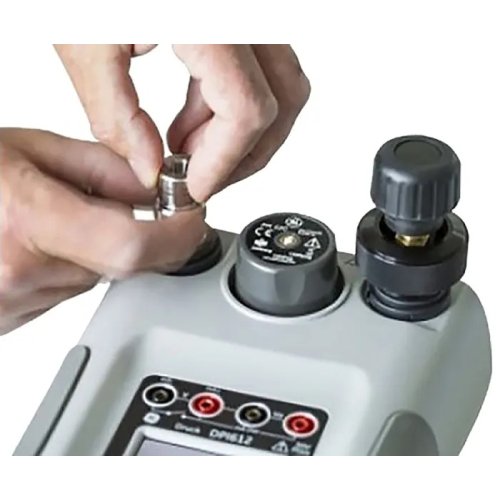

Quick-to-fit pressure connections

No more leaks, service downtime or frustration
Making leak-tight, pressure connections is inevitably frustrating. The DPI 612 Flex series have quick-to-fit adapter and hose systems with time-saving advantages over conventional methods:
- All adapters, hoses and accessories, including the dirt and moisture traps, are quick and simple to fit. No tools or sealing are required and connections are leak free every time.
- A damaged thread on an instrument pressure port often necessitates a costly repair and significant downtime. With the DPI 612 quick-to-fit system damaged adapters are very simply replaced in-the-field.
- Making leak tight connections wastes time and for several joints, it can take longer than a calibration. The DPI 612 Flex system is proven to significantly reduce set-up time.

Simplified touch screen How many key presses to configure your calibrator for the next job?

DPI 612 Flex calibrators have the same user interface design as the unique and award-winning DPI 620 Genii (Measures magazine innovative product of 2014).
- The DASHBOARD allows quick application selection without menus or special keys - just tapn the app.
- The TASK menu provides a library of popular configurations, so from the calibrator screen
three simple gestures will completely reconfigure the DPI 612 Flex for the next job.
- From the FAVOURITES menu it’s even quicker to access regularly used and customized TASKS.
- The touch screen only shows function keys when they’re required, making it quicker and simpler to use than complex keypads with special function keys and key combinations.

Specifications :

Display
Size 110 mm (4.3in) diagonal. 480 x 272 pixels. LCD color display with touch screen

Internal memory
8Gb (nominal) user memory for automated procedures, calibration data and data log files

Languages
English (default), Chinese, Dutch, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish

Pressure units 25 pressure units are available for the user to select (country restrictions may apply)(mbar, bar, Pa, hPa, kPa, MPa, mmHg, cmHg, mHg,
inHg, kgcm2, kgm2, mmH2O, cmH2O, mH2O, torr, atm, psi, lbft2, inH2O@4C, inH2O@20C, inH2O@60F, ftH2O@4C, ftH2O@20C, ftH2O@60C)
Calibration certificates are provided with data in three pressure units based on bar, psi (or inH2O or inHg depending on range) and Pa

Operating temperature
-10 ° to 50 ° C (14 ° to 122 ° F). 0 ° to 40 ° C (32 ° to 104 ° F) when powered from optional mains adapter IO620-PSU. For DPI 612 hFlexPro +4 to
+50°C (39 to 122°F) with water as media

Storage temperature
-20 ° to 70 ° C (-4 ° to 158 ° F). For DPI 612 hFlexPro +4 to +70°C (39 to 158°F) with water as media

Ingress protection
IP 54. Protected against dust and splashing water from any direction

Humidity
0 to 90% RH none condensing. To Def Stan 66-31, 8.6 cat III

Shock / vibration
BS EN 61010-1:2010 / MIL-PRF-28800F CLASS 2. 1 m drop tested

Altitude
Up to 2000m

EMC
BS EN 61326-1:2013

Electrical safety
BS EN 61010-1:2010

Pressure safety
Pressure Equipment Directive - Class: Sound Engineering Practice (SEP)

Enclosure materials
Polycarbonate, polyamide, polypropylene, acrylic, cotton

Approved
CE marked

Power supply
Lithium-ion battery Part number: CC3800GE supplied as standard; Capacity: 3800 mAh 14.1Wh. Nominal voltage: 3.7 V. Charge temperature: 0° to 40°C (32° to 104°F) Discharge temperature: -10° to 60°C (14° to 140°F). Charge/discharge cycles: > 500 > 70% capacity. Battery eliminator / charger (GE part number: IO620-PSU) supplied as standard. Alternatively 8 AA alkaline cells (not supplied)

Battery life
For lithium-ion battery 12 to 26 hours depending on functions
For AA alkaline cells 18 to 26 hours depending on functions

Connectivity
USB type A, USB type mini B
