Sale FARO Focus Premium 200M 3D Laser Scanner NEW

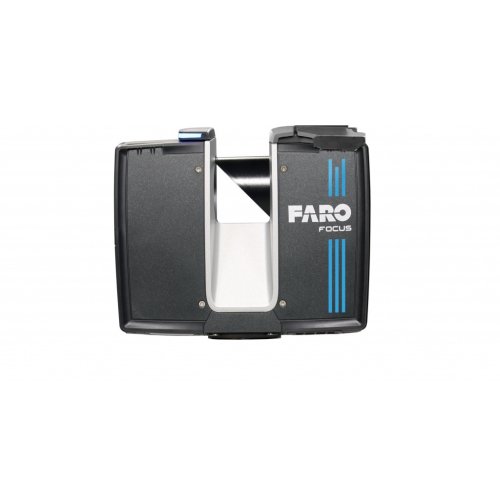

FARO Focus Premium 200M Laser Scanner NEW

Reduce Rework and Save Time
With a 200 m range and the option to scan in Hybrid Reality Capture mode, Focus Premium is perfect for collecting as-built documentation, data for MEP design and installations, construction quality control, structural surveys, and more.

Reduce Wasted Time and Material
Capturing the measurements of a large building or facility with conventional documentation can take days or weeks - and even then, the data might be incomplete. The FARO Focus Premium creates accurate, photorealistic 3D representations of any environment or object in just a few minutes, even in the most extreme outdoors conditions.

No More Scanning Blind
For efficient, comprehensive on-site data capture, Focus Premium connects with the new FARO Stream App, bridging FARO hardware to the cloud. Pre-registration scans are fed directly into the cloud, so jobs can be done more efficiently.

Scan More in Less Time
With the optional panoramic camera mount and one-year Hybrid Reality Capture subscription, you can save up to 2.5 days of scanning for projects that require five scanning days. This saved time allows you to consider taking additional scans that you might not have taken under slower scanning systems, ensuring improved on-site productivity, even more predictable accuracy, and all of it achieved with exceptional colorized visual clarity.

Specifications :

Performance Specifications

Unambiguity Interval
614 m

Range

White, 90% Reflectivity
0.5 – 200 m

Dark-grey, 10% Reflectivity
0.5 – 150 m

Black, 2% Reflectivity
0.5 – 50 m

Range Noise

White, 90% Reflectivity
0.1 mm @ 10 m, 0.2 mm @ 25 m

Dark-grey, 10% Reflectivity
0.3 mm @ 10 m, 0.4 mm @ 25 m

Black, 2% Reflectivity
0.7 mm @ 10 m, 1.2 mm @ 25 m

Max Speed
Up to 2 MPts/sec

3D Accuracy
2 mm @ 10 m, 3.5 mm @ 25 m

Ranging Error
±1 mm

Angular Accuracy
19 arcsec

LaserHDR
Yes

Temperature Range
Operating: +5° to +40° C, Extended Operating: -10° to +55° C, Storage: -10° to +60° C

Additional Performance Specifications

Color Unit

Color Resolution
Up to 266 MPx color

Raw Color Resolution
867 MPx

HDR Camera
13 MPx - 2x, 3x, 5x brackets

Parallax
Minimized due to co-axial design

Deflection Unit

Field of View
300° vertical8 / 360° horizontal

Step Size
0.009° (40,960 Pts on 360°) vertical / 0.009° (40,960 Pts on 360°) horizontal

Max. Scan Speed
97 Hz (vertical)

Laser (Optical Transmitter)

Laser Class
Laser Class 1

Wavelength
1553.5 nm

Beam Divergence
0.3 mrad (1/e)

Beam Diameter at Exit
2.12 mm (1/e)

Data Handling and Control

Data Storage
SATA 3.0 SSD 128 GB and SDXC™ V30 64 GB SD Card; SD3.0, UHS-I / SDXC™ / SDHC™, max. 512 GB

Scanner Control
Via touch screen display and WLAN connection, Control by FARO Stream App (iOS & Android) or mobile devices with HTML5

Interface Connection

WLAN
IEEE 802.11 ac/a/b/g/n 2x2 MIMO, as access point or client in existing networks (2.4 and 5 GHz)

USB
USB 3 port

Additional Features

Dual Axis Compensator
Performs a leveling of each scan with an accuracy of 19 arcsec valid within ±2°

Height Sensor
Via an electronic barometer, the height relative to afixed point can be detected and added to a scan

Compass
The electronic compass gives the scan an orientation

GNSS
Integrated GPS & GLONASS

On-Site Compensation
Creates current quality report and improves compensation automatically

Accessory Bay
The accessory bay connects versatile accessories to the scanner

Inverse Mounting
Yes

Real-time, On-site Registration
Stream App real-time scan streaming, registration, overview map and Sphere cloud upload

Electronic Automation Interface
Available as option, only at point of sale

Digital Hash Function
Scans are cryptographically hashed and signed by the scanner

Rescanning of Distant Targets
Defined areas recaptured in higher resolution at a greater distance

Retake Photos
Select individual photographs with unwanted objects and retake them

General Specifications

Power Supply
19 V (external supply), 14.4 V (internal battery)

Typical Power Consumption
19 W idle, 32 W scanning, 72 W charging

Typical Battery Operation Time
About 4 hours

Typical Scan Time: From start until the scanner can be moved
Gray scale < 1 min | HDR Colored < 1:15 Colored Flash Scan < 30 seconds11

Ingress Protection (IP)Rating Class
54

Humidity
Non-condensing

Weight
4.4 kg (including battery)

Size/Dimensions
230 x 183 x 103 mm

Calibration
Recommended annually

Manufacturer Warranty
2 year

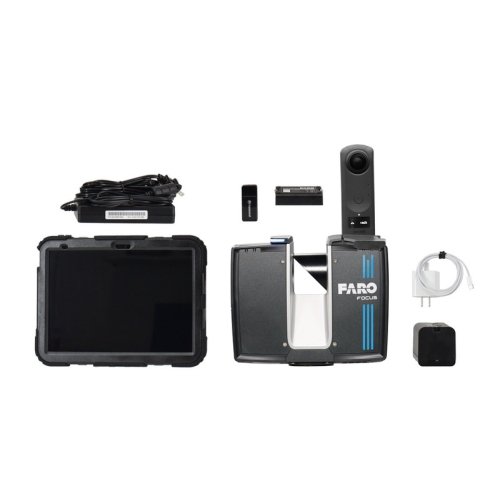

INCLUDED :

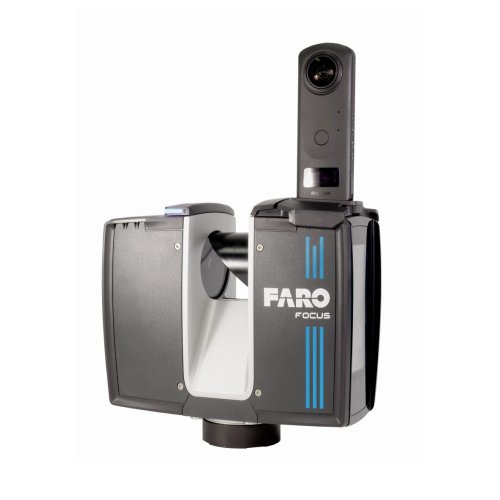

1 Panoramic 360 Camera for Hybrid Reality Capture
1 PanoCam Scanner Mount
1 Flash Technology Perpetual (28 Second Scan)
1 Apple iPad w/ Faro Stream Software & Rugged Case
1 Power Block Rechargeable Scanner Battery
1 Power Dock Battery Charger w/ Power Supply
1 64GB High-Speed SD Card w/ Reader

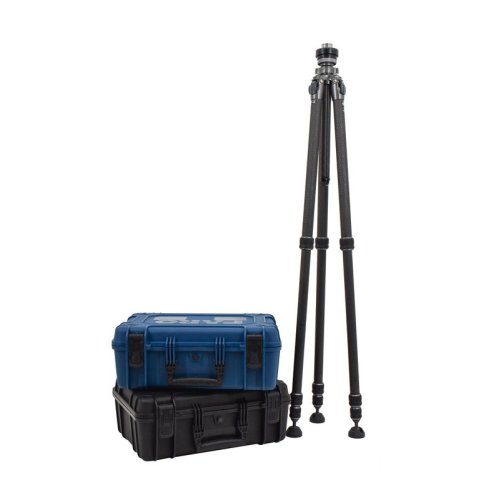

2 Hard Transport Cases

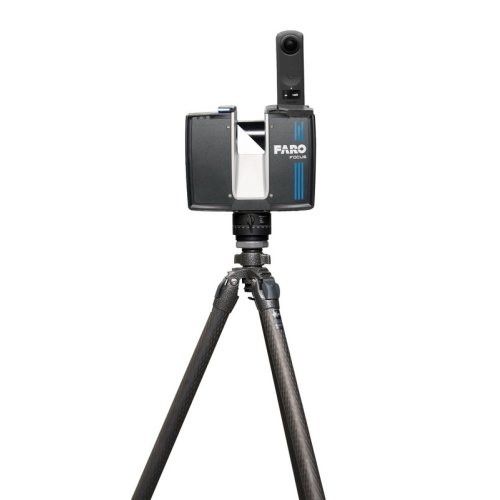

1 Carbon Fiber Scanning Tripod w/ Transport Bag

Also you can check product : Sale FARO Orbis Premium Mobile Laser Scanner NEW

• Availability: 14 In Stock
• Model: Focus Premium 200M
• SKU: FOCUSPREMIUM200M
• Brand:
