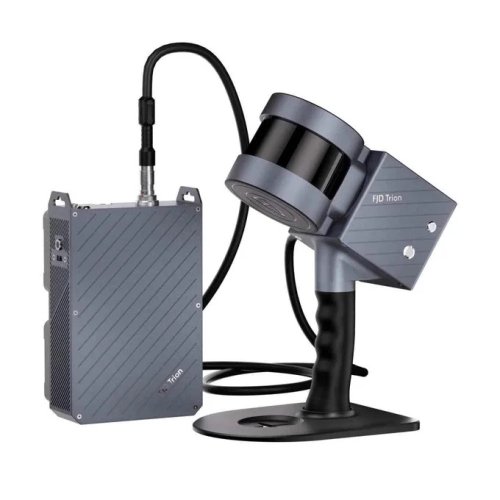

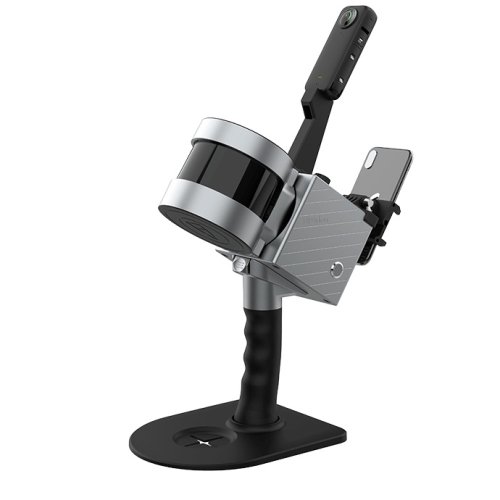

Sale FJD Trion S1 3D Laser Scanner NEW

FJD Trion S1 3D Laser Scanner NEW

A New Way to Scan the World
Powered by a leading SLAM algorithm, the S1 builds your reality as you scan. Capture indoor and outdoor environments as you walk, and view real-time point clouds on your mobile device. See your surroundings come to life with every step, so you don't miss any details.

Advanced Option
Elevate your scanning capabilities with FJD Trion S1 Pro, an advanced version of S1. Building upon the lightweight and portable design of S1, the S1 Pro delivers even greater accuracy and efficiency with its upgraded hardware.

Ready, Set, Scan

Reliable Accuracy
Scan a 100 m²/1,000 sq ft area in just 2 minutes, and achieve 2 cm of relative accuracy with post-processed reconstruction models.

Long-Range Measurement
Featuring a built-in LiDAR 3D scanning technology, the S1 allows you to capture precise measurements of complex objects and shapes in various dimensions and generate 3D models in one scan.

Complete Point Cloud Solution

FJD Trion Scan
Real-time point cloud visualization software
Enhance your scanning experience with the FJD Trion Scan software. This real-time visualization tool can help you monitor the scanning process thus ensure a complete data capture in one scan.

FJD Trion Model
Point cloud processing software
FJD Trion Model is a PC-based point cloud processing solution that enables denoising, colorization, and classification. Industry-specific modules empower quick and seamless results for like floor plan generation for construction, volume calculation for tunnels, and tree segmentation for forestry.

Dual Battery for Non-stop Missions
With its hot-swappable dual batteries, the S1 ensures uninterrupted power supply. Get 4 hours of work with both batteries.

Explore Multiple Configurations
Use FJD Trion S1 in indoor, outdoor and underground environments, even in the sky with drones, as it is lightweight and portable.

Specifications :

Range
120 m @ 90% reflectivity
80 m @ 10% reflectivity

Sensors
16
32 (S1 Pro)

Laser Class
Class 1/λ 905 nm

Vertical Angular Resolution
2°

FOV
360° × 270°

Horizontal Angular Resolution
0.36°

IP
IP54

Relative Accuracy
2 cm

Processing
Real-Time

Carrier
Handheld, Backpack or shoulder strap

Datalogger weight
2.2 kg

Battery life (Dual batteries)
4 h

Scanner Weight
1.8 kg

Storage Capacity
512 GB

Points Per Second
320,000
640,000 (S1 Pro)

Camera

Camera Type
360° Panoramic Lens

FOV
360°

Data Format
insv

Photo Resolution
72 million pixels (11968x5984)
18 million pixels (5952x2976)

Video Resolution
5.7K: 5760x2880@30fps

Dimension
46.0×114.0×33.1mm

Storage Capacity
128 GB (Maximum Expansion IT)

Weight
180g

Power Supply
S1/Camera Battery

Working Temperature
-20℃ ~ 40℃

FJD Trion V1t RTK Rover

Satellite Constellation Supported
GPS, BDS-2, BDS-3, GLONASS,
Galileo, QZSS, SBAS, IRNSS

Channels
965

RTK Format
GGA, ZDA

RTK Frequency
1-10 hz

Communication
RS232

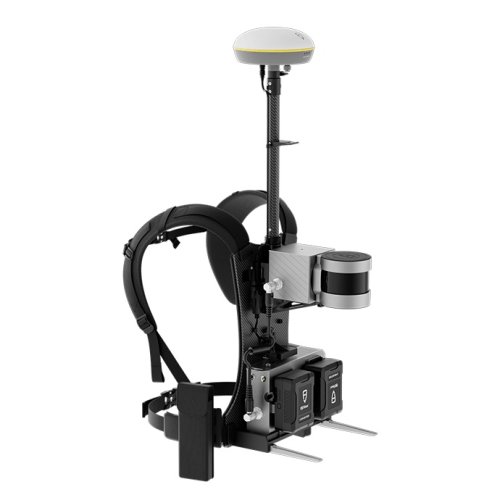

Backpack

Weight
8.2kg (Including S1 and V1t RTK Rover)

Dimensions
310 × 240 × 810 mm

INCLUDED :

Standard Bundle with EXTRA ITEMS (marked on blue)  only at our shop
S1 3D SLAM SCANNER
Android Smartphone or Tablet as you wish
Smartphone Bracket,
Car Bracket,
Shoulders Strap Bracket
GNSS receiver NANO GGS v2 IMU
LED LAMP
Battery & charger

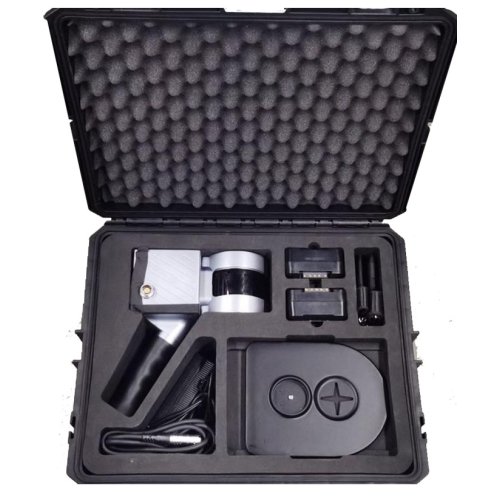

Hard Rugged Carrying Case
EU and US charger
base for GCP measure
PC Software FJD TRION MODEL
ANDROID APP
USB stick with manuals, software installations,
Calibration test
Mounting accesories
Fast USB-Chargers
