Sale Leica BLK2GO PULSE Handheld First Person laser scanner NEW

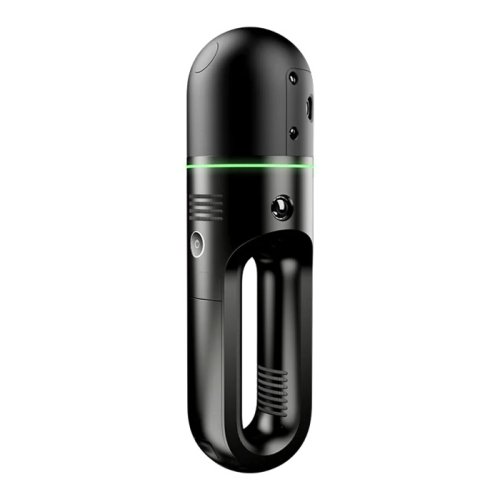

Leica BLK2GO PULSE Handheld First Person laser scanner NEW

Capture What You See
The BLK2GO PULSE is designed to capture indoor spaces. Create 3D digital twins and 2D floorplans or elevations in no time.

For applications that require up-to-date dimensions and visualization, the BLK2GO PULSE is an ideal tool for quick, easy laser scanning.

A Unique Perspective
The BLK2GO PULSE streams data from the scanner’s sensors straight to your smartphone so you see what the scanner sees.

Aim the BLK2GO PULSE at any area you want to scan and capture colorized 3D point clouds instantly. Then work with and share your data right away on your smartphone.

Intuitive Technology
The BLK2GO PULSE enables an intuitive, fast, and simple on-site dynamic scanning workflow. Capture scenes with an immersive, first-person visual UX on the BLK Live app, as easy as taking a video on a smartphone.

With PULSE Technology – a unique fusion of GrandSLAM with dual Time-of-Flight (ToF) LiDAR sensors created in collaboration with Sony-the BLK2GO PULSE captures uniform point clouds and colorizes them instantly with no post-processing required.

Instant Data
The BLK2GO PULSE delivers data that is ready to use, share, and export or upload to the cloud immediately after capture.

Upload your data to Reality Cloud Studio, powered by HxDR, our cloud-based visualization, collaboration, and storage application for real-time automated registration and meshing.

Specifications :

DESIGN & PHYSICAL

HOUSING:
Black anodized aluminium and rubber cover

Dimensions:
Height: 282 mm / Diameter: 80 mm

Weight:
750 g (850 g including battery)

Transport cover:
BLK2GO PULSE transportation case

OPERATION

Stand-alone operation:
One-button operation

Mobile device

BLK Live app for iOS and Android including:

- Live 2D and colorized 3D view

- Colorized first-person view while and after scanning

- Smart sensor feedback & guidance

- Device status & remote control

- Data export: .e57, .jpg, .csv

- Direct data upload to Reality Cloud Studio powered by HxDR

Android 10.0 or higher on 64-bit ARM architecture with 64-bit operating system and at least 4GB of RAM.
Recommended devices: Samsung Galaxy S22, S23 series. iOS16 or higher with 64-bit operating system and at least 4GB of RAM.
Recommended devices: iPhone 12, 13, 14, 15 series

Communication:
Wireless (app connection)

Internal memory:
40 hours of scanning (compressed data)
20 hours of scanning (uncompressed data)

Internal Storage:
256 GB

Battery:
Exchangeable, rechargeable Li-Ion battery (Leica GEB821) 40-45 minutes

SCANNING & IMAGING

Time-of-Flight LiDAR

No. of sensors:
2

Field of view:
210° (horizontal) / 85° (vertical)

Spatial resolution:
7,816 laser spots

Framerate:
5 fps

Scan pattern:
Homogeneous hexagonal grid

Measurement range:
Min. 0.5 - up to 10 m

Laser class:
1

Wavelength:
940 nm (invisible)

High resolution camera

No. of cameras:
1

Field of view:
90° (horizontal) / 120° (vertical)

Resolution:
12 Mpixel

Panoramic vision system

No. of cameras:
3

Field of view:
300° (horizontal) / 135° (vertical)

Resolution:
4.8 Mpixel

SYSTEM PERFORMANCE (GRANDSLAM-BASED)

Range noise
Real-time:
+/- 15 mm

Post-processed:
+/- 5 mm

Accuracy indoor ***
+/- 2 cm

ENVIRONMENTAL

Robustness:
Designed for indoor use

Operating temperature:
0 to +40 °C

Dust & humidity protection:
IP54 (IEC 60529)

DATA PROCESSING

Data transfer:
Wireless and USB 3.0

Desktop software:
Leica Cyclone REGISTER 360 PLUS and Cyclone REGISTER 360 PLUS (BLK Edition)

Cloud software:
Reality Cloud Studio, powered by HxDR

INCLUDED :

Transportation Case
Li-Ion Battery x3
Multicharger
Mobile Device Mount
Mobile Device Mount Cap
USB C Cable
Table Stand
Wrist Strap
Quick Guide
USB Documentation Card
Laser Scanner CCP Basic 1yr
Reality Cloud Studio

Also you can check product : Sale Leica BLK360 SE Essentials Imaging Laser Scanner NEW

• Availability: 29 In Stock
• Model: BLK2GO PULSE
• SKU: 062-BLK2GOPULSE
