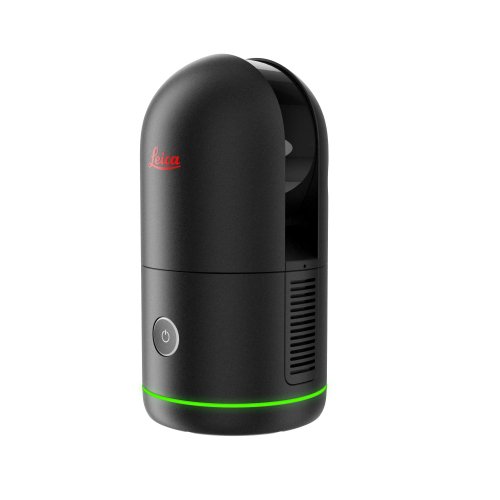

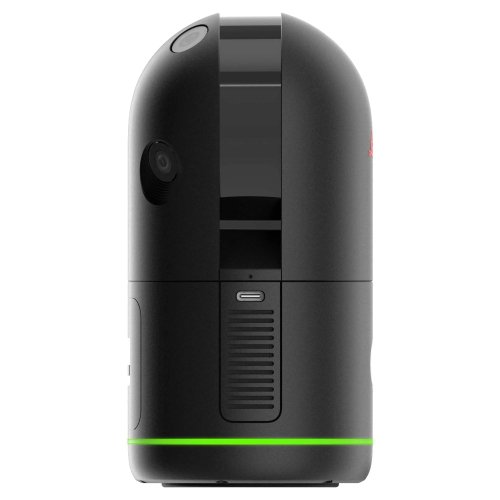

Leica BLK360 Imaging Laser Scanner NEW

The Leica BLK360 is an advanced precision imaging laser scanner. At the push of a button, users can capture a full scan with spherical images in only twenty seconds. Blaze through job sites with best-in-class rapid scanning that doesn’t compromise on quality, while the Visual Inertial System (VIS) Technology automatically combines your scans on-site to speed up your workflow and help you make sure your datasets are complete. The BLK360 enables users to work faster and smarter while getting the data they need immediately.

BLK360 data is valuable for many uses, from traditional AEC to mind-bending VFX and VR, and users can easily transfer and work with it in your software ecosystem to create immersive and highly accurate deliverables and experiences.

Key features:
Four scan settings capture data in 7, 13, 30, or 75 seconds at 680,000 points per second
Rich High-Dynamic Range (HDR) imagery with 5 bracket HDR
Small and light, measuring 155x80mm and weighing just 850g with batteries
20 seconds for a full-dome scan with photospheres
Visual Inertial System (VIS) automatically pre-registers scans in the field
High-speed data transfer via USB-C and Wi-Fi
Users can control the imaging laser scanner with the Leica Cyclone FIELD 360 mobile-device app and easily pre-register captured scans enabled by the VIS technology. Image and point cloud data is streamed to a smartphone or tablet or final project data to Leica Cyclone REGISTER 360 PLUS or Cyclone REGISTER 360 PLUS (BLK Edition) via Wi-Fi, with full data synchronisation between devices. With automated workflows in both software offerings, the BLK360 dramatically streamlines the reality capture process. Simple export of LGS, RCP, or E57 files makes working with point cloud data downstream simple and efficient, allowing users to spend less time processing data and more time creating meaningful deliverables.

The BLK360 also includes a free companion app, BLK Live, allowing the user to control the imaging laser scanner and immediately view captured data for on-site feedback, quality assurance, quality control, and export E57 files. Available for iOS and Android.

The BLK360 also makes it easy to get your data into your preferred software and to share your scans with others. Directly upload your data to Reality Cloud Studio, powered by HxDR with cloud-based visualisation, collaboration and processing, allowing others to work with and download your data. Or transfer your data to Cyclone REGISTER 360 PLUS or export to E57 via USB-C or WLAN for Scan-to-BIM workflows.

BLK Live App

The BLK360 includes a free companion app, BLK Live, allowing the user to control the imaging laser scanner and immediately view captured data for on-site feedback, quality assurance, and quality control. Available for iOS and Android.

Leica Cyclone REGISTER 360 Subscription 

REGISTER 360 is a simplified version of Leica Geosystems Cyclone REGISTER that features an intuitive UI, guided workflows, and an easy process for sharing data downstream with more advanced tools like JetStream and TruView. Or export your cloud as a standard E57 file or Autodesk's native RCP file format.  

Get started out of the box

To work with point cloud data on your computer, users can use the BLK Live app to export E57 files or subscribe to Leica Cyclone REGISTER 360 (Regular or BLK Edition). Cyclone REGISTER 360 BLK Edition is optimized for the BLK360 and provides streamlined workflows to assist new users and speed up the process for experienced users.   

Software options for every kind of project

For larger projects or existing Cyclone users, Leica Geosystems Cyclone REGISTER 360, the BLK Live app, and Cyclone FIELD 360 are also available to help register your scans together and view scan data and imagery in real-time. 

Specifications :

GENERAL

Imaging scanner    3D scanner with integrated highspeed HDR spherical imaging system and Visual Inertial System (VIS) for real-time pre-registration

DESIGN & PHYSICAL

Housing
Black anodized aluminium

Dimensions
Height: 155 mm / Diameter: 80 mm

Weight
0.75 kg (0.85 kg incl. battery)

Transport cover
GVP739 Transportation cover

Mounting mechanism
Button-press quick release

OPERATION

Stand-alone operation
One-button operation

Mobile devices
BLK Live app for iOS and Android smartphones. Leica Cyclone FIELD360 app for iOS and Android tablet computers and smartphones

Wireless communication
Integrated wireless LAN (802.11 b/g/n)

Internal memory
Storage for up to 1500 setups

Instrument orientation
Upright and upside down

POWER

Battery type
Internal, rechargeable Li-Ion battery (Leica GEB825)

Capacity
Up to 70 setups per battery

SCANNING

Distance measurement system
High speed time of flight enhanced by Waveform Digitizing (WFD) technology

Laser class
>1 (in accordance with IEC 60825-1:2014)

Wavelength
830 nm

Field of view
360° (horizontal) / 270° (vertical)

Range
min. 0.5 m - up to 45 m

Point measurement rate
up to 680.000 pts/sec

Measurement modes
4 user selectable resolution settings (6/12/25/50 mm @ 10 m)

IMAGING

Camera System
13 Mpixel 4-camera system captures 104 Mpx raw data for calibrated 360° x 270° spherical image

Speed
< 8 sec. for full spherical LDR image at any light conditions
< 20 sec. for full spherical 5-brackets HDR image at any light conditions

PERFORMANCE

Data acquisition
< 20 sec. for complete full dome scan and spherical LDR image at 50 mm @ 10 m resolution with automatic tilt measurements

3D point accuracy
4 mm @ 10 m

Real time pre-registration
Automatic point clout alignment based on real time tracking of scanner movement between setups based on Visual Inertial System (VIS) by video-enhanced inertial measurement unit

ENVIRONMENTAL

Robustness
Designed for indoor and outdoor use

Operating temperature
0° C to 40° C

Dust/Humidity
Solid particle/liquid ingress protection IP54 (IEC 60529)

DATA ACQUISITION

Data transfer
Wireless and USB 3.0

Desktop software
Leica Cyclone REGISTER 360 and Cyclone REGISTER 360 (BLK Edition)

Cloud software
HxDR Digital Reality: cloud-based digital reality platform

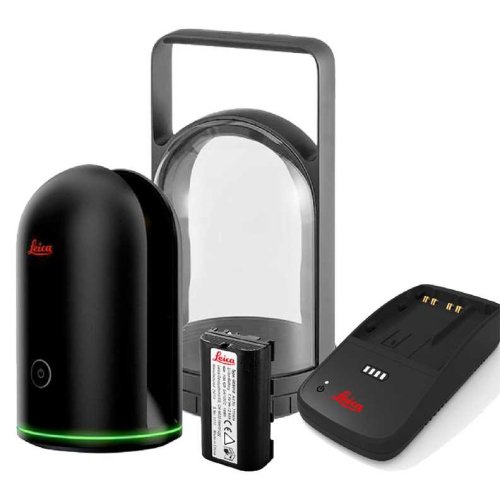

INCLUDED :

BLK360 Laser Scanner
3x Batteries
Multicharger
Transportation Case
USB-C Cable
Microfiber cloth
Documentation
BLK live app .e57 single scan export

DATASHEET Leica BLK360

• Availability: 29 In Stock
• Model: BLK360
• SKU: 062-BLK3602061256
