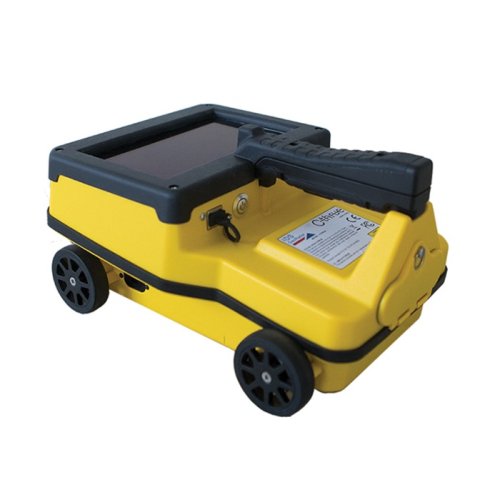

Leica IDS C-thrue Concrete Scanner NEW

C-thrue is an all-in-one Ground Penetrating Radar (GPR) for accurate scanning and real time analysis of concrete structures. Construction and service companies as well as civil and structural engineers can now improve the way they locate rebars, voids, post-tension cables, cavities, conduits, and any other objects buried in the structure before cutting or drilling into the concrete.

C-thrue is an easy-to-use and robust solution to see through concrete structures and reveal true data that lead to optimal decision-making. The solution is suited for all construction sites and operations including building renovation, overpasses, monuments, bridges and tunnels surveys, as well as for detailed analysis of the original engineering project and comparison with the as-built structure.

C-thrue offers more flexibility with no limitations for your analysis requirements, thanks to a compact and light telescopic pole and an external controller that can be easily transported on site in challenging locations or conditions (e.g. under a deck, along vertical walls, etc...).

The C-thrue external controller allows easier and faster data interpretation thanks to real-time data processing and representation of results in Augmented Reality for more efficient decision-making.

Features and Benefits:

Clearer and faster surveys
Detection of both first and second levels of rebars thanks to the system’s double polarisation.

Safe drill in the surveyed structure
Rebar/void automatic insight capabilities that improve safety before cutting or drilling into the concrete.

Fully visible, multi-touch display
Data displayed on the screen are never obscured by the handle or the user’s hand.

Simplified data interpretation
Optimal decision-making supported by visualization of acquired data in 3D models.

Increased data accuracy
Eliminate manual, error-prone paper grids with an automatic positioning and navigation system.

Advanced data visualization
Augmented reality for 3D data visualization and sharing across operators – in real time or intervals after acquisition.

Automated data acquisition and analysis
Automatic detection of the first layer of rebars and result exportation.

Flexibility everywhere
Lightweight, compact, drop resistant and transportable system for every user operations and construction sites.

Specifications :

Antenna Center Frequency
2.0GHz

Number of Antennas
4

Antenna Polarisation
Horizontal and Vertical

Number of Radar Channels
2

Scan Interval
Up to 10 scans/cm

Depth Range
Up to 80cm (up to 31.5in.)

Display Modes
B-scan and C-scan (radar tomography)

Positioning System
"Virtual Pad" (based on 3 High safety - Class 1 laser sensors with reflective bars)

AC Power Conduits Detection
EM Sensor Integrated (50/60 Hz)

Battery
Li-ion Battery, 15V, 3.2Ah, 3-hour runtime

Data Storage
32GB

Connectivity
USB, Wi-Fi

Mechanical Specifications

Dimensions (Length X Width X Height)
285mm X 200mm X 160mm (11.2in X 8.6in X 6.3in)

Weight
2.4kg (5lb) with battery

Display
7.0 inches TFT multi-touch

Environmental Specifications

Operating Temperature
-20°C to +50°C (-4°F to +122°F)

Storage Temperature
-40°C to +60°C (-40°F to 140°F)

Environmental
IP65

Software Specifications

C-Thrue Software
Quick Start-up
Real time radar data acquisition, processing and visualization in B-Scan
Real time feature marking, management and editing tool
Rebar/Void automatic discrimination
VirtualPad - Positioning and navigation system
Visualization of C-scan (radar tomography)
Real time diagnose of radar and the other devices
Metric and imperial units
Availble in more than 20 languages
First rebar layer automatic detection
Automatic job reports
Real time Power conduit sensing display

INCLUDED:

3 x Batteries
1 x Charger
1 x Carry Case
6 x Reflector Grids
1 x Paper Grid
