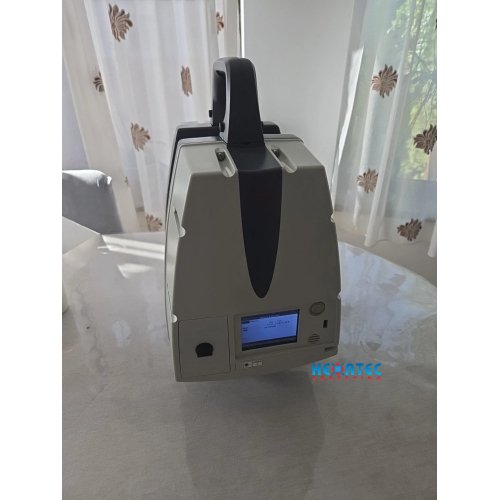

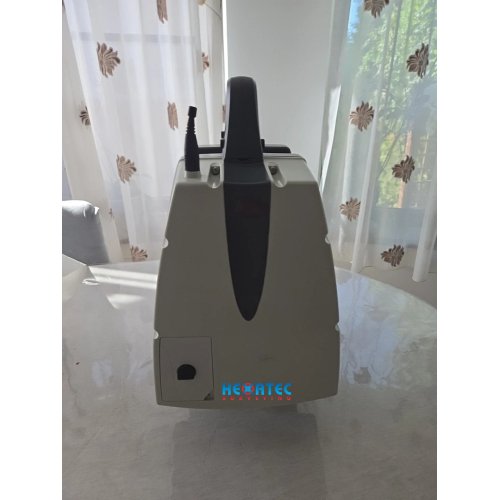

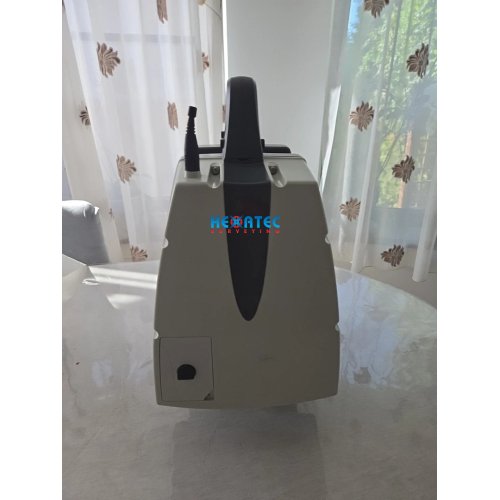

Leica ScanStation P50 Long Range 3D Terrestrial Laser Scanner USED

For industry professionals looking to scan inaccessible places and find new business opportunities, Leica ScanStation P50 is the fastest and safest, long range 3D laser scanner. Unlike any other laser scanner, the P50 solution maximises productivity by scanning inaccessible places at a safe position on site, reducing time in the field with less setups.

As part of the Leica Geosystems 3D Reality Capture solution, the Cyclone FIELD 360 app links the 3D data acquisition in the field with the ScanStation P50 laser scanner and final data registration in the office with Cyclone REGISTER 360. One-site, users can now automatically capture, register and examine scan and image data.

The right choice
Whether you 3D capture the world’s tallest buildings, document the widest infrastructure objects or scan the biggest open pit mines, you know long range scanning will be essential for your job. Adding long range scanning capability to the market leading ScanStation P-series, the new Leica ScanStation P50 is the right choice, because every detail matters.

High performance
The extremely durable new Leica ScanStation P50 performs even under the toughest environmental conditions, such as under extreme temperatures ranging from -20°C to + 50°C and complies with the IP54 rating for dust and water resistance.

Scan inaccessible places
The Leica ScanStation P50 delivers highest quality 3D data and HDR imaging at an extremely fast scan rate of 1 mio points per second at ranges of > 1 km. Unsurpassed range and angular accuracy paired with low range noise and survey-grade dual-axis compensation form the foundation for highly detailed 3D colour point clouds mapped in realistic clarity.

Complete scanning solution
Leica Geosystems offers the new Leica ScanStation P50 as an integrated part of a complete scanning solution including hardware, software, service, training and support. 3D laser scanner data can be processed in the industry’s leading 3D point cloud software suite, which consists of Leica Cyclone stand-alone software, Leica JetStream, Leica CloudWorx plug-in tools for CAD systems and the cost-free Leica TruView.

Leica ScanStation P50 delivers:

Highest quality 3D data and HDR imaging
Extremely high-speed scan rate of 1 mio points per second
Ranges of up to 1 kilometre
Low range noise
Survey-grade dual-axis compensation

Specifications :

SYSTEM ACCURACY

Range accuracy
1.2 mm + 10ppm over full range (120 m / 270
m mode) 3 mm + 10ppm over full range (570 m / >1 km mode)

Angular accuracy
8” horizontal; 8” vertical

Target acquisition **
2mm standard deviation at 50m

Dual-axis compensator
Liquid sensor with real-time onboard compensation, selectable on/off, resolution 1”, dynamic range ±5’, accuracy 1.5”

DISTANCE MEASUREMENT SYSTEM

Type
Ultra-high speed time-of-flight enhanced by Waveform Digitising (WFD) technology

Wavelength
1550nm (invisible) / 658nm (visible)

Laser class
1 (in accordance with IEC 60825:2014)

Beam divergence
< 0.23mrad (FWHM, full angle)

Beam diameter at front window
≤ 3.5mm (FWHM)

Range and reflectivity Minimum range 0.4 m

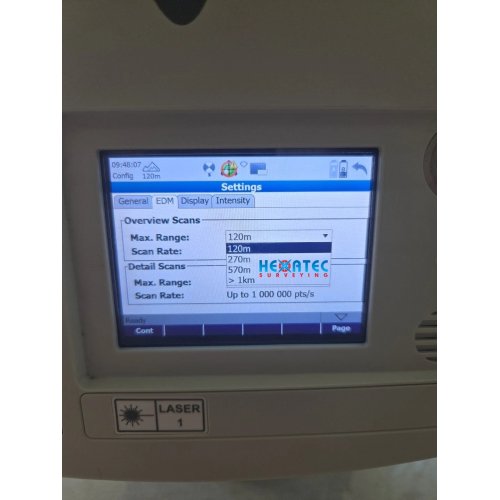

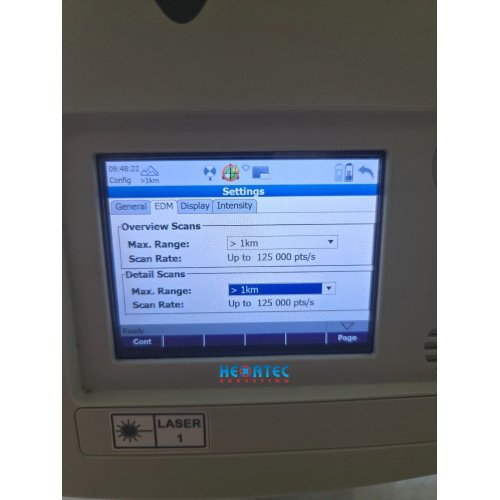

Maximum range mode Reflectivity
120 m ( 8% )
270 m ( 34% )
570 m ( 60% )
>1 km (  80% )

Scan rate
 Up to 1,000,000 points per second

Range noise *
0.4mm rms at 10m
0.5mm rms at 50m

Field-of-View
Horizontal 360°
Vertical 290°

Data storage capacity
256GB internal solid-state drive (SSD) or external USB device

Communications / Data transfer
Gigabit Ethernet, integrated Wireless LAN or USB 2.0 device

Onboard display
Touchscreen control with stylus, full colour VGA graphic display (640×480 pixels)

Laser plummet
Laser class 1 (IEC 60825:2014)
Centring accuracy: 1.5mm at 1.5m
Laser dot diameter: 2.5mm at 1.5m
Selectable ON/OFF

IMAGING SYSTEM

Internal camera
Resolution
4 MP per each 17°×17° colour image; 700 MP for panoramic image

Pixel size Video
2.2µm Streaming video with zoom; auto-adjusts to ambient lighting

White balancing HDR
Sunny, cloudy, warm light, cold light, custom Tonemapped / full range

External camera
Canon EOS 60D/70D/80D/90D supported

POWER

Power supply
24 V DC, 100 – 240 V AC

Battery type
2× Internal: Li-Ion; External: Li-Ion (connect via external port, simultaneous use, hot swappable)

Duration
Internal > 5.5h (2 batteries)
External > 7.5h (room temp.)

ENVIRONMENTAL

Operating temperature
-20°C to +50°C / –4°F to +122°F

Storage temperature
-40°C to +70°C / –40°F to +158°F

Humidity
95%, non-condensing

Dust/Water
Solid particle/liquid ingress protection IP54 (IEC 60529)

PHYSICAL

Scanner

Dimensions (D×W×H)
238mm × 358mm × 395mm / 9.4” × 14.1” × 15.6”

Weight
12.25kg / 27.0lbs, nominal (w/o batteries

Battery (internal)

Dimensions (D×W×H)
40mm × 72mm × 77mm / 1.6” × 2.8” × 3.0”
Weight
0.4kg / 0.9lbs

Mounting
Upright or inverted

CONTROL OPTIONS

Full colour touchscreen for onboard scan control.
Remote control: Leica CS10/CS15/CS20/CS35 controller or any other remote desktop capable device, including iPad, iPhone and other SmartPhones; external simulator.

Leica Cyclone FIELD 360 with tablet and SmartPhone (iOS and Android).

Leica Cyclone FIELDWORX with Windows Surface tablet

FUNCTIONALITY

Survey workflows and onboard registration
Quick orientation, Set azimuth, Known backsight, Resection (4 and 6 parameters), Traverse

Check & Adjust
Field procedure for checking of angular parameters, tilt compensator and range offset

Onboard target acquisition
Target selection from video, scan or red laser beam

Onboard user interface
Switchable from standard to advanced

One button scan control
Scanner operation with one button concept

Scan area definition
Scan area selection from video or scan; batch job scanning

Double scan
Automatic removal of point cloud noise introduced by moving objects

INCLUDED :

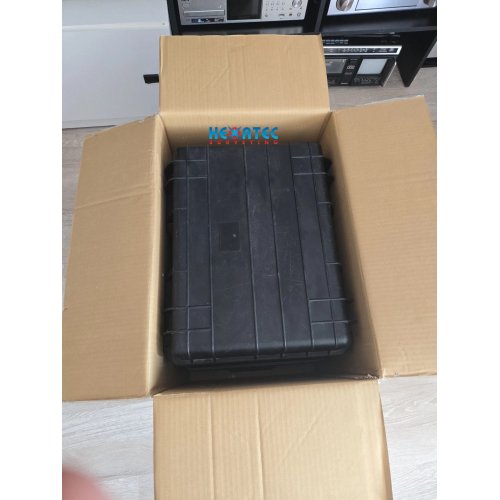

Leica GVP645 Transport Box (769625)
Leica GDF323 Tribrach without Optical Plummet (777970)
Leica GEB242 Li-Ion Battery (793975)
Leica GKL311 Single Charger (799185)
Leica GEV228 Data Cable (766567)
Leica GHM008 Scanner Height Meter (772829)
Leica GHT196 Distance Holder for Height Meter (722045)
Leica ScanStation P50/P40/P30 Quick Guide
Leica ScanStation P50/P40/P30 System USB Stick
Leica 1 year CCP Basic Contract (6009442)
