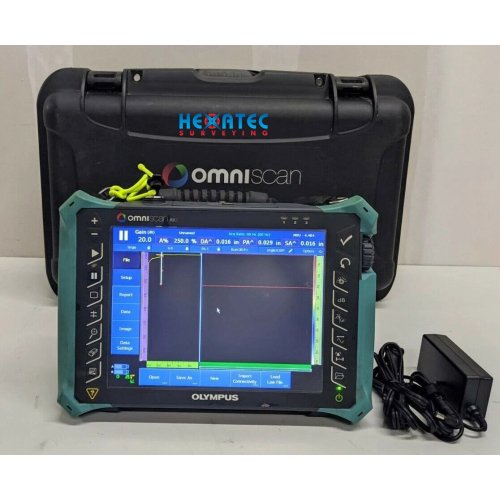

Olympus OmniScan MX2 32:128 Ultrasonic Flaw Detector USED

Building on a Solid Basis
This second generation OmniScan MX2 increases testing efficiencies, ensuring superior manual and advanced AUT application performance with faster setups, test cycles, and reporting, in addition to universal compatibility with all phased array and ultrasound modules: past, present and future. Designed for NDT leaders, this high-end, scalable platform delivers true next-generation NDT performance.

The OmniScan MX2 offers a high acquisition rate and new powerful software features for efficient manual and automated inspection performance-all in a portable, modular instrument.

Faster Is Better!

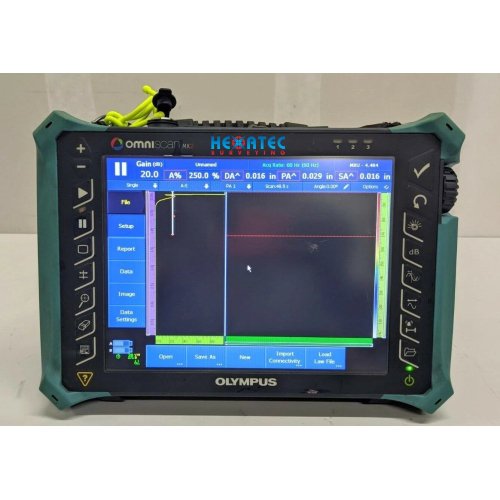

Powerstart your day the right way with the OmniScan MX2. The OmniScan MX2 simplifies and speeds up the setup process with its intuitive Weld Overlay software feature, so you can start testing immediately. Featuring the industry-standard phased array user interface with faster-than-ever performance, a bigger and brighter 10.4 inch screen, new and unique intuitive touch-screen capabilities, and faster data transfer, enabling you to get to your next inspection quicker.

More than an Instrument -A Solution Provider
The OmniScan MX2 is an important part of your inspection solution, and can be combined with other critical components to form a complete inspection system. Olympus offers a complete product range that includes phased array probes, scanners, analysis software, and accessories, all of which are integrated and packaged into rapidly deployable, applicationspecific solutions for quick returns on your investment. In addition, Olympus offers a high-quality calibration and repair service worldwide, that is backed by a team of phased array application experts to ensure that you get the support you need.

Weld Inspection of Small-Diameter Pipes
When coupled with the COBRA manual scanner, the OmniScan flaw detector is capable of inspecting pipes ranging from 0.84 inch OD to 4.5 inch OD. With its very slim design, this manual scanner is able to inspect pipes in areas with limited access.

Pressure Vessel Weld Inspection
A complete inspection of pressure vessel welds can be performed manually, or in a single scan using an OmniScan and a scanner for a turnkey solution. Inspection results are available immediately, enabling you to detect problems with welding equipment and fix them right away

Composite Inspection
Olympus offers complete solutions for the inspection of carbon-fiberreinforced polymer structures. These solutions are based on the OmniScan flaw detector, the GLIDER™ scanner, and dedicated probes and wedges designed for CFRP flat panel and radius inspection.

Corrosion Mapping Inspection
The OmniScan PA system with the HydroFORM scanner is designed to offer the best inspection solution for the detection of wall-thickness reductions resulting from corrosion, abrasion, and erosion. For this application, phased array ultrasound technology offers superior inspection speed, data point density, and detection.

Specifications:

Overall dimensions (W x H x D)
325 mm x 235 mm x 130 mm (12.8 in. x 9.3 in. x 5.1 in.)

Weight
3.2 kg (7 lb), no module and one battery

Data Storage

Storage devices
SDHC card, most standard USB storage devices, or fast Ethernet

Data file size
300 MB

I/O Ports

USB ports
3

Speaker out
Yes

Video output
Video out (SVGA)

Ethernet
10/100 Mbps

I/O Lines

Encoder
2-axis encoder line (quadrature, up, down, or clock/ direction)

Digital input
4 digital TTL inputs, 5 V

Digital output
4 digital TTL outputs, 5 V, 15 mA

Acquisition on/off switch
Remote acquisition enabled TTL, 5 V

Power output line
5 V, 500 mA power output line (short-circuit protected)

Alarms
3 TTL, 5 V, 15 mA

Analog output
2 analog outputs (12 bits) ±5 V in 10 kΩ

Pace input
5 V TTL pace input

Display

Display size
26.4 cm (10.4 in.) (diagonal)

Resolution
800 pixels x 600 pixels

Brightness
700 cd/m2

Number of colors
16 million

Type
TFT LCD

Power Supply

Battery type
Smart Li-ion battery

Battery life
Minimum 7 hours with two batteries

Environmental Specifications

Operating temperature range
-10 °C to 45 °C (14 ºF to 113 ºF)

Storage temperature range
-20 °C to 60 °C (-4 ºF to 140 ºF) with batteries
-20 °C to 70 °C (-4 ºF to 158 ºF) without batteries

Relative humidity
Max. 70% RH at 45°C noncondensing

Ingress Protection Rating
IP54

Shockproof rating
Drop-tested according to MIL-STD-810G 516.6

Phased Array Module Specifications (Applies to OMNI-M-PA16128)

Voltage
Low: 40 V
High: 80 V

Pulse width
Adjustable from 30 ns to 500 ns; resolution of 2.5ns

Fall time
<10 ns

Pulse shape
Negative square pluse

Output impedance
<25 ohms

Receiver

Gain range
0 dB to 74 dB, maximum input signal 1.32 Vp-p

Input impedance
75 Ohms

System bandwidth
0.75 MHz to 18 MHz (-3 dB)

Beam formation

Scan type
Sectorial and linear

Aperture
16 elements

Number of elements
128 elements

Number of focal laws
256

Delay range transmission
0 us to 10 us in 2.5 ns increments

Delay range recetption
0 us to 10 us in 2.5 ns increments

Acquisition Specifications

Frequency

Digitizing frequency
100 MHz (10 Bits)

A-scan (acquisition mode)
Up to 6000 A-scans per second (512-point, 8-bit A-scan)

Maximum pulsing rate
Up to 10 KHz (C-scan)

Depth in material
59.8 meter in steel (longitudinal wave), 10 ms in with compression
0.49 meter in steel (longitudinal wave), 81.9 us without compression

Display

Refresh rate
A-scan: 60 Hz; s-scan: 20 Hz to 30 Hz

Envelope (echo-dynamic mode)
Yes: Volume-corrected S-scan (30 Hz)

Synchronization

On internal clock
1 Hz to 10 kHz

External pace
Yes

On encoder
on 2 Axes: from 1 step to 65536 steps

Data Specifications

Number of data points
Up to 8000

Real-time averaging
2, 4, 8, and 16

Rectification
RF, full wave, half wave+, half wave-

Filtering
Low-pass (adjusted to probe frequency), digital filtering (bandwidth, frequency range)

Video filtering
Smoothing (adjusted to the probe frequency range)

Programmable TCG

Number of points
16: one TCG(time-corrected gain) curve per channel for focal laws

Storage

A-scan recording
6000 A-scans per second (512-point, 8-bit A-scan)

C-scan recording
I, A, B, up to 10 kHz

Maximum file size
Limited to available internal flash memory; OmniScan MX2: 300MB

INCLUDED :

Battery
AC Adapter/Charger
Power Cord
Accessory Cable
User Manual On CD-ROM
Hard Carrying Case (G)
