Proceq Equotip 550 Portable Rockwell Hardness Tester NEW

Proceq's Portable Rockwell hardness tester measures hardness of scratch-sensitive, polished and thin parts. The unit offers a high degree of sensitivity through a small penetration of a few micrometers. Proceq designed the touchscreen to work in rugged conditions with enhanced software features, analysis functions and ready-to-go reports with powerful built-in reporting features.

The Proceq Portable Rockwell hardness tester is equally reliable, accurate and standardized but faster than stationary Rockwell hardness testers.

Equotip 550 Portable Rockwell Hardness Tester takes advantage of a new generation full color, dual processor Touchscreen Unit with enhanced software capabilities. The instrument offers a unique range of functions which ultimately help speed up on-site and laboratory inspections and analysis.

Resolution & depth
The only portable measurement method that has practically no minimal thickness limitation - perfect for thin sheets of metals, any material.

Versatility
Equally reliable, accurate and standardized but faster than stationary Rockwell hardness testers.

User Experience
Material independent method - that can be combined with Leeb and UCI in one measurement device. One device - all applications.

Features:

Instrument Firmware

Personalized user profiles and views
Integration in automated testing environments (incl. remote control)
11 Languages and timezone supported

PC Software
Equotip Link allowing direct reporting and custom reports

Display
7” color rugged touchscreen unit (800 x 480 pixels) with dual core processor

Memory
Internal 8 GB flash memory (> 1’000’000 measurements)

Connections
USB host / device and Ethernet

Additional Features:

Specially For Thin Parts
Particularly suited for scratchsensitive and polished parts or on thin parts, profiles and pipes. The required minimum thickness for a reliable hardness reading is ten times the indentation depth. For the mass there is no minimum requirement.

Broad Hardness Scales Coverage
Measurements in HRC and HV with automatic integrated conversions to HB, HRA, HRB and many more common scales in compliance to ASTM E140 and ISO 18265.

Suits Various Sample Geometries
Unique measuring clamp and support feet are available for the probe allowing tests to be carried out on various geometries.

For Any Environment
The Equotip 550 Portable Rockwell can be utilized for on-site, factory and lab environment with almost no limitation.

Applications:

Standard to large objects
Yes

Round objects
Yes

Light objects
Yes

Very hard objects
Yes

Cast objects
No

Polished objects
Yes

Limited accessibility
No

Thin objects
Yes

Heat treated surfaces
No

Additional Applcations:

Prime mover hydraulic cylinder
Automotive parts
Differences in alloys
Accuracy for small components
Thin walled metal pipes
Composite materials
Steel rings
Watch components
Aging roadway metals
Heavy and bulky forging dies
Extruded aluminium
Medical wires
Small components
Leeb and Portable Rockwell combined
Thermal cutting
Gigantic saws

Specifications :

Display
7” color capacitive touchscreen

Instrument protection
- IP54, fully rugged with shock absorbing casing,
- Scratch-resistant Gorilla® Glass screen protection,
- Circuit and connector protection against dust, debris, chemicals and voltage spikes

- Foldable additional screen cover for additional protection during storage and transportation

Memory
Internal 8 GB flash memory (>1’000’000 measurements)

Combination with another testing method
Leeb, UCI

Connectivity
Ethernet & USB-B (PC connection), USB-A (PRT), Probe-specific slots

Battery
3.6V, Li-Ion, 14’000 mAh

Battery lifetime
> 10h (in standard operating mode)

Charging time
< 9h, <5.5 h (External quick charger)

Power input
12V +/- 25% / 1.5A

Dimensions
250 x 162 x 62 mm / 9.87 x 6.37 x 6.44 in

Weight
1’525 g / 3.35 lbs. (incl. battery)

Humidity operation
< 95% RH, non-condensing

Operating temperature
(-) 10°C + 50°C / 14°F – 122°F

Certification
CE, KC, FCC

Equotip 550 Software Features
- Advanced algorithm option for faster measurements
- Fully customizable reporting
- Customizable views
- Verification wizard
- Measurement wizard
- Mapping wizard
- Integration in automated testing environments (incl. remote control)
- Custom conversion curves (1-point, 2-point, polynomial)
- Built-in pdf creator

Conversion curves applicable for materials
- Steel and cast steel

Languages
English, German, French, Italian, Spanish, Portuguese, Turkish, Chinese, Korean, Russian, Japanese, Polish, Czech

Regional settings
Metric and imperial units, multi-language and time-zone

Audio support
Full digital audio

Desktop Software (Windows)
PC Software
Equotip Link for data download, management and export (CSV, PNG), Conversion curve management, and for upgrades of constantly expanding Equotip and Equotip Link Software

Language support
English, Chinese, Czech,German, Spanish, French, Italian, Korean, Japanese, Polish, Portugese, Russian, Turkish

Native Scale
mm, HRC

Conversion scales
HLD, HV, HB, HRA, HRB, HRC, HR15N, MPA (σ1, σ2, σ3)

Measuring range
10-100 µm, 19-70 HRC, 35-1000 HV

Indenter
ASTM E3246 and DIN50157 compliant, 100° diamond

Impact energy / Test force
50 N (10N + 40 N)

Accredited calibration
ISO/IEC 17025

Standard compliance
ASTM A3246
DIN 50157

Guidelines
ASTM A370
ASME CRTD-91
DGZfP Gudeline MC 1
VDI / VDE Gudeline 2616 Paper 1

Conversion standards
ASTM E140
ISO 18265

Measurement resolution
0.1 μm; 0.1 HRC; 1 HV

Measuring accuracy
± 0.8 μm; ~ ± 1.0 HRC over entire range

Measurement deviation (E)
Lower than DIN 50157 and ASTM E3246

Coefficient of variation (R)
Lower than DIN 50157 and ASTM E3246

Weight
264 g / 9.3 oz

Dimensions
Ø 40 mm, Length 115 mm

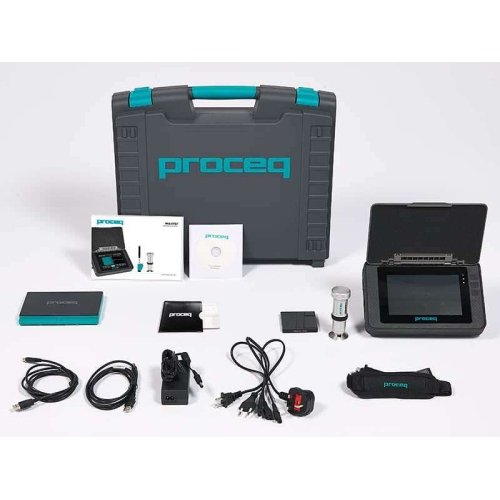

INCLUDED :

Equotip touchscreen incl. battery

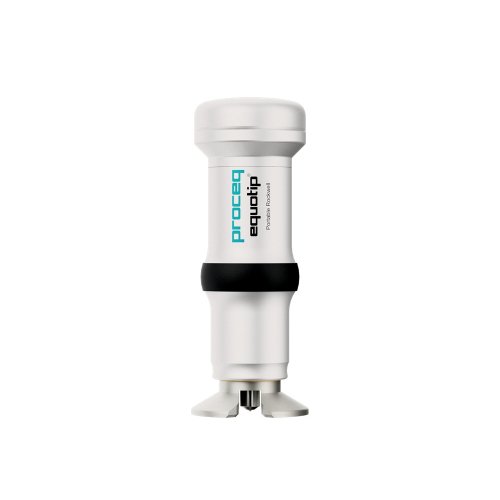

Equotip portable Rockwell probe 50 N
Protective Rubber Sleeve
Probe Cable
Test Block ~62HRC
Power supply
USB cable
Surface roughness comparator plate
Documentation
Carrying strap and carrying case
