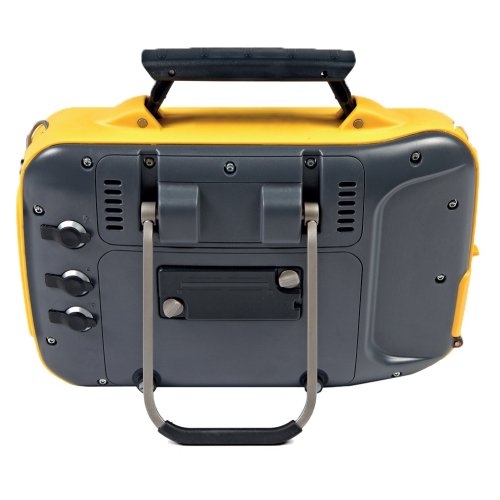

Sale Sonatest Prisma 16:64 Ultrasonic Flaw Detector NEW
SONATEST
The prisma ultrasonic flaw detector offers the end user, outstanding performance in the field together with the flexibility and capability to step up from using a high-end ultrasonic flaw detector to an instrument with phased array functionality. The Sonatest PRISMA 16:64 TOFD is part of the new generation of phased array ultrasonic testing (PAUT) flaw detectors manufactured by Sonatest. The Sonatest PRISMA 16:64 flaw detector is designed with a capacity for 65 MHz digitizing, a 200 kHz-14 MHz bandwidth, and comes with a modular design. The Sonatest PRISMA 16:64 PAUT represents the following persistent traditions: innovative technology, advanced processes, small size, lightweight, powerful functions and easy operation.
$3,266.00
Sonatest Prisma 16:64 Ultrasonic Flaw Detector NEW
The prisma ultrasonic flaw detector offers the end user, outstanding performance in the field together with the flexibility and capability to step up from using a high-end ultrasonic flaw detector to an instrument with phased array functionality.
The Sonatest PRISMA 16:64 TOFD is part of the new generation of phased array ultrasonic testing (PAUT) flaw detectors manufactured by Sonatest. The Sonatest PRISMA 16:64 flaw detector is designed with a capacity for 65 MHz digitizing, a 200 kHz-14 MHz bandwidth, and comes with a modular design. The Sonatest PRISMA 16:64 PAUT represents the following persistent traditions: innovative technology, advanced processes, small size, lightweight, powerful functions and easy operation.
Specifications :
Pulsers
Configuration
16:16 or 16:64
Pulse Voltage
-25 V to -75 V (Steps of 5 V)
PRF
Hz to 5000 Hz
Receivers
Gain Range
0 to 76 dB (0.1 dB Steps), Analogue Gain
Max Input Voltage
200 mVp-p
Bandwidth
200 kHz to 14 MHz
Analog Filters
3 (Automatic)
Digital Filters
10 (Automatic or Manual)
Data Acquisition
Architecture
16 Channels, Full Digital Delay & Sum
Resolution
12 Bit ADC
Amplitude
[0% to 100%] or [0% to 150%] FSH
Digitizing Frequency
65 MHz
Focal Laws
128
Max A-Scan Length
4096 samples
Scan and Views
Supported Scans
S-Scan or L-Scan
Number of Scans
1 (With up to 3 Extracted A-Scans)
Views
A, B, C, L, S-Scan, Merged plus true TOP & END
DAC and TCG
DAC Points
16
DAC
1 w/ 3 “Sub DACs” per Focal Law
TCG Points
16
Gain Range
40 dB
Gain Slope
50 dB/μs
Gates
A-Scan Gates
4 Gates per A-Scan (3 Extracted A-Scans per S/L-Scan)
S/L-Scan
1 Extraction Box
Data Storage
Internal
6 GB (Standard)
External
Hot Removable "User" USB8 GB (Standard)
Transfer Rate
To User Key: Up to 23 MB/s Write Mode, 27 MB/s Read Mode
Data File Size
3GB (FAT32 File System)
Typical Scanning Speed
10 to 15 cm/s (3.9 to 5.9 in/s)
Typical Scan Length
>10 m (32.8 ft)
Display
Size
25.9 cm (10.2 in.) Wide Aspect Ratio
Resolution
1024 x 600 Pixels
Color
280k (65535 Colors for Scan Palettes)
Type
TFT LCD
INCLUDED :
Dual UT Channels with:
A-Scan Recording
2 Axis Encoding
Interface Triggering
A, B & C-Scan Displays
USB Stick (8GB)
Couplant
User Manual / Quick User Guide
2-point Neck Harness
Lithium-Ion Battery Pack
Power Cord & Power Supply Adaptor
Screen Protector (Anti-Glare)
Transport Case
UTstudio License
Also you can check product : Sale Sonatest Prisma 16:64 Ultrasonic Flaw Detector USED
- Availability: 42 In Stock
- Model: Prisma
-
Brand:
