Sale Thermo Scientific Niton XL5e Handheld XRF Analyzer NEW

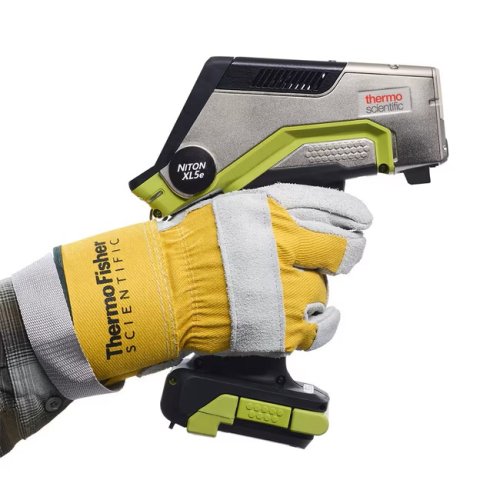

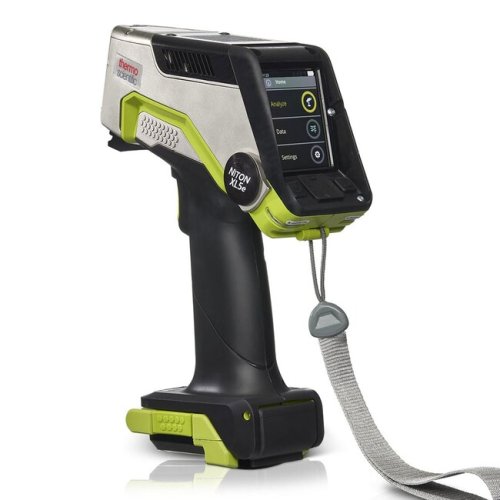

Thermo Scientific Niton XL5e Handheld XRF Analyzer

Perform elemental analysis swiftly with the Niton XL5e Handheld XRF analyzer. Ergonomic and Wi-Fi enabled, the Niton XL5e puts high-end detection within reach.

Conduct elemental analysis with speed and accuracy using the Thermo Scientific Niton XL5e Handheld XRF Analyzer. This advanced instrument offers powerful detection capabilities, delivering precise results quickly. Designed with excellent ergonomics for long shifts, this model features modern software for easy reporting and internal Wi-Fi for improved connectivity.

Key Features

5W X-ray tube
Lightweight design (2.8 lbs/ 1.3 kg)
Integrated fan for thermal management
Bluetooth and WiFi communications
Micro camera
Hot swap battery

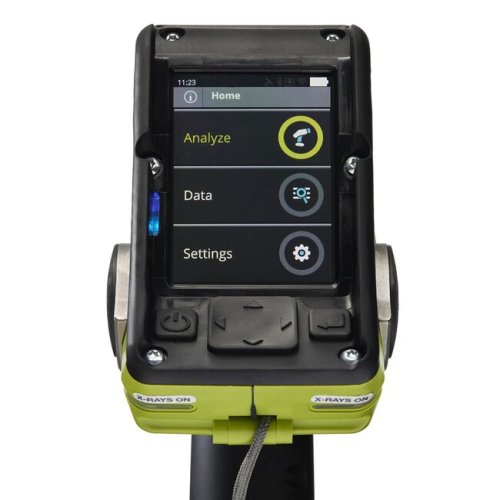

Color touchscreen
Password-protected security
IP54 certified (splash/dust proof)

Applications

Verification of metals and alloys in manufacturing operations
Non-destructive field inspections for positive material identification
Point-and-shoot sorting at scrap recycling operations
Real-time geochemical analysis for mining exploration
On-site heavy metal screening of polluted soils

Available modes

Light Metal Quick Sort (Scrap)
General Metals
Soil
Mining
Plastics

Specifications :

Certifications/Compliance
CE, RoHS, FCC, Industry Canada, Safety to IEC 61010-1:2010

Data Entry
Touchscreen keyboard, user-customizable data entry, optional wireless remote barcode reader

Data Storage
512 MB internal system memory / 16 GB industrial grade storage; Stores approximately 130,000 readings with spectra

Data Transfer
WiFi, USB-C

Dimensions (L x W x H)
9.54 x 8.19 x 2.67 in (242.56 x 208.17 x 67.90 mm)

Display Type
Fixed, color, resistive touchscreen display

Global Positioning System
Supported via optional external GPS (via Bluetooth)

IP Rating
IP54

Languages
English, Chinese, Spanish, Portuguese, Russian, Japanese, German, Korean, French, Turkish, Italian

Libraries
Default alloy libraries based on SAE, AISI, ASTM, AA, DIN, GB standards; Users may create, clone and edit libraries

Licensing
Varies by region. Contact your local distributor.

Operating Environment
Temperature: -10°C to 50°C, Humidity: 10% to 90% relative humidity non-condensing

Operating System
Linux

Optional Accessories
Portable test stand, Mini test stand, Hotwork stand-off, Soil guard, Bluetooth printer

Power Consumption
12V lithium-ion battery, or 12V DC, 3A, 3.6W power supply; Hot swap functionality

Security Features
Password-protected user security

Software
NitonConnect PC software

Spot Size
8mm collimation

System Details
Built-in standardization and health check verifies system integrity

Weight (English)
2.8 lbs with battery

Weight (Metric)
1.3 kg with battery

X-Ray Source Type
Ag anode (6-50kV, 0-500uA, 5W max)

Applications
Elemental analysis for: metals and alloys, geological and soil samples, plastics

Tube Voltage
50 kV

Unit Size
Each

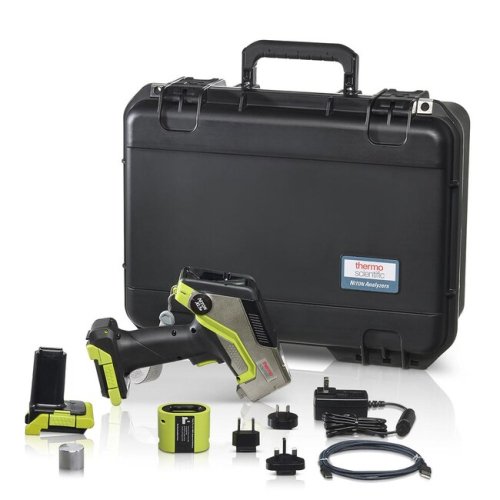

INCLUDED :

Locking shielded carrying case,
(2) lithium-ion battery packs
(1) 110/220 VAC battery charger/AC adapter,
Check samples
Safety lanyard
PC connection cable (USB)

Also you can check product : Sale Thermo Scientific Niton XL5 Plus Handheld XRF Analyzer NEW

• Availability: 152 In Stock
• Model: Niton XL5e
• SKU: NITONXL5E2026
• Brand:
