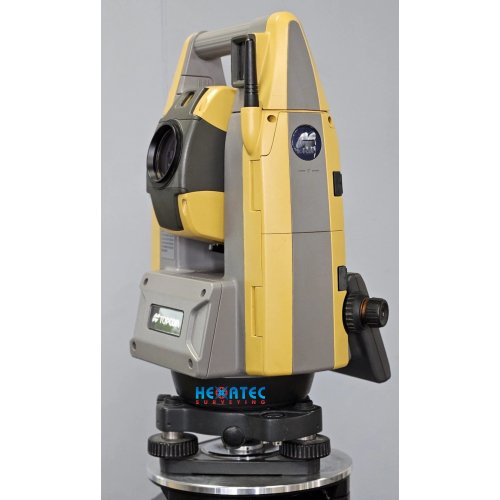

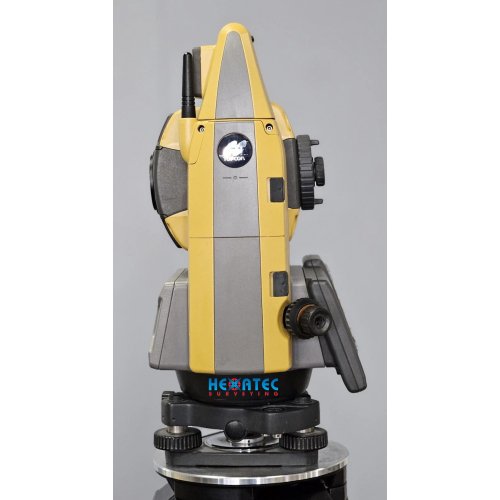

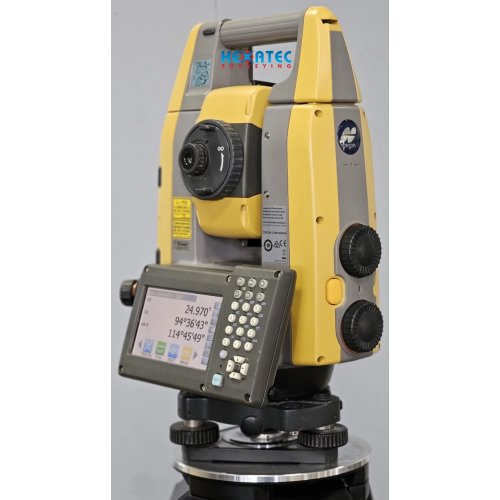

Sale Topcon GT-1003 3" Robotic Survey Total Station USED

Topcon GT-1003 3" Robotic Survey Total Station USED

Versatile and powerful scanning robotic total station. The GTL-1000 series is a single instrument to layout and scan on a single set up. It combines a fast laser scanner and total robotic station all in one efficient system.

Combined with ClearEdge3D Verity, the all new solution offers a new standard of evolutionary construction verification workflows.
- Quick layout and scanning with a single instrument
- Instantaneous point cloud registration
- Full dome scan and images in seconds
- Scan density tailored to minimize software processing time

Construction Verification. Every Day.
- Quick layout and scanning with a single instrument
- Instantaneous point registration on hardware
- Proven integrated robotic total station design
- Full dome field-of-view scan and images in seconds
- Tailored scan density to minimize software processing time for construction verification

The Ultimate Total Station:

- UltraSonic Direct Drive motors
- 30% smaller and lighter than any previous Topcon robotic
- TSshield™ global service
- Advanced UltraTrac technology
- 3-year instrument warranty
- 5-year motor warranty
- Available in two models

The GT Series of robotic total stations is a compact, high-performance solution. You get the efficiency of a single-operator robotic system, the power of long-range reflectorless measurements, and performance as a hybrid positioning solution.

Ultra-powerful

UltraSonic technology is the driving force for the GT Series. The UltraSonic motors are the thinnest, lightest, and most powerful on the market – providing you with the smoothest and most accurate prism-tracking possible. It’s a difference you can see and hear immediately

Ultra-accurate Our new UltraTrac technology gives you increased prism-tracking strength in all conditions. Advanced instrument algorithms deliver the confidence you need to move ahead. It’s not that you lose line-of-sight, it’s how fast you can reacquire and get back to work.

Ultra-slim and reliable

Featuring a remarkably slimmed down design, the compact system is a third smaller and lighter than any Topcon robotic instrument, yet twice as fast. Without traditional gears or wearing parts, the UltraSonic motors are more rugged and durable – lasting four times longer than previous total stations, and we back it with a five-year warranty.

UltraSonic Motor

Experience power like you’ve never seen or heard before

- Long-lasting gearless design
- Turning speed of 180° per second
- Compact motor efficiency

Fastest robotic motor technology available, 30% smaller and lighter

Construction layout & verification in:

- Mechanical
- Plumbing Layout & survey structural steel Structural concrete Plant
- Equipment installation Prefabricated
- Modular Topography & As-Built BIM for Construction Foundation
- Exterior Interiors Vertical Construction

Specifications:

Display Panel
Color touch TFT 800 x 480 display

Compensation
Liquid 2-axis tilt sensor

Prism EDM Range [m]
5,000

Prism EDM Accuracy [mm]
1 mm + 2 ppm

Measuring Time [s]
Fine: 0.9 sec, Rapid: 0.6 sec, Tracking: 0.4 sec

Non-Prism Range [m]
1,000 m

Non-Prism Accuracy [mm]
2 mm + 2 ppm (0.3 - 200 m)

Maximum angular speed [deg/s]
180

Max. operation time on one battery [hr]
4

Minimum working temperature [degC]
-20

Maximum working temperature [degC]
50

IP dust/water protection class [IPxx]
IP65

Standard warranty [years]
3

Bluetooth
Yes

USB
Yes

RS232
Yes

Other connectors or connector specifications : LongLink interference-free communication. USB 2.0 Slot (Host + Slave). RS-232C Serial. Wireless Connection Bluetooth Class 1

INCLUDED :

- Topcon GTL-1003
- Battery (BDC70)
- Charger(CDC68A)
- Power cable(EDC113)
- Stylus pen
- Lens cap
- Lens hood
- Tool pouch
- Screw driver
- Lens brush
- Adjusting pin
- Hexagonal wrench
- Silicon cloth
- Quick guide
- Startup guide(This sheet)
- SD card
- USB flash drive (Manual)
- Serial card
- Laser caution sign-board
- Carrying case
- Carrying strap
- Export restrictions card

Also you can check product : Sale Topcon GT-605 Robotic Total Station USED

• Availability: 16 In Stock
• Model: GT-1003
• SKU: 062GT1003US
• Brand:
