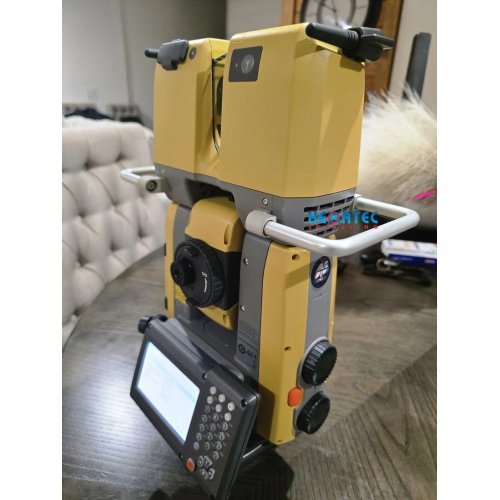

Sale Topcon GTL-1200 Robotic Total Station and 3D Laser Scanner USED

Topcon GTL-1200 Robotic Total Station and 3D Laser Scanner  USED

This combined technology approach eliminates workflow steps for scanning applications and greatly reduces the need for post-processing because the captured scan data is already on survey control or job site coordinates. In addition, the GTL-1200 workflow includes seamless integration with ClearEdge3D software for as-built and advanced construction QA workflows.

Now with Collage Site and more
The GTL-1200 provides several additional features and improvements as compared to its predecessor. The introduction of Collage Site offers field-centric workflows that eliminate extra data management steps traditionally performed in the office. The GTL-1200 also features improved scanning resolution and adds Wi-Fi capability, enabling wireless data transfer to field-controller software.

Features

Precise positioning with single-person operation
High-speed advanced ultrasonic motors
Easy to use with MAGNET or Pocket3D software
Seamless integration into BIM workflows
Three-year instrument and five-year motor warranty
Ultra-rugged IP65 dust and water resistance
UltraTrac™ prism tracking
Maintain work pace with total station locked onto the prism, even in challenging environments
Ultra Sonic Motor Technology
30% smaller and lighter than previous models
3-Year complete Warranty
5-Year Motor Warranty
2″, 3″, or 5″ Angle Accuracy

Specifications :

SCANNING

Method, Source, Class
Pulse(TOF), 870nm, Class1

Beam Spot Size, Divergence
60 x 27 mm at 30 m

Accuracy Dist., Ang., Pt
16 mm at 30 m, Sigma 30”, 10 mm at 30 m

Precision / Noise 5 mm at 10 m

Range (KGC 90%)
0.6 - 70 m

FOV
360º x 270º (H x V)

Scan Speed
200 KHz (200,000 points per second)

IMAGING

Tele
5 megapixel, 60°(Diagonal)

Wide / Panorama
5 megapixel, 135°

TILT

Range, Accuracy, Resolution
±6‘, ±4”, 1”

PLUMMET

Method, Accuracy, Spot
size Optical/Laser(OP), 1.5 mm at 1.5 m, 2.5 mm at 1.5 m

Height Sensor
N/A

Plummet Camera
N/A

TOTAL STATION

EDM, Track/Aim
1000 m (NP), 800 m

COMMUNICATION

Serial Communication
RC232C / USB2.0

Wireless communication
Bluetooth Class 1 / WLAN

DATA STORAGE
Internal, External 1GB, SD (for Scan) / USB

DISPLAY

Display Key
4.3 inch VGA w/TP, 24 Keys + 2 Keys

SPECIFICATIONS

(P)Plate, (C)Circular level (w/o tribrach)
(C) 10’/2 mm (Optional)

GUIDE LIGHT

Guide Light, Laser pointer
5.0 - 150 m, Class 2 Laser (Optional)

ENVIRONMENTAL

Water proof, Operating Temp
IP54, -10°C to 50°C

Battery
Li-ion 7.2V / 5.2Ah

Weight (Main + Battery)
7.3 kg

Size (H x W x D)
430 x 190 x 230 mm

INCLUDED :

GTL-1200 main unit
Batteries (x4) + charger
Hard case
Cables and original accessories

Also you can check product : Sale Topcon GT-605 Robotic Total Station USED

• Availability: 17 In Stock
• Model: GTL-1200
• SKU: 062GTL1200
• Brand:
