VIAVI MicroNIR OnSite-W

A ruggedized, handheld spectrometer for rapid material analysis in the field

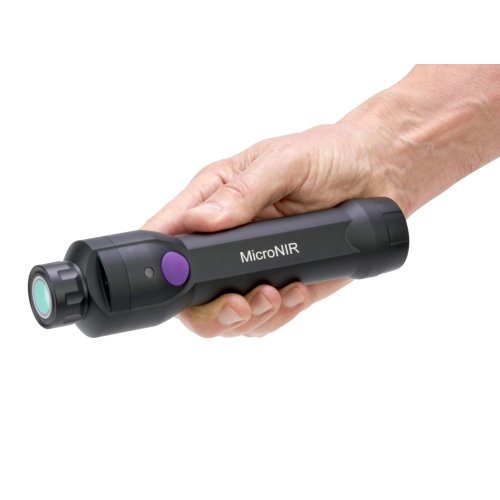

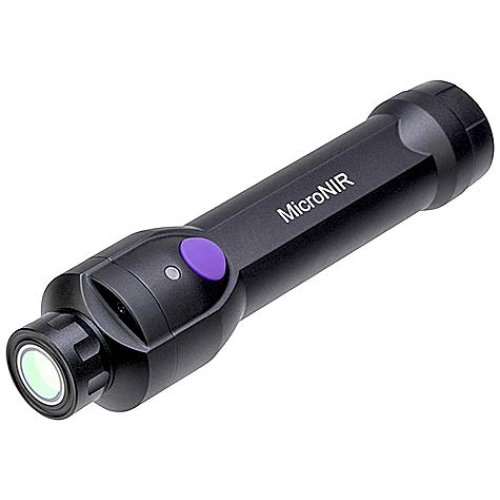

The MicroNIR OnSite-W is a battery-powered handheld near-IR analyzer that connects wirelessly to a tablet PC. Its compact, ruggedized and ergonomic design makes it ideal for applications in the field or on the manufacturing floor.

The MicroNIR OnSite-W is the latest addition to the VIAVI Solutions innovative, ultra-compact spectrometer product line. The MicroNIR OnSite-W is the smallest fully-integrated NIR spectrometer on the market and is enabled by proven VIAVI linear variable filter (LVF) technology. With no moving parts and IP65/IP67 dust/water ingress rating, it is designed for a wide range of material characterization applications in food, agriculture, pharmaceutical, and security markets.

Features and Benefits

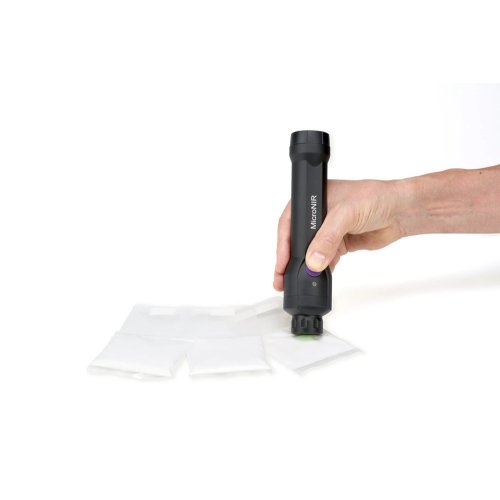

Rapid, real-time, non-destructive near-infrared material analysis
Wireless, compact, rugged, and ergonomic design for one-hand operation
Multifunction button for one-click data acquisition
Internal, rechargeable battery with run time greater than 10 hours
IP65 and IP67 rated for use in wet and dusty environments
Bluetooth or USB connectivity to tablet or PC
Compatible with original MicroNIR OnSite accessories
Powerful MicroNIR Pro model-building and prediction software
Intuitive, easy-to-use software interface

Applications

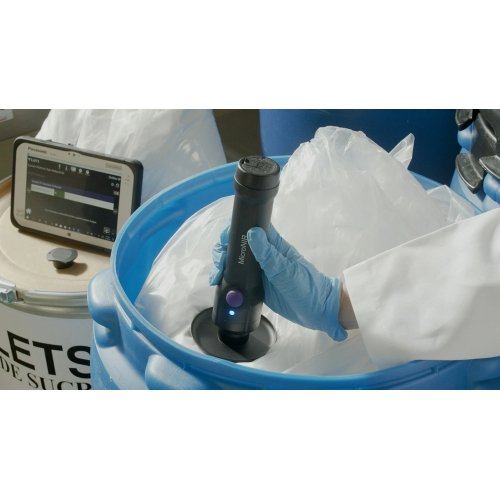

Pharmaceutical raw materials
Polymers and chemicals
Narcotics and explosives
Grain and forage
Tobacco and agricultural products
Meat and dairy products

Software

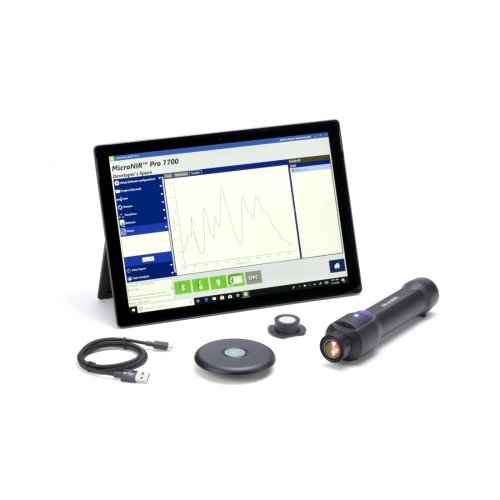

The MicroNIR OnSite-W system includes the MicroNIR Pro software suite with features for data acquisition, calibration and method development, user management, and real-time prediction. Using MicroNIR Pro software, a developer can process data and build complete chemometric models using regression and classification algorithms including PLS, MBSD, SMV, and PCA analyses. Batch mode predictions on stored data are also supported. MicroNIR Pro software also includes instrument performance qualification per EP 2.2.40 and USP 1119 test criteria and tools enabling Title 21 CFR Part 11 compliance. An enhanced OPC interface is optionally available for integration with process control systems. The OnSite-W system also includes a standalone tablet application with simplified user interface for data acquisition and real-time prediction in the field. Please see recommended hardware/software listed in specifications.

Specifications :

Illumination source
Two integrated vacuum tungsten lamps

Lamp life
>40,000 hr

Sample working distance
3 mm from window optimal, 0-15 mm

Dispersing element
VIAVI linear variable filter (LVF)

Detector
128 pixel InGaAs photodiode array

Wavelength range
908-1676 nm (11,012-5966 cm-1)

Pixel-to-pixel interval
6.2 nm for 950 – 1650 nm

Spectral bandwidth (FWHM)
<1.25% of center wavelength, 1% typical (e.g., @1000 nm, resolution is <12.5 nm)

Analog-to-digital convertor
16 bit

Dynamic range (Max)
1000:1

Measurement time (typical)
0.25 – 0.5 sec

Signal-to-noise ratio (typ.)
25,000

Integration time
10 ms typical, minimum 10 µsec

Connectivity
Bluetooth 4.1 (BLE) and USB 2.0

Weight
<250 g (<9 oz)

Size (Length x Diameter)
194 mm (6.64”) x 47 mm (1.85”)

Battery
Rechargeable Li-ion, not removable

Battery run time/charge
>10 hours with lamps on continuously

Battery cycle life
>75% capacity after 300 charge cycles

Battery charge time
3.5 hours at 1 A

Export data formats
CAMO .unsb, Grams .spc, ASCII .csv

Operating system
Microsoft Windows 10 Pro

Minimum screen resolution tablet/PC application
1920 x 1080/1366 x 768

Software compatibility
MicroNIR Pro 3.0 and above

Qualified PC
Microsoft Surface Pro 6 (tablet or PC)

Qualified Tablet PC
Dell Latitude 7212 Rugged Extreme

Operating temperature
−20 ~ 40°C (noncondensing)

Storage temperature
-20 - 50 Degree C (noncondensing)

Dust and water resistance
IP65 and IP67

Shock and vibration
MIL-PRF-28800F Class 2

Standard Accessories

-Two applicators with sapphire windows, AR-coated on one side for maximum light throughput
-Small applicator for flexible operation and for reaching samples in confined spaces easily
-Large applicator for soft material measurement such as fiber, clothes and vegetation
-Protected white reference with sapphire window
-Matching grooves on the applicators and reference for easy alignment in the field
-Protected window and aluminum enclosure for use in the field and for easy cleaning
-Rugged carrying case including space for PC and tablet
-USB cable for charging and data connection to PC
