Waygate Technologies Everest Mentor Flex VideoProbe NEW

The Waygate Technologies Everest Mentor Flex VideoProbe combines portability with military-grade durability into an industrial, versatile video borescope, designed for ease of use in any environment.

With an upgraded articulation design founded on high-power steering motors, the Everest Mentor Flex provides an increase of 42% in articulation range and 16% less friction, giving an ultra-responsive feel while extending articulation over the life of the product. The Everest Mentor Flex allows technicians to effortlessly navigate challenging inspection paths, resulting in more time for capturing and analyzing indications.

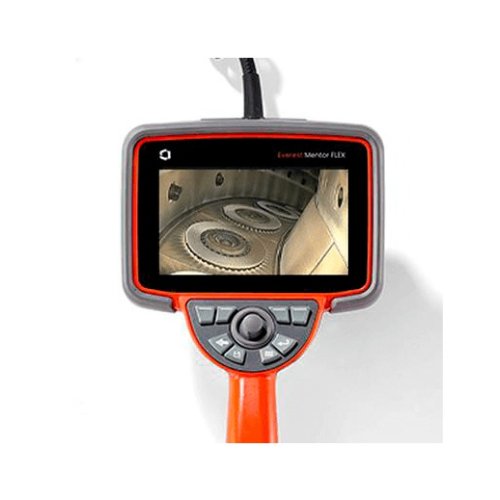

The Everest Mentor Flex features a 5.8-inch wide WXGA (wide XGA) LCD touchscreen display with TrueSight image clarity for clearer images and more accurate assessments. The Mentor Flex's intuitive user interface includes a virtual keyboard for faster annotation, and a multi-point touchscreen that provides pinch-to-zoom and swipe and pan gesture functionality. Menu Directed Inspection (MDI) empowers inspectors with auto-image smart tagging and automatic report generation, customizable user profiles and an embedded help menu. InspectionWorks Connect enables wireless video streaming and file transfer to iOS devices over dual-band Wi-Fi.

The Mentor Flex's dark boost feature assesses the content of scenes and intelligently adjusts levels to digitally brighten darker areas without overexposing or degrading the contrast of more uniform scenes. With distortion correction, the Mentor Flex automatically flattens the edges of images, enabling wide field-of-view optics without the inaccuracies. Together with color saturation, these features provide high-quality images that show not only textures but flaws and defects that were previously undetectable.

Constructed with military-grade magnesium housing (MIL-STD) and tested by a third party to withstand the rigors of the industrial workplace, the Everest Mentor Flex borescope delivers top performance in even the harshest environmental conditions.

Features

Multi-point touchscreen allows pinch to-zoom and swipe-and-pan gesture functionality
Menu Directed Inspection (MDI) improves efficiency with auto-tagging and automatic report generation
-Titanium-housed, color SUPER HAD CCD camera
3.9 and 4.0mm diameter: 440,000 pixels, 1/10in sensor
6.1 and 8.4mm diameter: 440,000 pixels, 1/6in sensor
-13 to 212°F (-25 to 100°C) tip operating temperature
Integrated, 5.8in transmissive color TFT WXGA Advanced Wide View (AWV) LCD monitor
32GB internal memory
IP65
Optional stereo measurement
Optional hard-shell backpack case

Specifications :

Operating Temperature

Tip
-25ºC to 100ºC (-13ºF to 212ºF). Reduced articulation below 0ºC (32ºF)

System
-25º to 46ºC (-13ºF to 115ºF). LCD may require warm-up period below 0ºC (32ºF).

Storage Temperature
-25º to 60ºC (-13ºF to 140ºF)

Relative Humidity
95% max, non-condensing

Waterproof
Insertion tube and tip to 14.7 psi (1 bar, 10.2 m of H2O, 33.5 ft of H2O)

Camera

Diameter Probe
3.9 mm (0.15"), 4.0 mm (0.16”), 6.1 mm (0.24”), 8.4 mm (0.33”)

Image Sensor
1/6” Color SUPER HAD™ CCD camera (6.1 mm, 8.4 mm) 1/10” (3.9mm, 4.0 mm)

Pixel Count
440,000 pixels

Housing
Titanium

System

System Dimensions
13.7 cm x 19.7 cm x 38.1 cm (5.4” x 7.2” x 15”)

Case Dimensions
Small case 35.0 x 54.5 x 23.0 cm (13.78” × 21.46” × 9.05”)
Backpack case 54.2 x 40.2 x 22.0 cm (21.3 x 15.8 x 8.6”)

System Weight
In small case with contents: 10.2 kg (22.4 lbs)
Out of Case: system - 2.50 kg (5.5 lbs)
In backpack case with contents: 7.28 kg (16.05 lbs)

Construction
Magnesium and polycarbonate housing with integrated elastomeric bumpers

LCD Monitor
Integrated (5.8") transmissive color TFT WXGA Advanced Wide View (AWV) LCD, daylight readable display with optically bonded, multipoint capacitive Gorilla® Glass touchscreen

Joystick Control
360º All-Way® tip articulation, menu access, and navigation

Button Set
Access user functions, measurement, and digital functions

Internal Memory
32 GB

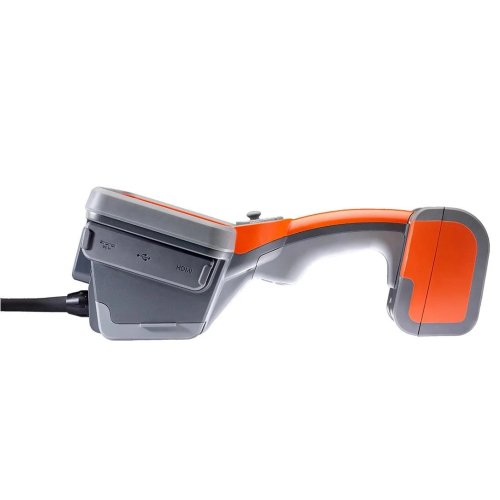

Data I/O Ports
Two USB 2.0 host "A" ports

Video Out
HDMI

Brightness Control
Auto and Variable

Illumination Type
White LED

Long Exposure
Auto – up to 16 seconds

White Balance
Factory default or user defined

Wi-Fi Adapter
802.11a/b/g/n, 2x2 A WLAN

Modulations
DSSS, OFDM

Power Supply

Lithium Ion Battery
3-hour runtime, 10.8 V (nominal), 73Wh, 6.8Ah

Current

AC
100-240 VAC, 50-60 Hz, <1.5 A RMS

DC
18 V, 3.34 A

Standards Compliance and Classifications

MIL-STD-810H
United States Department of Defense Environment Tests Sections 501.7, 502.7, 506.6, 507.6, 509.7, 510.7, 511.7, 514.8, 516.8, 521.4

MIL-STD-461G
U.S. Department of Defense — Electromagnetic Interference RS103, RE102 - ABOVE DECK

Standards Compliance
Group 1, Class A: EN61326-1, UL, IEC, EN CSA-C22.2:61010-1, UN/DOT T1-T8

IP Rating
IP65

Software

Operating System
Embedded, multi-tasking operating system

User Interface
Menu-driven and soft button operation; menu navigation using either touch screen or joystick

File Manager
Embedded file manager supports the following operation on files and folders: copy, paste, create, and delete.USB and internal flash storage

Image Control
Brightness, invert, inverse+, distortion correction, noise reduction, HDR, dark boost, color saturation, illumination, long exposure, exposure lock, single view, zoom (5x digital), image capture and recall

Digital Zoom
Continuous (5x)

Image Formats
JPEG (.JPG)

Video Format
MPEG4 AVC /H.264 (.MP4)

Video Recording
Frame rate: 60 fps

Text Annotation
Built-in full-screen text overlay generator

Graphic Annotation
User placement of arrows

Articulation Control
User-selectable steer vs. Steer-and-stay articulation; tip “Home” return to neutral forward-tip orientation

Software Updates
Wireless over the air or field upgradeable via USB thumb drive

InspectionWorks Connect Local
Wired or wireless file transfer and video streaming to iPad or iPhone

Languages
English, Arabic, Chinese, Czech, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Spanish, Swedish, Turkish, Taiwanese

Application Software
Menu Directed Inspection (MDI) software digitally guides inspectors through the inspection process, intelligently names files and creates MS Word® and PDF compatible inspection reports.
Inspection Manager software enables viewing, annotation, and re-measurement of images on a PC.

INCLUDED :

Everest Mentor Flex
3-hour Li-Ion Battery

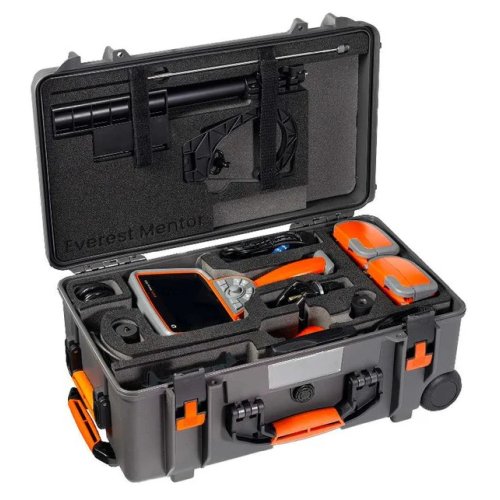

Mentor Flex Storage Case
Safety and Essential Use Hard Copy
AC Adapter/Battery Charger
Optical Tip Adapter (OTA) Storage Case
Optical Tip Adaptors (OTA)
USB Thumbdrive (User Documentation)
Quickstart Guide
