Sale Xgrids Lixel L2 Pro Handheld SLAM Lidar 3D Scanner 16CH/120m NEW

Xgrids Lixel L2 Pro Handheld SLAM Lidar 3D Scanner 16CH/120m NEW

The new Lixel L2 Pro combines LiDAR, visual, and IMU modules with AI, delivering real-time point cloud data that rivals post-processed quality, ushering in the "zero post-processing era" for SLAM devices.

120 m Scan
320.000 p/s
1mm Point Cloud spacing
1cm Relative accuracy
3cm Real-time absolute accuracy
Real-time true Color Point cloud

Fully integrated and deeply optimized

True SLAM with real-time Output
L2 Pro delivers real-time point cloud data that rivals the accuracy of L2’s post-processing, with no waiting—instantly ready for use.

The LixelUpSample algorithm: Generating photo-quality color point clouds
1 million points/㎡ with 1mm spacing for dense point clouds, capturing every detail with precision.
5mm point cloud thickness for more accurate mapping and line drawing.

Reliable SLAM for complex environments
Exclusive Multi-SLAM algorithm enhances adaptability and reliability in challenging environments:
Provides continuous absolute coordinates in satellite-signal-limited areas like indoors or underground.
Ensures stable mapping in degraded environments environments such as subways and tunnels

- Real-time data with absolute coordinates
- A seamless, user-friendly, and reliable workflow
- Maximize usability and flexibility with the accessories

LixelGO

The Lixel Companion App
Easy control with one screen, one-click operation. Full process operations such as RTK setting and breakpoint rescan. Real-time viewing of camera images, elevation information, and true-color point clouds to avoid missing or incorrect data collection. Complete display of collection status such as battery power, network, memory, and range.

Lixel Studio

All-in-One Point Cloud Processing Software
LixelStudio is a comprehensive 3D point cloud processing software powered by spatial intelligence algorithms. It offers tools for viewing, editing, and processing point cloud data, along with industry-specific plugins. With AI-enhanced capabilities, it boosts data processing efficiency and delivers breakthrough 3D data productivity.

One-Click Processing
Easily process point cloud data to improve precision and visual quality.

Panoramic Overlay
Panoramic overlay simplifies measurement and modeling.

Map Fusion
Combine multiple datasets for complete, large-scale point cloud data.

Advanced Editing Tools
Offers registration, noise removal, length and area measurement, 3D clipping and more.

Rich Rendering Modes
Supports various rendering modes including RGB, intensity, elevation, and EDL.

Accuracy Report
Verifies point cloud accuracy manually or automatically and generates detailed reports.

Industry Applications
Features like stockpile measurement comparison and auto mesh generation, with more industry tools coming soon.

Industry Applications

Topographic Suveying
Engineering
Inspection and Maintenance
Construction
Agricultural and Forestry
Film and Game Production

Specifications :

Model
16/120

Working Range
0.5m -120m

Laser Class
Class 1 / 905 nm

Laser FOV
360 x 270 degrees

Scan Speed
320k points/s

Processing Mode
Real-time/Post-processing

Operating Temperature
-20-50 C

Storage Capacity
1TB SSD

Operating Time
90 min

Protection Level
IP54

Handheld Weight
1.7 kg

Dimensions
180×130×400mm

Visual-Aided Positioning
Supported

Real-Time Colored Point Cloud
Supported

5G Real-Time Transmission
Supported

RTK Fusion
Supported

Resume Scanning from Breakpoint
Supported

Point Cloud Format
.las

Relative Accuracy
+-1.2 cm

Absolute Accuracy
3 cm

Repeat Accuracy
2 cm

Number of Cameras
3

Power Consumption
<30W

Power Supply
Fast-lock battery/External power

Battery Capacity
46.8wh

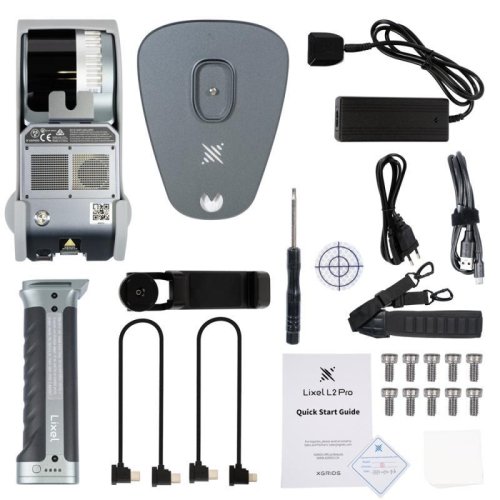

INCLUDED :

RTK Standard Kit
Survey Grade RTK Kit
Mobile Phone Mount
Extension Pole Kit
Backpack Module
GCP Collection Plate
Handheld Battery System
