Sale Adash A4910 LUBRI Lubrication and Vibration Analyzer Kit USED
ADASH
The A4910 Lubri is a maintenance tool used for monitoring and control of the lubrication process. The A4910 Lubri measures the actual bearing lubrication status and informs the operator when the lubrication state is optimal. Application of the A4910 Lubri extends the bearing lifetime and saves lubricants. Headphones can be connected to listen to the bearing condition. The A4910 Lubri is simple to operate and also enables you to perform basic measurements and diagnoses of bearing condition. Now the A4910 Lubri can store the data and perform route measurements as well.
1,761.56€
Adash A4910 LUBRI Lubrication and Vibration Analyzer Kit USED
The A4910 Lubri is a maintenance tool used for monitoring and control of the lubrication process. The A4910 Lubri measures the actual bearing lubrication status and informs the operator when the lubrication state is optimal.
Application of the A4910 Lubri extends the bearing lifetime and saves lubricants. Headphones can be connected to listen to the bearing condition. The A4910 Lubri is simple to operate and also enables you to perform basic measurements and diagnoses of bearing condition. Now the A4910 Lubri can store the data and perform route measurements as well.
DRY BEARING
When the vibration value is too high you should grease the bearing.
ADD GREASE
When the vibration value decreased just slightly, you should continue adding grease.
LUBRICATION OK
The vibration values decreased to a good level, the bearing is lubricated well.
KEY FEATURES
Increases bearing lifetime
Basic vibro diagnostics measurement
Monitoring and control of the lubrication process
Stethoscope function - “listening of bearing/machine noise”
Values in traffic light colours tell you when to add the grease
Specifications :
Input
1x ICP® powered accelerometer with 100 mV/g sensitivity
Output
1x AC signal 8 Ω / 0,5 W for external headphones (signal listening)
Measurements
Acceleration RMS 500 - 16 000 Hz [g]
Acceleration Peak 500 - 16 000 Hz [g]
Velocity RMS 10 - 1 000 Hz [mm/s, ips]
Velocity Peak 10 - 1 000 Hz [mm/s, ips]
Acceleration frequency bands 500-1 500Hz, 1 500-5 000Hz, 5 000 - 16 000 Hz [g]
Memory
4 MB
Data storing
Off-Route
Route with DDS software (free download)
Interface
USB 3.0, 2.0 compatible
Software
Free version of DDS software (limited database size)
Display
Colour graphic TFT display 240 x 320 pixels, diagonal 2.2“ (54 mm), sunlight readable
Power
Rechargeable Li-Ion battery, 16 hours of continuous operation, USB-C charging
Dimensions
150 x 60 x 35 mm
Weight

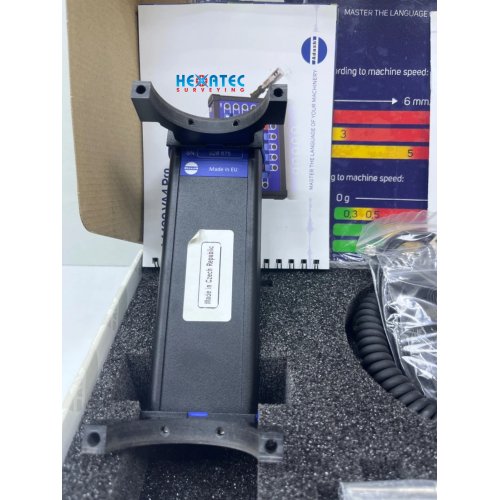

440 g (with grease gun mounts, without cable, sensor and magnet)

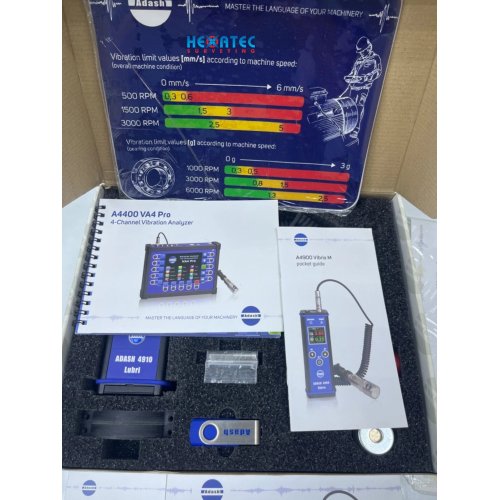

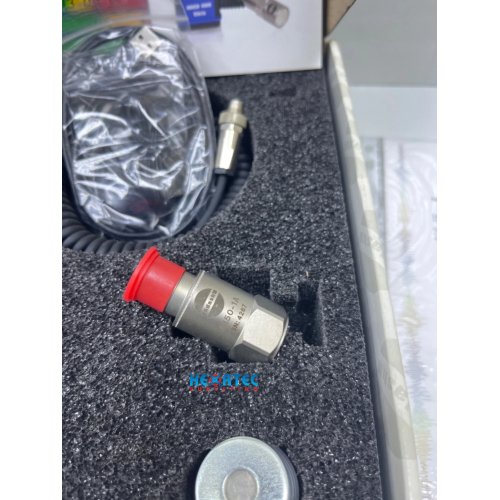

INCLUDED :

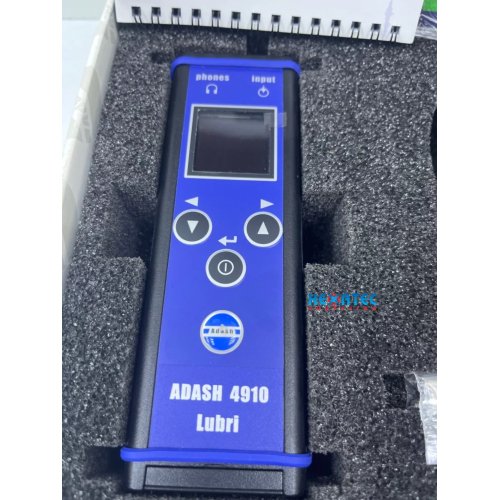

(1) Instrument A4910 - Lubri

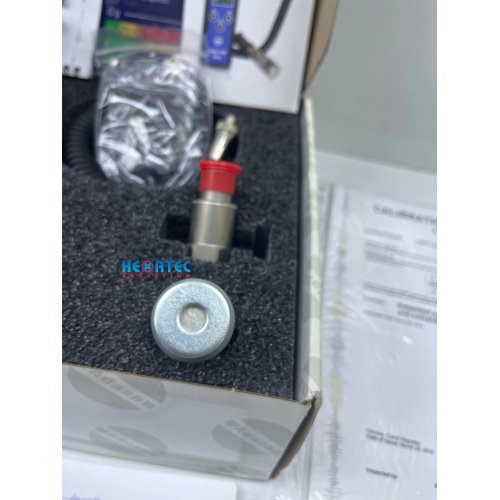

(1) Lubrication and bearing condition sensor
(1) Magnetic base for sensor

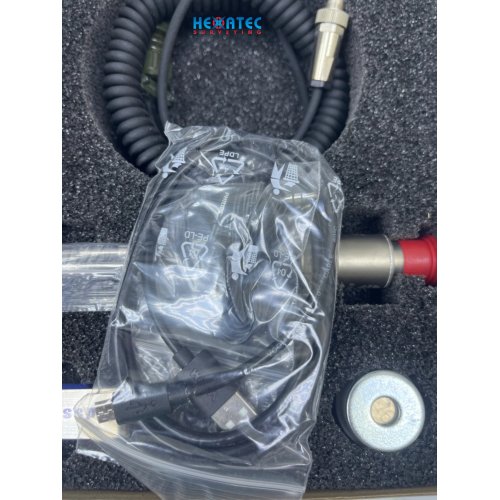

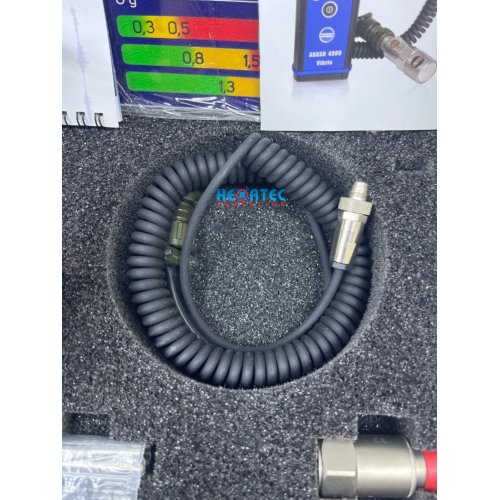

(1) Coiled cable to connect sensor
(1) Headphones
(2) 1.5V alkaline battery
Also you can check product : Sale Adash VA4 Pro II - A4400 4 Channel Vibration Analyzer NEW
- Availability: 18 In Stock
- Model: A4910 LUBRI
- SKU: A4910Lubri
-
