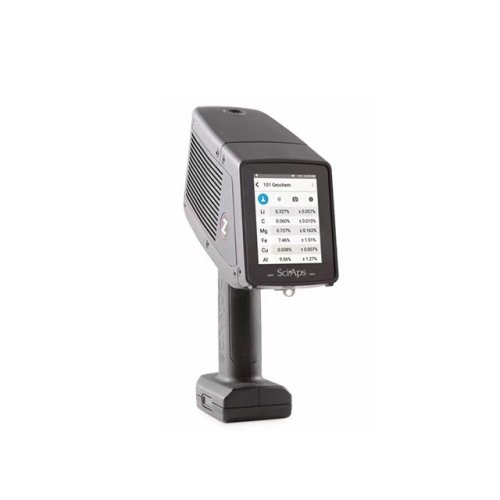

Sale SciAps Z-903 Handheld Libs Analyzer NEW

Bulk samples and micro-analysis

The Z is the world’s only handheld offering elemental micro-analysis in the field. Users may set up the raster to a grid pattern, using the 100 um laser spot size for elemental heat mapping point-by-point. For bulk samples, the Z can be set to average results from every raster location for a bulk sample result, just like handheld XRF analysis.

One analyzer, every element

The Z-903 accomplishes what no other portable analyzer has done. It’s a handheld analyzer that measures every element in the periodic table of the elements – from H to U.

It uses the same powerful laser as SciAps other Z-900 models, but with an extended spectrometer range from 190 nm out to 950 nm.

The extended range allows emission lines from elements H, F, N, O, Br, Cl, Rb, Cs and S to be measured. These lines cannot be measured with the other Z-900 series analyzers.

There are other benefits to the extended range. For example, it measures a more sensitive line for lithium near 675 nm to achieve limits of detection in the 2-5 ppm range.

It also measures a more sensitive, and interference-free line for potassium (K). The more traditional potassium lines have heavy iron interference, whereas the line used by the Z-903 is free of such interference.

In use globally
The Z-903 is most widely used for mineral exploration including lithium in both hard rock and brines. It is also used in forensics, authentication, archeology and oil/gas exploration due to the wide elemental range.

Complete user control
The laser strike pattern, cleaning shots, spectrometer settings are all under user control. The analyzer includes advanced software for modifying all settings, comparing spectral data, and for generating quantitative calibration curves. The Z-903 features the same Android OS and intuitive App-driven software as all other SciAps models.

Specifications :

Weight
4.35 lbs. (1.97 kg) with battery

Processing Electronics
ARM Quad Cortex -A53 1.2GHz memory: 2 GB LPDDR3, 16 GB eMMC

Dimensions
10.75 x 2.875 x 8.625 inches

Data Storage
Results Storage: 32 GB SD

Spectral Range
190 nm – 950 nm

Display
3.5-inch high-brightness color touchscreen, readable in all conditions. Rear-facing display for easy results viewing.

Drift Correction
On-board automated drift correction software with factory or user-provided reference materials.

Sample Viewing
Integrated camera and laser target indicator before and during analysis provide proper sample alignment. Includes 2nd “macro camera” for scanning QR or bar codes and for photo-documentation and report generation.

Power
On board rechargeable Li-ion battery, rechargeable inside device or with external charger, AC power.

Regulatory
CE, RoHS, USFDA registered. Class 3b laser. Sample sensor on board, allows for operation under Class 1 conditions subject to local LSO approval.

Laser Raster
On-board Y stage for rastering laser to discrete locations for targeted analysis or averaging.

Connectivity
Built on Google’s Android platform for real-time data exporting, including built-in WiFi (IEEE 802.11b/g/n), Bluetooth (BR/EDR+BLE), GPS and USB-C to connect to virtually any information management system.

Security
Password protected. Multi-user support with configurable access.

Atmosphere
SciAps proprietary Opti-Purge inert argon environment improves spectral signal-to-noise ratio; improves performance in UV range.

Calibration Check
Internal 316 stainless check standard for calibration verification and wavelength scale validation.

Grade Library
500+ grades, multi-library support, libraries may be added or edited.

Analytical Range
One or more lines from all elements in the periodic table.

INCLUDED :

Test stands
Batteries
Cables
Charger
Certified
