Sale Trimble TX6 3D Laser Scanner-HDR-Wi-Fi with Accessories USED
Trimble
The Trimble TX6 laser scanner sets new standards for performance and ease of use in high-speed collection of 3D scan data. Delivering state-of-the-art speed, and high precision, the Trimble TX6 delivers the high quality results needed for comprehensive worksite data collection. The Trimble TX6 lets contractors gather data more quickly from each setup while the long range capacity reduces the number of setups needed to get the job done, all while providing high levels of accuracy and flexibility.
2,554.60€
Trimble TX6 3D Laser Scanner-HDR-Wi-Fi with Accessories USED
INFORMATION :
Scanner: Trimble TX6
Year of construction: 2018
Last calibration: 06.07.2024
9 Month Warranty
The device is in good condition and has slight signs of wear.
3D Laser Scanner
Essential performance, range, accuracy and speed
500k pts/sec Scanning Speed
80m Standard, 120m Extended Scanning Range
Integrated HDR camera, 10 MP resolution Imaging
Essential performance – effective high speed scanning with consistent accuracy over the full scan range. The Trimble TX6 delivers superior performance compared to other similarly priced scanners
High quality data – quickly capture clean data even in bright sunlight. Be confident you will get the quality data you need with less setups to complete the project
Integrated HDR camera – Trimble VISION™ technology provides fast image capture to colorize scans with minimal impact on field productivity
Integrated WLAN – enables wireless remote operation from Windows, Apple and Android mobile devices.
Effective ranges – choose from standard 80 meter range or upgrade to extended 120 meter range to match the standard scan range of the Trimble TX8
Easy to operate – the intuitive onboard interface makes the TX6 easy to learn, reducing startup time. Users will immediately build confidence to successfully complete projects
Performance
500,000 points per second with no compromise on scan quality or range
Typical high density scan time of only 5 minutes
Integrated HDR camera to colorize scans
Easy to use onboard interface with no complex parameters
Integrated WLAN for remote operation from any mobile device
Robust design with IP 54 rating for demanding environments
Upgradeable from 80m standard to 120 meter extended range
Applications
Building Information Modeling (BIM)
Virtual Design Construction (VDC)
Pre-construction as-builts
Quality control
Preservation and restoration
Deformation monitoring
Plant and industrial measurement
Public safety and forensics
Software
The Trimble TX6 streamlines work in the office as well. The scanner’s clean, low-noise data reduces processing time. That data loads directly into Trimble RealWorks software and Trimble Scan Explorer,enabling project collaboration via Internet Explorer. The Trimble TX6 paired with RealWorks also provides efficient data flow into popular CAD programs, Trimble EdgeWise and SketchUp® for point cloud modeling.
Specifications :
PERFORMANCE
Overview
Scanning principle
Vertically rotating mirror on horizontally rotating base
Range principle
High speed time-of-flight powered
by Trimble Lightning technology
Scanning speed2
500,000 pts/sec
Maximum range
80 m on most surfaces
120 m with optional upgrade
Range noise
<2 mm on most surfaces
Range measurement
Laser class
1, eye safe in accordance with IEC EN60825-1
Laser wavelength
1.5 µm, invisible
Laser beam diameter
6–10–34 mm @ 10–30–100m
Minimum range
0.6 m
Max. standard range
80 m on 18–90% reflectivity
Extended range
120 m on 18–90% reflectivity
100 m on very low reflectivity (5%)
Range noise
<2 mm from 2 m to 80 m on 18–90% reflectivity with standard
<2 mm from 2 m to 120 m on 18–90% reflectivity with extended range
Range systematic error
<2 mm
Scanning
Field of view
360° x 317°
Angular accuracy
80 µrad
IMAGING
Integrated HDR camera
10 megapixel resolution, full field of view
Image capture duration
1 min for Standard, 2 min for HDR External camera kits are available for higher resolution HDR images
OTHERS

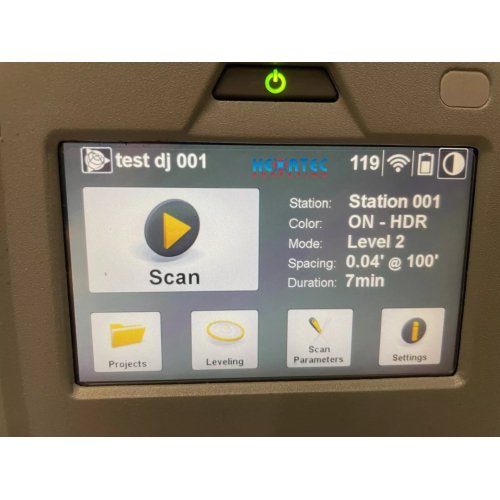

Touchscreen display
TFT-LCD with 24-bit color
Size (mm)
93 (H) x 55.8 (V), equivalent 4.3” diagonal
Resolution
800 x 480 (WVGA)
Luminance resolution
8 bits
Leveling
External bubble, onboard electronic bubble
Dual axis compensation
Selectable on/off
Resolution
0.3”
Range
±5’
Accuracy
1”
Data storage
USB 3.0 Flash Drive
Remote control
Operate with Trimble tablet or other mobile device via WLAN or with Windows 7 or higher PC or tablet via USB cable
PHYSICAL
Dimensions
335 mm W x 386 mm H x 242 mm D
Weight
10.7 kg with tribrach and no battery;
11.2 kg with tribrach and battery
Power supply
76 mm W x 43 mm H x 130 mm D;
Weight: 0.66 kg
Battery dimensions
89.2 mm W x 20.1 mm H x 149.1 mm D
Battery weight
0.46 kg
Power consumption
72 W
Scan time per battery
>2 hours
Instrument case
500 mm W x 366 mm H x 625 mm D
ENVIRONMENTAL
Operating temperature range (non-condensing atmosphere)
–0 °C to +40 °C
Storage temperature
–20 °C to +50 °C
Operating humidity range
Non condensing
Lighting conditions
All indoor & outdoor conditions over entire range (no lighting limitations)
Protection class
IP54

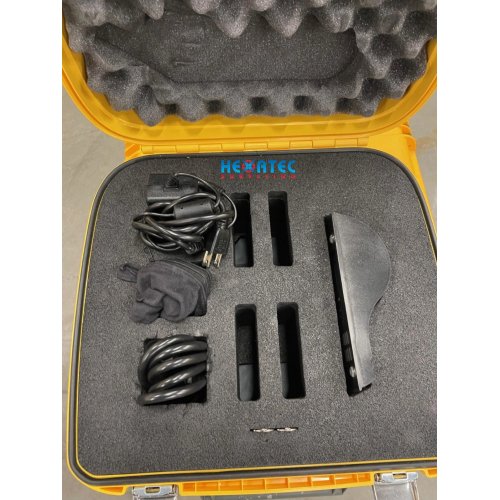

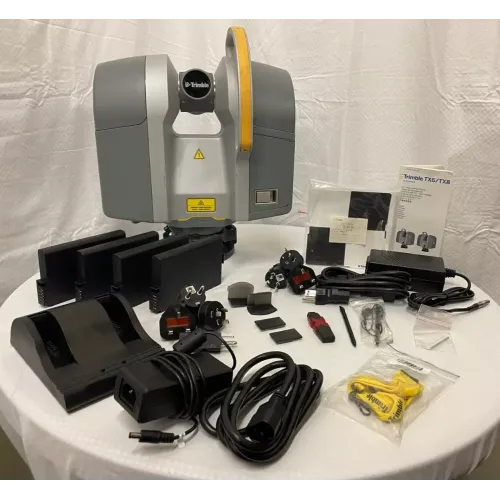

INCLUDED:

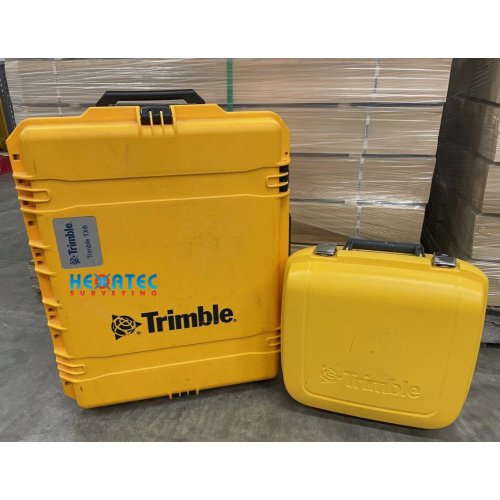

Rolling suitcase
4 batteries
charger

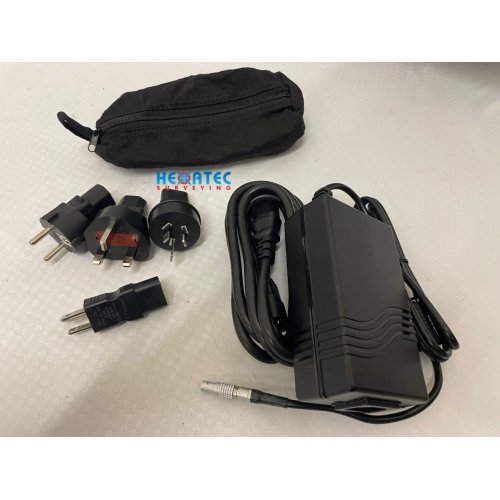

12 V power supply
Adapter for Trimble GEDO
Screen protectors
Also you can check product : Sale Trimble SX12 Scanning Total Station USED
- Availability: 7 In Stock
- Model: TX6
- SKU: 062-13565TTX6
-
