Sale Trimble SX12 Scanning Total Station USED

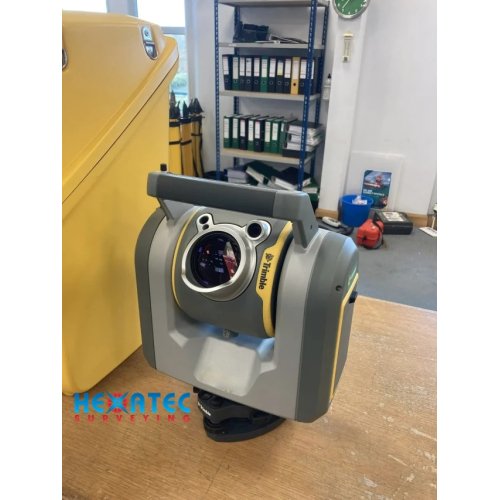

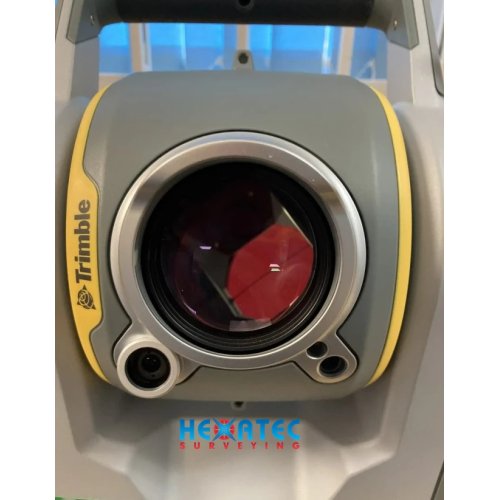

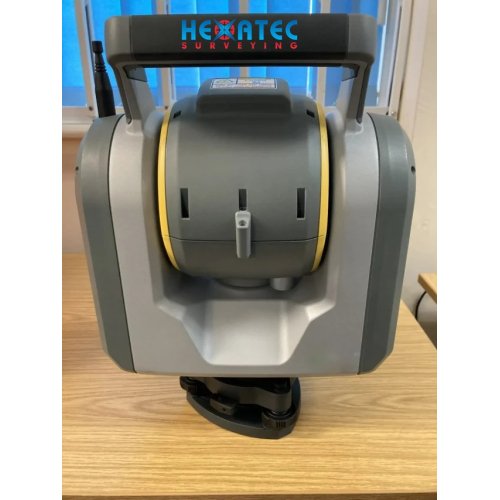

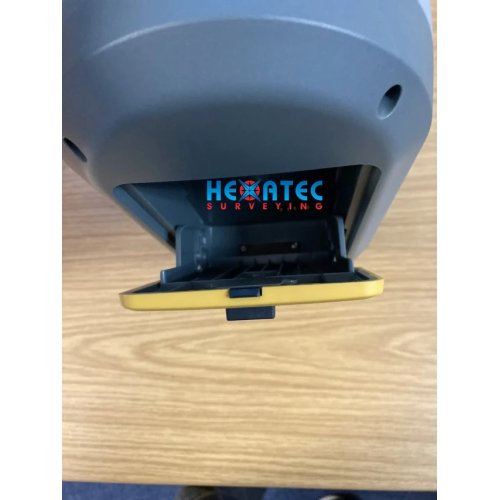

Trimble SX12 Scanning Total Station USED

The industry’s most innovative solution for surveying, engineering and scanning professionals, the Trimble SX12 Scanning Total Station continues the Trimble tradition of unrivalled versatility and ease of use. Combining total station functionality with high-speed scanning and best-in-class imaging, it’s your total solution for flawless operations in the field and at the office.

Benefits and performance
The SX12 collects high-quality, high-speed scan data, providing detailed site context in a seamless workflow that enables informed and faster project-based decisions.

High accuracy, high quality
The Trimble SX12 total station achieves 1” angular accuracy. This high accuracy is combined with our most precise EDM that produces extremely clean point clouds, saving you time cleaning the data later.

Vivid, eye-safe laser pointer
Aim, measure and mark effortlessly with a vivid green laser pointer with the smallest point size in the industry, just 3 mm at 50 m, that's still eye safe.

Specifications:

EDM Accuracy

With prism
1 mm + 1.5 ppm

Prism tracking
2 mm + 1.5 ppm

Reflectorless (laser)
2 mm + 1.5 ppm

EDM Speed

With prism
1.6 s

Reflectorless mode
1.2 s

Scanning

Scanning Speed
Up to 26,600 points/sec

Maximum Distance
Scanning: 600 m
Reflectorless: 800 m
Reflector: 5500 m

EDM Laser Class

Laser Class
1M

Visibility

Field of View
360° x 300°

Angular Accuracy
(H and V)

Angular Accuracy
1"

Average Station Scan Duration

12 minutes
50 mm/50 m (~5 million points)

5 minutes
25 mm/50 m (focused scan)

Integrated HDR Camera System

Resolution
4x5 MP, full-range custom cameras
Image Capture Time    3 minutes (40 standard photos at 360° x 330°)

Laser Pointer

Laser Color
Green

Laser Class
1

Emission Width
3 mm ± 1 mm (1.3–50 m)
6 mm ± 1 mm (100 m)
9 mm ± 1 mm (150 m)

Leveling and Compensation

Physical Level
External geodetic precision

Integrated Compensator
Two-axis, disable during scanning

Compensation Range
±5.4'

Compensation Accuracy
0.5"

Angular Resolution
0.3"

Data Storage/Download

Connectivity
Wi-Fi, USB cable

Remote Control

Recommended Devices
Trimble T100 tablet or TSC7 controller

Connectivity
WLAN, radio, USB

Lighting Requirements

Lighting
No restrictions for scanning

Measurement Positioning Modes

Typical Setup
Oriented total station, scanning station

Data Formats

Download Format    JXL work file

Environmental Protection

Protection Class
IP55

INCLUDED:

- Standard and Laser Pointer enabled
- Carry Case
- Serviced and Calibrated
- 2021 Model

Also you can check product : Sale Trimble Ri Robotic Total Station USED

• Availability: 11 In Stock
• Model: SX12
• SKU: TRIMBLE-SX12
