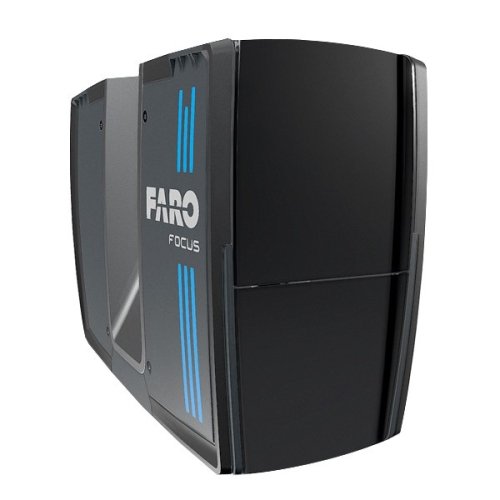

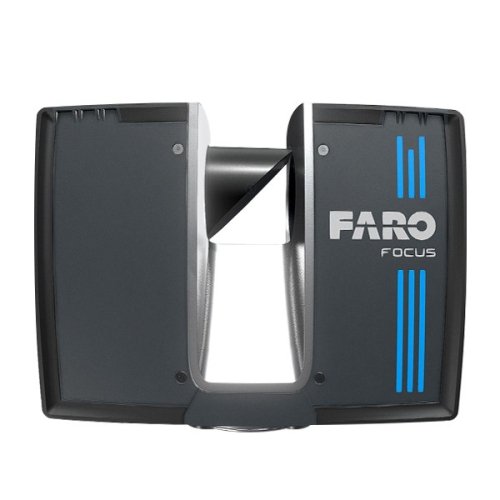

Sale FARO Focus Core 100M Laser Scanner NEW

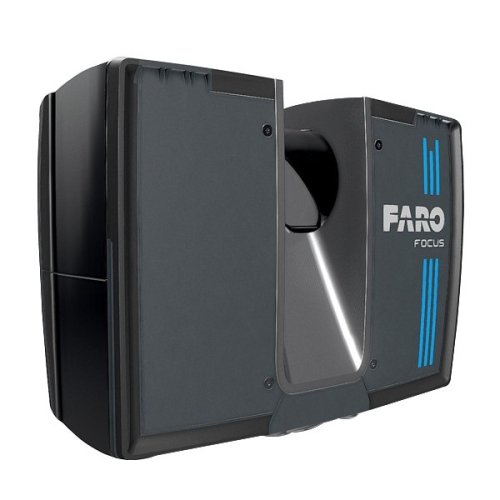

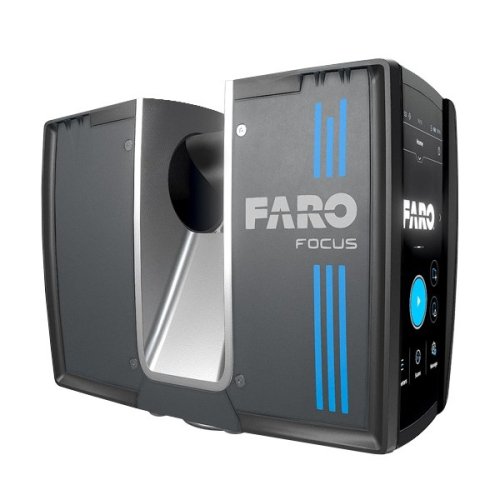

Focus Core LASER SCANNER LASER SCANNER

Versatile 3D Reality Capture
Focus Core has a 100m range that’s well-suited to crime and crash scene reconstruction,
failure investigation, historical preservation, arson investigation, and more.

Ideal for Low Profile Projects
Business-savvy 3D reality capture device, with an excellent price-performance ratio featuring a wide range of professional applications in construction, public safety and building operations.

Exceptional Capturing Efficiency
Enjoy scan speeds as fast as one minute per scan, along with quick loading and responsive system performance. With the option to mount a panoramic camera, Focus Core provides the ability to upgrade and scan in Hybrid Reality Capture mode if this capability is desired.* The Focus system
provides multiple options for processing, storing, and sharing evidence or data, complemented by advanced forensic analysis tools through FARO Zone software.

Digitize Crime Scenes
Crash Scenes, Buildings, and Event Sites 100 meter scanning range, smartphone enabled remote control capabilities, and improved wireless workflow with faster Wi-Fi operation.

FARO is pleased to announce the release of its all-new Focus Core Laser Scanner, the company’s latest reality capture device which opens the door for more scanning applications.

Focus Core features the best price-performance standard on the market and broadens the Focus scanners’ range of potential uses. Fully integrated into FARO’s workflow solutions for application-specific insights, Focus Core serves the company’s key markets in construction, building operations, and public safety and is ideal for low profile projects.

Through an optional subscription to the FARO Stream mobile app for smart devices, Core users will benefit from real-time on-site pre-registration, enabling faster project completion and reducing multiple trips to the jobsite for additional scans. Focus Core is also compatible with FARO Sphere, the company’s cloud-based SaaS platform, which will enable enhanced collaboration of global teams, fast delivery of as-built data, and the ability to make better informed decisions in less time.

Focus Core provides exceptional capturing efficiency, data quality and accuracy for professional applications, with scan speeds up to one minute per scan. Meanwhile, faster loading and system response yields greater data management efficiency when paired with Stream and uploaded to Sphere.

Top features include:

- Up to 70-meter scanning range
- Smartphone-enabled remote control capabilities
- And improved wireless workflow with faster Wi-Fi operation

With Focus Core, Stream and Sphere working as companion solutions FARO customers benefit from faster decision making based on accurate reality data. The ability to acquire better data, faster, and to share the insights gained from it across a digitally connected world, is the key differentiator of FARO’s reality capture ecosystem in today’s global workforce.

Specifications :

Performance Specifications

Range

White, 90% Reflectivity
0.5 – 100 m

Dark-grey, 10% Reflectivity
0.5 – 100 m

Black, 2% Reflectivity
0.5 – 50 m

Range Noise

White, 90% Reflectivity
0.1 mm @ 10 m, 0.2 mm @ 25 m

Dark-grey, 10% Reflectivity
0.3 mm @ 10 m, 0.4 mm @ 25 m

Black, 2% Reflectivity
0.7 mm @ 10 m, 1.2 mm @ 25 m

Max Speed
Up to 2 MPts/sec

3D Accuracy
2 mm @ 10 m, 3.5 mm @ 25 m

Ranging Error
±1 mm

Angular Accuracy
19 arcsec

LaserHDR
Yes

Temperature Range
Operating: +5° to +40° C, Extended Operating: -10° to +55° C, Storage: -10° to +60° C

Additional Performance Specifications

Color Unit

Color Resolution
Up to 266 MPx color

Raw Color Resolution
867 MPx

HDR Camera
13 MPx - 2x, 3x, 5x brackets

Parallax
Minimized due to co-axial design

Deflection Unit

Field of View
300° vertical8 / 360° horizontal

Step Size
0.009° (40,960 Pts on 360°) vertical / 0.009° (40,960 Pts on 360°) horizontal

Max. Scan Speed
97 Hz (vertical)

Laser (Optical Transmitter)

Laser Class
Laser Class 1

Wavelength
1553.5 nm

Beam Divergence
0.3 mrad (1/e)

Beam Diameter at Exit
2.12 mm (1/e)

Data Handling and Control

Data Storage
SATA 3.0 SSD 128 GB and SDXC™ V30 64 GB SD Card; SD3.0, UHS-I / SDXC™ / SDHC™, max. 512 GB

Scanner Control
Via touch screen display and WLAN connection, Control by FARO Stream App (iOS & Android) or mobile devices with HTML5

Interface Connection

WLAN
IEEE 802.11 ac/a/b/g/n 2x2 MIMO, as access point or client in existing networks (2.4 and 5 GHz)

USB
USB 3 port

Additional Features

Dual Axis Compensator
Performs a leveling of each scan with an accuracy of 19 arcsec valid within ±2°

Height Sensor
Via an electronic barometer, the height relative to afixed point can be detected and added to a scan

Compass
The electronic compass gives the scan an orientation

GNSS
Integrated GPS & GLONASS

On-Site Compensation
Creates current quality report and improves compensation automatically

Accessory Bay
The accessory bay connects versatile accessories to the scanner

Inverse Mounting
Yes

Real-time, On-site Registration
Stream App real-time scan streaming, registration, overview map and Sphere cloud upload

Electronic Automation Interface
Available as option, only at point of sale

Digital Hash Function
Scans are cryptographically hashed and signed by the scanner

Rescanning of Distant Targets
Defined areas recaptured in higher resolution at a greater distance

Retake Photos
Select individual photographs with unwanted objects and retake them

General Specifications

Power Supply
19 V (external supply), 14.4 V (internal battery)

Typical Power Consumption
19 W idle, 32 W scanning, 72 W charging

Typical Battery Operation Time
About 4 hours

Typical Scan Time: From start until the scanner can be moved
Gray scale < 1 min | HDR Colored < 1:15 Colored Flash Scan < 30 seconds11

Ingress Protection (IP)Rating Class
54

Humidity
Non-condensing

Weight
4.4 kg (including battery)

Size/Dimensions
230 x 183 x 103 mm

Calibration
Recommended annually

Manufacturer Warranty
2 year

INCLUDED :

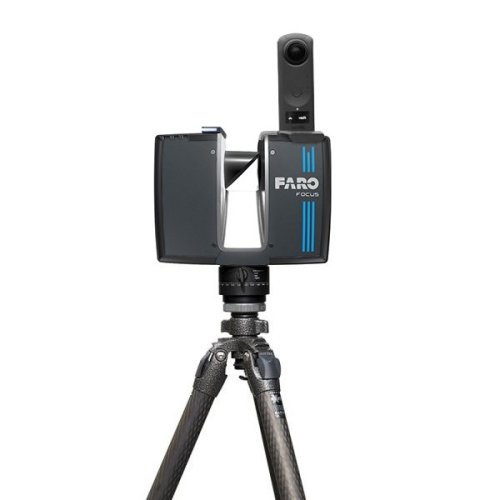

1 - Panoramic 360 Camera for Hybrid Reality Capture
1 - PanoCam Scanner Mount
1 - 1 Year Flash Technology Subscription (28 Second Scan)
1 - Apple iPad w/ Faro Stream Software & Rugged Case
2 - Power Block Rechargeable Scanner Batteries

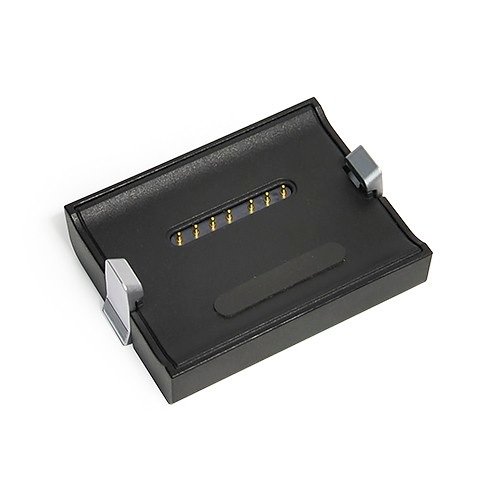

1 - Power Dock Battery Charger w/ Power Supply

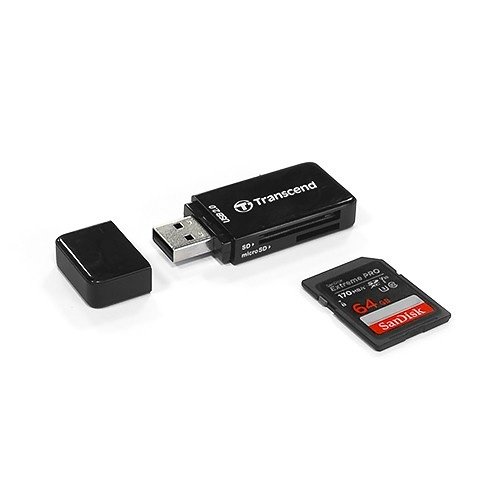

1 - 64GB High-Speed SD Card w/ Reader

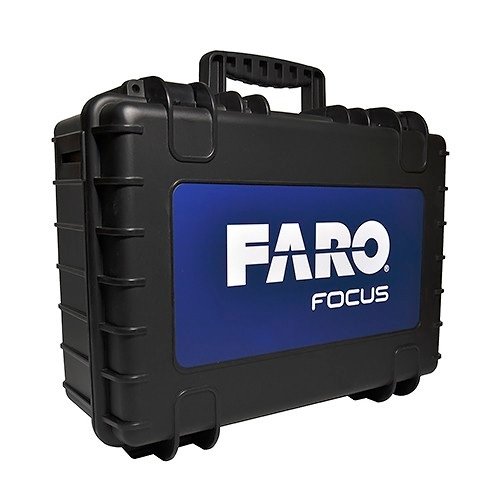

2 - Hard Transport Cases
1 - Carbon Fiber Scanning Tripod w/ Transport Bag
