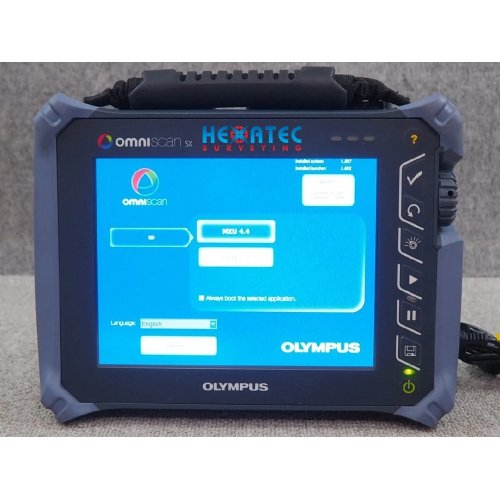

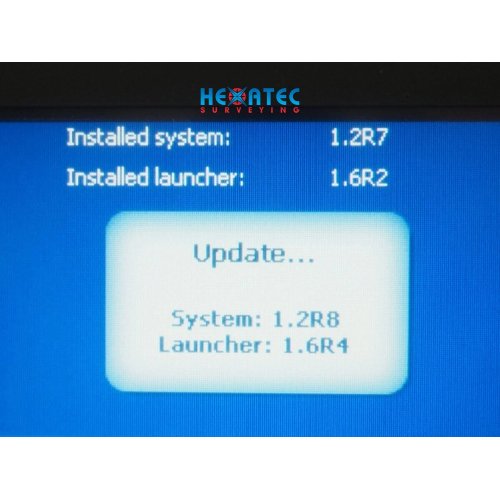

Olympus OmniScan SX Phased Array Ultrasonic Flaw Detector USED

The single group, lightweight OmniScan SX flaw detector features an easy-to-read 8.4-inch (21.3 cm) touch screen and provides cost-effective solutions. The OmniScan SX comes in two models: the SX PA and SX UT. The SX PA is a 16:64PR unit, which, like the UT-only SX UT, is equipped with a conventional UT channel for P/E, P-C, or TOFD inspections.

Evident is proud to introduce the OmniScan SX, a flaw detector that benefits from more than 20 years of phased array experience and shares the OmniScan DNA. For improved ease of use, the OmniScan SX features a new streamlined software interface displayed on an 8.4 in. (21.3 cm) touch screen. A single-group and non-modular instrument, the OmniScan SX is easy to operate and cost-effective for less demanding applications.

The OmniScan SX flaw detector benefits from more than 20 years of phased array technological development and shares the OmniScan DNA. For improved ease of use, the OmniScan SX software features a streamlined and user-friendly interface displayed on an 8.4 in. (21.3 cm) touch screen. A single-group and non-modular instrument, the OmniScan SX flaw detector is easy to operate and cost-effective for less demanding applications.

SX PA and SX UT

OmniScan SX flaw detectors come in two models: the SX PA and SX UT. The SX PA is a 16:64PR phased array unit, which, like the UT-only SX UT, is equipped with a conventional UT channel for pulse-echo, pitch-catch or TOFD inspection. Compared to the OmniScan X4, the SX is 33% lighter and 50% smaller, offering an unprecedented level of portability for an OmniScan unit.

Touchscreen Interface and Advanced Inspection Features

The OmniScan SX touch screen offers a full-screen mode option that maximizes visibility, converting many menu functions into easy touch-screen operations. The intuitive interface provides smooth menu selection, zooming, gate adjustments, cursor movements, and text and value input. These, along with other premium integrated features, including easy-to-follow setup and calibration wizards, a rapid refresh rate for both the S-scan and A-scan displays, and a fast pulse repetition frequency (PRF), make the OmniScan SX flaw detector a highly efficient inspection tool.

OmniScan SX flaw detectors are fully compatible with our extensive portfolio of scanners, probes and accessories, as well as with its dedicated software companions, NDT SetupBuilder software and OmniPC analysis software. Combined, the complete family of software and hardware contributes to an efficient inspection workflow, from design and setup to acquisition and analysis.

Software Features

For greater functionality in weld and corrosion applications, the OmniScan SX software interface was simplified and the response time optimized to provide the best experience possible for customers.

Onboard software features include:

Export C-Scan
End-View with group merge
Interleave
Analysis attenuation gain
Scrolling layouts for easy interpretation
Improved accessibility with more interactive menus
Optimized main menus and wizards
Onboard compound scan
Curved geometry ray-tracing for longitudinal welds

For applications requiring a multiprobe configuration, the multigroup layouts were improved so that the scanner configuration is reflected in the software interface. The position of the different scans is determined by their distance to the center of the weld, providing an easy-to-understand and appealing layout.

Applications

OmniScan SX flaw detectors are versatile tools that simplify your workflow and improve overall productivity.

Phased Array Weld Inspection
The OmniScan SX PA model is at the heart of our manual and semiautomated phased array weld inspection solutions developed for the oil and gas industry. These systems can be used for inspection in compliance with ASME, API, and other code criteria, while offering high-speed detection capabilities, and facilitating indication interpretation.

Corrosion Mapping and Composite Inspection
Zero-degree inspection is more accessible thanks to the OmniScan SX flaw detector. For corrosion or composite inspection, we offer field-proven solutions for detection of anomalies or wall loss.

TOFD Weld Inspection
Time-of-flight diffraction (TOFD) is an easy and efficient approach for the primary detection of weld defects. It is quick, cost-effective and capable of sizing defects present in the volume of the weld, a problematic area for manufacturing defects.

Component Inspection
Using ultrasonic techniques, inspectors can detect cracks, wall loss, and other damage in components. With the capacity for both angle and linear zero-degree beams, the OmniScan SX flaw detector is a cost-efficient solution for this type of single-group inspection.

Specifications :

Housing

Overall dimensions (W x H x D)
267 mm × 208 mm × 94 mm (10.5 in. × 8.2 in. × 3.7 in.)

Weight
3.4 kg (7.5 lb) with battery

Data Storage

Storage devices

SDHC card* or most standard USB storage devices.
*Lexar® brand memory cards are recommended for optimized results.

Data file size
300 MB

I/O Ports

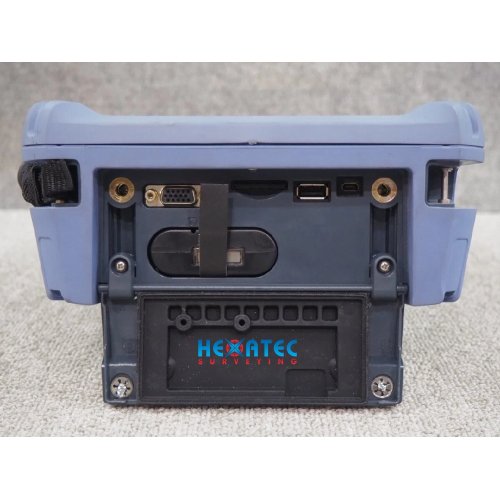

USB ports
2 USB ports, compliant with USB 2.0 specifications

Audio alarm
Yes

Video output
Video out (SVGA)

I/O Lines

Encoder
2-axis encoder line (quadrature, up, down, or clock/direction)

Digital input
4 digital TTL inputs, 5 V

Digital output
3 digital outputs TTL, 5 V, 15 mA maximum per output

Acquisition on/off switch
Yes, through configuration of a digital input

Power output line
5 V, 500 mA power output line (short-circuit protected)

Pace input
5 V TTL pace input

Display

Display size
21.3 cm (8.4 in.) (diagonal)

Resolution
800 pixels x 600 pixels

Brightness
600 cd/m2

Viewing angles
Horizontal: –80° to 80° Vertical: –60° to 80°

Number of colors
16 million

Type
TFT LCD

Power Supply

Battery type
Smart Li-ion battery

Number of batteries
1

Battery life
Minimum 6 hours under normal operating conditions

Environmental Specifications

Operating temperature range
-10 °C to 45 °C
(14 ºF to 113 ºF)

Storage temperature range

–20 °C to 60 °C (–4 ºF to 140 ºF) with battery
–20 °C to 70 °C (–4 ºF to 158 ºF) without battery

Relative humidity
Max. 70% RH at 45°C noncondensing

Ingress protection rating
Designed to meet requirements of IP66

Shockproof rating
Drop-tested according to MIL-STD-810G 516.6

Ultrasound Specifications (applies to OMNISX-1664PR)

Connectors

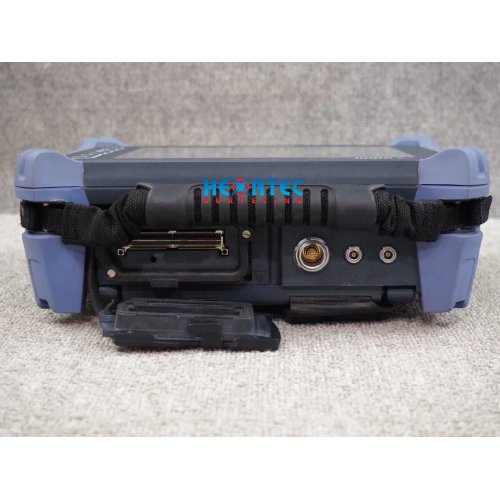

1 Phased Array connector: PA connector
2 UT connectors: LEMO 00

Number of focal laws
256

Probe recognition
Automatic probe recognition

INCLUDED :

Olympus OmniScan SX 16:64 PA Flaw Detector (BC# -L/T*)
Battery Pack
AC Adapter/Charger
Power Cord
User Manual On Cd-ROM
Carrying Case (G)
