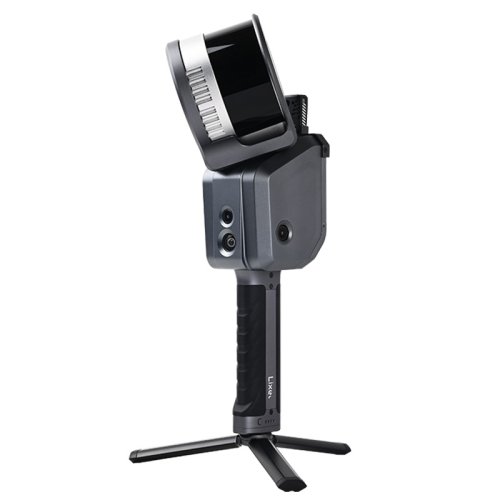

Sale Satlab Lixel X1 Handheld SLAM Lidar Scanner NEW

Satlab Lixel X1 Handheld SLAM Lidar Scanner NEW

Lixel X1 real scene 3D reconstruction scanner-a compact, powerful, and precise LiDAR scanner for capturing real-world scenes and generating detailed 3D models instantly without post-processing.

Powered by advanced SLAM technology, this lightweight and integrated device offers real-time data capture and immediate data preview.

1. Fast Capturing & Real Time Modelling
Utilizing real-time data decoding and modeling technology, point cloud data is immediately generated within a mere 5 seconds inside the precise LiDAR scanner right after scanning. This allows for the immediate monitoring of reconstruction effects in the LixelGo software, ensuring high-quality data.

2. Integrated Design
Lixel X1’s integrated design of LiDAR, visible-light camera, motion camera, high-precision inertial navigation technology, and high performance computing eliminates the tedious operation steps and makes your scan easier and simple. And the complex structure is of excellent heat-sinking capability.

3. Continuous Operation & Breakpoint Scanning
60 minutes of ultra-long continuous operation time and high capability in resuming the scanning from the break-point. No need for segmented scanning in large scenes and greatly improves the efficiency of measurement and data analysis.

4. Multi-platform Brackets
In addition to being portable, the precise LiDAR scanner Lixel X1 can be attached to a backpack, a vehicle and UAV. The flexibility makes the Lixel X1 a flexible mobile mapping solution in a variety of working locations.

Applications
Topographic Mapping
Agriculture & Forestry Survey
Engineering Survey
Volume Calculation
Emergency Mapping
Underground Space

Specifications :

Operation Range
0.‎05 – 120 m

Laser
Class 1/905nm

Channels of Resolution
16

Accuracy
<2 cm

FOV
360 x 270°

Points/s
320,000

Processing
Real-time processing

Display
Live streaming point cloud

Carrier
Handheld / Backpack / UAV

Scanner Weight & Size
<1.‎9 kg (With Battery), 138×90×381mm

Camera
Wide field×1, positioning×3

Operation Temperature
-20°C – 50°C

Battery Life
1.‎5 h

Single Scanning Time
60 min

Ingress Protection
IP54

Storage Capacity
1T SSD

Point Cloud Format
.‎las, .‎laz, .‎e57

Input Voltage
V-mount 46.‎8 Wh, 14.‎4 v battery

Po-wer Consumption
<30 w

INCLUDED :

Lixel X1 Scanner SLAM
Handle Tripod
Battery x2
Battery Charger
GCP Benchmark
Desktop software dongle
Type C cable
Bracket  for camera/RTK module
RTK module
Camera
Transport case

• Availability: 12 In Stock
• Model: Lixel X1
• SKU: SatlabLiX1
• Brand:
