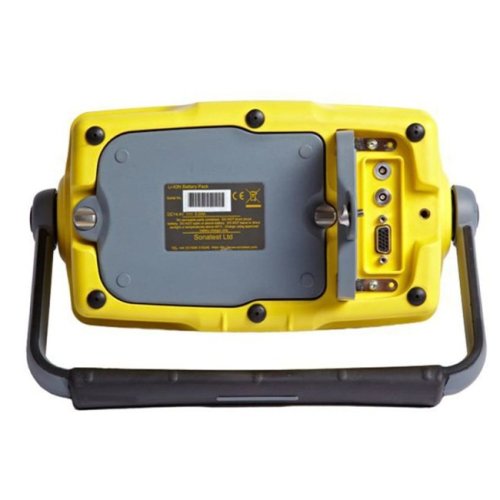

Sale Sonatest Masterscan 700m Narrowband Ultrasonic Flaw Detector NEW

Sale Sonatest Masterscan 700m Narrowband Ultrasonic Flaw Detector NEW

The Masterscan 700M offers the end user a high end narrowband flaw detector with a full VGA display, sync and proportional outputs, sync input and a Spike and Square Pulser.

Features can be added and upgrades performed in the working environment, reducing downtime and increasing working flexibility. High levels of near surface resolution, penetrating power (450V pulser - square and spike) and excellent signal to noise ratio are key functions in the Masters can range.

Typical applications are Weld Fabrication, Corrosion Detection, Composite Inspection, Bond Testing, Forgings & Castings, Power Generation (including EMATS) and general UT inspection.

Features

Reliable, Rugged & Robust

An instrument's ability to perform in harsh environments with proven reliability is an important aspect of flaw detector ownership and this is enhanced by the Masterscan's outstanding battery performance which is up to 13.5 hours from full charge. The Masterscan's enclosure is constructed using automotive grade impact resistant materials, offering excellent water resistance. Explosive Testing MIL810-G standards have been passed, together with environmental testing which has confirmed the instrument fully functioning at temperatures above 55°C. The Masterscan D-70 has a colour transflective VGA display and maximum readability is achieved through adjustable brightness and the choice of 9 colour palettes, including black-on-white LCD emulation mode.

Advanced Defect Sizing Tools as Standard

Weld and pipe inspection are major applications for the Masterscan series and they are equipped with the latest software tools for defect sizing. The use of integrated sizing software reduces analysis time and speeds inspection. Multiple standard sizing techniques are essential for service companies working to different customer standards, especially as service work becomes more international and operators are required to work to different codes.

Sizing Techniques and Software Options include:

DAC (Standard)
Split DAC & DGS / AVG (Option)
TCG (Option)
Backwall Echo Attenuation (BEA) Option (requires TCG)
AWS (Option)
AVG / DGS Option
API (Option)
Interface Trigger (Option)
Corrosion Software (Option)
Dryscan Function (Option)

UT-Lity Data Management Software

UT-Lity software provides everything you need to manage your inspection data. The Standard version is FREE with every instrument and give you the ability to view, move and manage Calibrations, A-Scans, B-Scans and Thickness Logs both on the instrument and on your PC. With UT-Lite you can also create customised inspection report templates, cut-n-paste information to other applications and create printable pdf documents.

Load, store, manage files both on the PC and on a connected flaw detector
Save, analyse, colour code and export thickness logging data to spreadsheets/asset management software
Update the Flaw Detector and Firmware as and when updates become available on our website.

Specifications :

Masterscan 700m

Measurement Modes
7 modes

Rectification
RF, Full wave, +ve half-wave and -ve half-wave

Waveform Smoothing
None, Fill and Smooth

Aut°Cal
Provides automatic calculation of velocity and probe zero from two reference echoes

Reference Waveform
Displays a previously stored A-Log in a colour different from the active display: enabling a quick visual check of the differences.

Active Peak Memory
Retains all A-Scans on screen for echo-dynamic pattern analysis, with the active A-Scan displayed in a separate colour

Active Edge
Unique Active Edge Mode for near-surface resolution

AGC
Automatic Gain Control automatically sets the signal in Gate 1 to a level between 10% and 90% FSH, tolerance between 5% and 20%

Connections

Encoder
D-Sub 15 pin connector

External Video
YES

Proportional output
YES

External Sync
YES

USB Connection
Internal storage shown as Memory Device

Transducer sockets
BNC or LEMO (factory option)

Measurements

Gates
2
DAC
YES

Split DAC
Option

IFT
Option

TCG
Option

AVG/DGS
Option

AWS
Option

API
Option

BEA
Option

Corrosion TLog
Option

BChart
Option

Dryscan
Option

Transmitter

PRF
Adjustable 5Hz to 5kHz. External sync also available
Pulser(Voltage)    100- 450V -ve spike and square wave
Pulse width from 35nS to 2500nS
Rise/Fall times <15nS year

INCLUDED :

Battery Charger
SS/MS Battery Pack
DFD Storm Case
Masterscan Screen Cover
Masterscan Replacement Bag
RCA Video Output Cable
USB Type A Male Cable Assy
Cable DFD to PC
165040
Falcon Proportional O/P Lead
Masterscan Replacement Screen Cover
Flaw Detector Mains Pack
Flaw Detector Mains Pack
Flaw Detector mains Pack
BNC to BNC 50Ohm
BNC Female to Lemo Male
Lemo (M to Lemo OO (F)
152018    BNC (M) to LEMO (F) Adaptor

Also you can check product : Sale Sonatest WAVE Interactive Digital Flaw Detector NEW

• Availability: 39 In Stock
• Model: Masterscan 700m
• Brand:
