Sale Shining 3D Freescan Combo Handheld 3D Laser Scanner NEW
Shining 3D

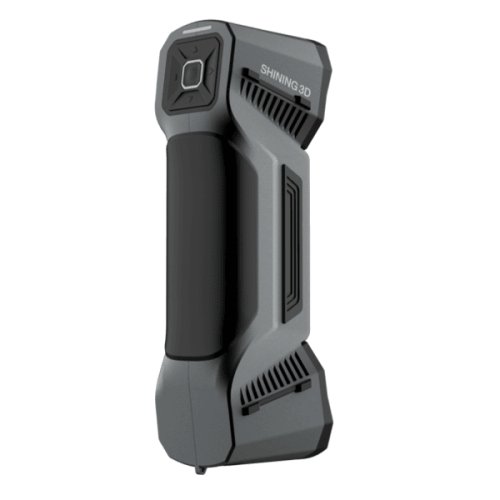

The FreeScan Combo features hybrid Laser/Infrared scanning technologies and 4 scanning modes, making this hand-held 3D scanner highly versatile and suitable for a wide range of applications. Capable of achieving outstanding accuracy, this scanner is also extremely compact and light-weight.
4,907.42€
Shining 3D Freescan Combo Handheld 3D Laser Scanner NEW
3D Scanning Technologies Combined
The FreeScan Combo features two 3D scanning technologies in one scanner - offering outstanding versatility for a vast range of applications. Use blue laser scanning with markers to achieve metrology-grade accuracy, even for dark or reflective surfaces, or VCSEL Infrared scanning for quick, direct scanning without using markers.
Ideal for automotive industries, aerospace, rail transportation, mold manufacturing, casting and foundry and medical industries.
Compact and Portable
Cutting-edge technology packed into a small, light-weight unit for maximum portability and ease of use - obtain high-quality scans in hard to access areas with minimal fatigue.
The FreeScan Combo is available bundled with either Solid Edge Shining3D Edition or Geomagic Essentials, for an even smoother processing/reverse-engineering workflow. Choose your option above.
FreeScan Combo Multi-mode Scanning
Multi-Line Mode
Use 26 laser lines for smooth and accurate global scanning with up to 0.02mm accuracy.
Fine Detail Mode
Capture the highest level of detail with the 7 parallel laser line scanning mode.
Single Line Mode
Single-line laser scanning and optimised lens angles allow accurate capture of deep holes and recesses.
Infrared Mode
Scan feature-rich areas quickly without markers using Infrared scanning mode.
Specifications :
High-speed Scanning
50 (Combo+) or 26 (Combo) laser lines
Detailed Scan
7 laser lines
Deep Pockets
1 single line
No Markers Scan
Infrared mode
Accuracy
0.02 mm
Max. FOV
520 × 510 mm / 600 × 600 mm
Volumetric Accuracy
0.02 + 0.033 mm/m
Point Distance
0.05 ~ 10 mm / 0.1 ~ 3 mm
Scan Speed
Up to 3,600,000 points/s
Weight
620g
Certifications
CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TISAX
Accuracy Certification
VDl/VDE 2634 Part 3 (ISO 17025 certificated lab)

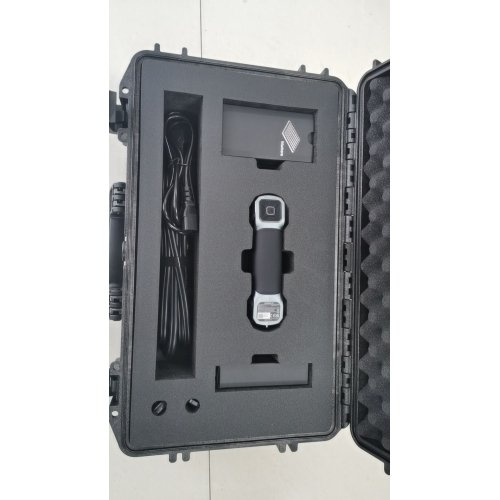

INCLUDED :
3D scanner FreeScan Combo
USB Drive
Dongle
Power Adapter
Calibration Plate
Certificate and Quick Start Guide
Markers
Power Cable
USB Cable
Also you can check product : Sale Shining 3D EinScan Rigil Tri-Mode Laser 3D scanner NEW
- Availability: 37 In Stock
- Model: Freescan Combo
- SKU: 062-12978
-
