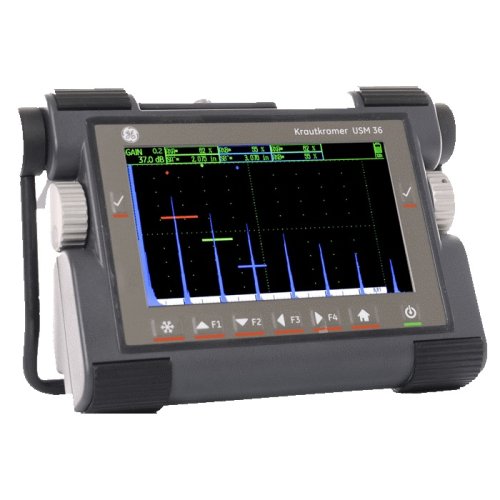

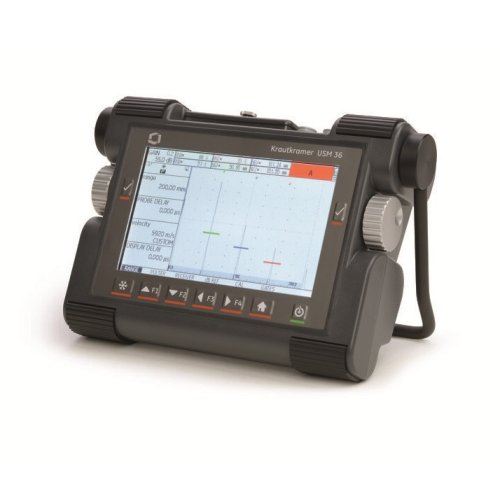

The Krautkrämer USM 36 combines the 21st century operating platform with the reliable and robust hardware of Waygate Technologies’ well-established Krautkrämer portable flaw detection instruments. It incorporates a range of innovative features to ensure that this new instrument is adopted as the everyday workhorse of flaw detectors by NDT inspectors globally.

The harshest industrial environments require rugged and reliable NDT inspection products specifically designed to stand up to any conditions.

Perform comprehensive and highly accurate NDT flaw detection inspections on industrial assets without interrupting operations or putting personnel at risk.

Highlights

Benefits
-Simple and efficient operation
-Few inspection tools are more versatile
-Ideally suited to stand up to a wide range of inspection challenges

Features
-Flexible data reporting and storage
-Comprehensive connectivity
-Can be used in the harshest of environments
-Largest viewable A-Scan display in its class
-Available in three versions

Applications
-Weld inspection in the Oil & Gas, Power Generation, and Petrochemical Industries
-Precise thickness measurement in the Automobile Industry
-Corrosion measurement in the Oil & Gas, Power Generation, and Petrochemical Industries
-Inspection of fine-grained and long work forgings
-Inspection of special materials, including those used in the Aerospace and Automobile industries

Specifications :

Display

Display Shift ( Delay)
-15 … 3,500 μs

Probe Delay
0 … 1,000 μs

Velocity
250 … 16,000 m/s

PRF
Automatically optimized 15 … 2,000 Hz,
3 automatic setting modes: Auto Low,
Auto Med, Auto High, Manual

Display Screen

Size Diagonal
7"

Active Range (W x H)
152.4 × 91.44 mm2

Resolution (W x H)
800 × 480 pixels

Range
4 … 14,108 mm (555“) for longitudinal wave

Connectors

Probe Connectors
2 × LEMO-1 or 2 × BNC

USB Interface
USB type B connector

Service Interface
LEMO-1B, 8 pin

Pulser

Pulser Mode
Spike pulser, optionally: Square-wave pulser

Pulser Voltage (SQ Mode)
120 … 300 V, in steps of 10 V with a tolerance of 10%

Pulser Falling/Rising Time
max. 10 ns

Pulser Width (SQ Mode)
30 … 500 ns, in steps of 10 ns

Pulser Amplitude (Spike Mode)
low: 120 V, high: 300 V

Pulser Energy (Spike Mode)
low: 30 nS, high: 100 nS
Damping    50 ohms, 1000 ohms

Receiver

Digital Gain
Dynamic range 110 dB, adjustable in steps of 0.2 dB

Analog Bandwidth
0.5 … 20 MHz

Equivalent Input Noise
<80 nV/√Hz

Filters
Broadband 1-5 MHz / 2, 2.25 MHz / 4, 5 MHz / 10 MHz / 13, 15 MHz

Rectification
Positive half-wave, negative half-wave, full wave, RF signal

Gates

Independent Gates
Gates A and B (triggering by gate A),
Gate C (option, triggering by gate A or B)

Measurement Mode
Peak, Flank, J-FLANK, FIRST PEAK

Memory

Card Slot
SD-card slot for all standard SD-cards

Capacity
8 GB, SD-card

Datasets
UGO data structure in ASCII

Reports
JPG or BMP format

General

Battery
Li-Ion, operating time: 13 hours with full charge
Charging method (standard): internal with power adapter
Charging method (optional): external charger
Charge level: proportional charge level indicator

Power Adapter
Universal power supply unit 100 … 240 VAC, 50/60 Hz

Size (W x H x D)
255 × 177 × 100 mm (10” × 7.0” × 3.9”)

Weight
2.2 kg incl. battery

Languages
Bulgarian, Chinese, Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Swedish.

Damp Heat and Humidity (Storage)
EN 60068 Part 2-30
6 cycles: 9 hrs at 25°C up in 3 hrs to 55°C, 9 hrs at 55°C then down to 25°C in 3 hrs, at93% humidity

Vibration
EN 60068 Part 2-6
2g per axis, 5 … 150 Hz, 1 oct/min, 25 cycles

Shocks
EN 60068 Part 2-27
1000 cycles per axis, 15 g, 11 ms, half-sine

Enclosure
IP66 according to IEC 60529

Operating Temperature
-10 … 55°C

Cold Operation
-10°C for 16 hrs, 502.5 Procedure II

Heat Operation
55°C for 16 hrs, 501.5 Procedure II

Storage Temperature
-20 … 60°C, without battery

Cold Storage
-20°C for 72 hrs, 502.5 Procedure I

Heat Storage
70°C for 48 hrs, 501.5 Procedure I

Options

AWS
AWS calibration tool, according to AWS D1.1
Structural Welding Code

DAC/JISDAC/CNDAC
DAC calibration tool, 16 points, according to EN
1712, EN 1713, EN 1714, ASTM E164, ASME,
ASME III, JIS Z3060, GB11345
TCG: 120 dB dynamic, 110 dB/μs slope

DGS
DGS calibration tool, according to: EN 1712, EN 1713, EN 1714, ASTM E164

Data logger
Grid file creation

3G
Gate C

SWP
For pulser parameter optimization, voltage setting 120 … 300 V in steps of 10 V, pulse width setting 30 … 500 ns in steps of 10 ns

Phantom-PRF
Phantom-PRF for the identification of erroneous
echoes caused by multiple
reflections in low-attenuation materials

BEA
Blackwall Echo Attenuation

INCLUDED :

1 Lithium Ion Rechargeable Battery Pack
1 Lithium Ion Battery Charger /AC Power Supply
1 SD Card (2 GB)
1 USB Download Cable
1 Transport Case
1 Quick Reference Operating Card
1 Operating Manual on CD
1 Certificate Of Conformity
