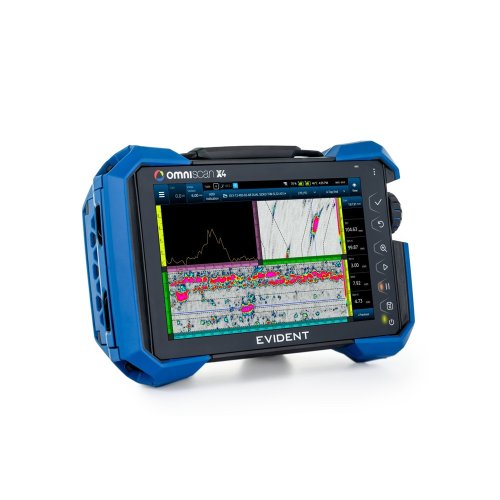

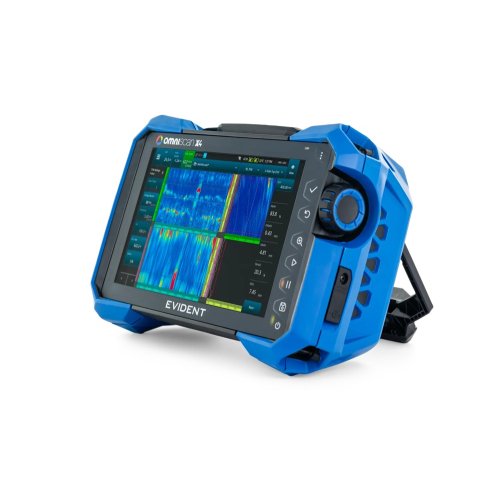

Sale Olympus OmniScan X4 Phased Array Flaw Detector NEW

Olympus OmniScan X4 Phased Array Flaw Detector NEW

Be Ready for What’s Next: OmniScan X4 Flaw Detector

A portable yet powerful solution, the speed and versatility of the OmniScan™ X4 multitechnology series boosts your productivity while increasing confidence in your assessments. Exploit its advanced phased array capabilities, efficient total focusing method (TFM), and innovative phase coherence imaging (PCI) to detect and interpret challenging flaws and secure the integrity of your assets by identifying damage earlier.

Proven to Perform, Trusted to Deliver
Each OmniScan X4 unit is a complete multitechnology inspection toolbox, enabling you to exploit multiple ultrasonic testing techniques. Leverage its detection and measurement capabilities to accurately identify and evaluate the severity of damage before it becomes critical, protecting welds, components, and assets most susceptible to cracking or corrosion.

Assess with Certainty Using PCI
Eliminate doubt through phase coherence imaging’s capacity to detect and accentuate historically difficult-to-detect flaws, including hook cracks and stress corrosion cracking (SCC). Use PCI to clearly distinguish individual flaws in colonies of fine cracks and characterize them with certainty.

3x Faster TFM Acquisition Rate
Obtain crisp TFM imaging at up to three times faster* acquisition rates than the predecessor model (X3 64) thanks to the OmniScan X4 series’ improved processing power. Exploit the increased speed and 128-element capacity of the OmniScan X4 64:128PR unit to perform TFM inspections with extended focusing capabilities.

Gain Instant Insights and Eliminate Inefficiency

Twice the Confidence with Twin TFM and PCI

Exploit the individual attributes of PCI and TFM to thoroughly investigate the volume of welds from both sides simultaneously. Use two probes to scan the weld in one pass, displaying TFM and PCI results to compare, measure, and confirm your characterization of indications with efficiency and precision.

Convenient Application Presets
Improve the learning curve and increase the reliability and consistency of inspections between operators with the OmniScan X4 application presets. Even low-level users and new users can produce an optimal PA or PCI configuration within minutes.

With options for corrosion and composite inspections, these preprogrammed parameters simplify scanning setups using HydroFORM, FlexoFORM, and RollerFORM scanners, and you can adjust the settings as needed.

Ease Complex Configurations
The OmniScan X4 scan plan’s intuitive step-by-step 3D graphics ease your inspection setups, from the most basic to the most complex.

When setting up your raster scan plan, the scan axes can be customed named and you can create a datum reference point relative to the asset. These real-world references as well as the true orientation correction, greatly ease the creation of an intuitive schematic representation of the inspection data for your report.

Applications

Choose the Right Model for Your Application

Each model of the OmniScan X4 series has the capability to drive probes with a certain number of elements, offering varying focusing capabilities for different materials and thicknesses. Here is an overview of the types of applications that the four models are most proficient at performing. Contact us or your Evident representative for more details.

64:128PR
Higher-productivity weld inspection in thicker, coarse-grained materials:

- Very thick welds, ~100 mm (using a 64-element aperture to improve sizing accuracy)
- Austenitic/CRA
- Intensive TFM (HTHA)
- Advanced oil and gas and power gen
- FMC collection and application development

Complete NDT Solutions
To meet your application needs, Evident offers complete solutions including probes and wedges, scanners, and software to complement your OmniScan X4 unit. Explore our range of equipment solutions for these applications.

HTHA Inspection Solutions
OmniScan X4 Phased Array Flaw Detector with TFM and PCI
Detect and Define Smaller HTHA Cracks

Detecting HTHA early and reliably is so challenging that multiple inspection methods are often used in conjunction to maximize the probability of detection. Time-of-flight diffraction (TOFD), along with focused phased array (PA) and the total focusing method (TFM), especially using Dual Linear Array™ (DLA) probes, have shown to be particularly effective inspection techniques for this application.

OmniScan X4 flaw detector fully supports these methods, as well as innovative phase coherence imaging (PCI), which enhances small flaws and crack tips. OmniScan X4 instruments also offer a variety of onboard software tools to ease your setup and analysis workflow.

- Integrated DLA probe configuration and scanner configuration
- High-resolution TFM images (up to 1024 × 1024 points)
- Software tools to optimize the TFM inspection process, from setup to analysis (scan plan with AIM model, automatic TCG, sparse firing, soft gain and palette slider, live TFM envelope and image filters, gates, and alarms)
- 64-element TFM aperture and 128-element extended TFM aperture (OmniScan X4 64:128PR model)
- Phase coherence imaging to enhance small defects and crack tips (all OmniScan X4 units)
- Acquire up to 8 TOFD and phased array groups simultaneously for efficient screening
- Acquire and display up to 4 TFM and PCI groups at once
- Plane wave imaging (PWI) available with TFM and PCI (using the OmniScan X4 unit with linear array probes).

Weld Solutions
OmniScan X4 Phased Array Flaw Detector
Get the Most Out of Your Inspection

The Omniscan X4 flaw detector is a comprehensive multitechnology toolbox, equipped with setup, imaging, and analysis to tools that make weld inspection easier

- Do your complete setup using the intuitive onboard scan plan without having to use a PC
- Improved fast calibration
- Enhanced image resolution and geometrically correct flaw representation with multigroup total focusing method (TFM) imaging and phase coherence imaging (PCI)
- Twin TFM/PCI images the volume of welds from both sides, using two probes, displaying TFM and PCI data simultaneously on the display
- Standard PR configuration enables the use of larger apertures on dual array probes (up to 128-element extended TFM aperture with the 64:128PR model)

The OmniScan X4 flaw detector excels at a broad range of weld inspection applications, including:

In-service and construction welding
Pressure vessels
Process pipes
Boiler tubes
Pipeline
Wind tower
Structural construction
Corrosion-resistant alloys and cladded materials (austenitic, nickel, and other coarse-grained materials)

Combine Techniques for Full Weld Coverage and Improved Efficiency
Whether you’re using automated, semiautomated, or manual scanning methods, the OmniScan X4 flaw detector supports many ultrasound techniques. In some cases, you can combine multiple techniques in the same scan to improve the probability of detection and make it easier to identify and size indications.

Improved TOFD Experience
The simplified TOFD interface reduces the number of steps required for acquisition and analysis. The single TOFD calibration menu ensures all the necessary controls are easily accessible.

Data Management and Analysis Tools for Weld Inspection
Side-by-side view on OmniPC software enables you to scan one side of the weld and compare it to the other side of the weld on the same screen, making it easier to characterize indications
OmniPC software’s main toolbar provides instant access to the most commonly used controls during analysis

Built for Demanding Environments

- Bright, clear images on a 10.6-inch WXGA display
- Responsive touch screen even when wearing gloves, working with couplant, or use in the rain
- IP65 certified dustproof and water resistant and drop tested
- Compatible with Evident probe splitters and accessories

Corrosion Solutions
OmniScan X4 Flaw Detector Corrosion Inspection without the Complications

Phased array for corrosion inspection offers many benefits, including excellent coverage and resolution. But becoming proficient in phased array techniques can be challenging. The X4 flaw detector combines advanced functionality with thoughtfully designed software and simplified menus so that you can get accurate data with fewer complications.

- Advanced tools like total focusing method (TFM) and phase coherence imaging (PCI) facilitate the detection of corrosion and other challenging damage mechanisms, such as HTHA and HIC
- PCI and TFM images with up to a 64-element aperture for excellent resolution with minimal setup
- Easier to use for any level of operator
- Setting up sophisticated scan plans, including the the HydroFORM Scanner FlexoFORM Scanner is much easier thanks to application presets for corrosion

Built for Demanding Environments

- Highly visible images on a 10.6-inch WXGA display
- Responsive touch screen even when wearing gloves, working with couplant, or use in the rain
- IP65 certified dustproof and water resistant
- Operates in a temperature range of -10 °C to 45 °C (14 °F to 113 °F) without compromising the IP65 certification

Specifications :

General and Enclosure

Size
335 mm × 221 mm × 151 mm (13.2 in. × 8.7 in. × 5.9 in.)

Weight
5.7 kg (with 1 battery) for model 16:64PR
5.9 kg (with 1 battery) for models 16:128PR, 32:128PR, and 64:128PR

Onboard Storage
1 TB internal SSD storage. Maximum 25 GB individual file size. Storage extensible using external USB drive

Storage Devices
SDHC and SDXC cards, or most standard USB storage devices

Wireless
Wi-Fi 6E and Bluetooth® 5.3 onboard

PAUT Connectors
1 PA connector, 2x UT channels (2 P/R connectors each)

Available Configurations and Groups
OmniScan X4A – 64 :128PR : 8 groups
OmniScan X4A – 32 :128PR : 8 groups
OmniScan X4A – 16 :128PR: 8 groups
OmniScan X4B – 16 :64PR: 2 groups (PA, UT, or TFM) or a specific configuration of 2 PA groups + 1 TOFD

Drop Testing
Drop-tested according to MIL-STD-810G

Ingress Protection Rating
IP65 Certified (completely protected against dust and water jets from all directions (6.3mm nozzle))

Display
269 mm (10.6 in.) TFT LCD with resistive touch screen, 1280 × 768 pixels

Battery
2 hot-swappable Lithium-ion batteries included, 87 Wh each

Battery Life
Minimum of 5 hours (using ISO18563 standard setup parameters)

Operating Temperature
−10 to 45 °C (14 °F to 113 °F)

Storage Temperature
-20 °C to 60 °C (-4 °F to 140 °F) (with battery inside)
-20 °C to 70 °C (-4 °F to 158 °F) (with no battery inside)

Inputs and Outputs

Ports
2x USB 3.1, 1x video out (HDMI), 1x SDHC memory card slot, 1x communication (Ethernet)

Encoders
2-axis encoder line (quadrature or clock/direction)

Digital Inputs and Outputs
4 digital inputs (TTL), 4 digital outputs (TTL) including one reserved for acquisition on/off

External DC Supply
18 VDC, circular 2.5 mm diameter connector, center-positive

General Ultrasonic Specifications

Effective Digitizing Frequency
Up to 100 MHz; User-adjustable compression factor

Maximum Pulse Repetition Rate (PRF)
Up to 20 kHz; Actual maximum PRF is often limited by physics (the time of flight required to obtain the ultrasonic signals)

Maximum Number of A-Scan Data Points
Up to 16,384

A-Scan Bit Depth
16 bits

Rectification
RF, full wave, half wave+, half wave−

Video Filtering
Smoothing (adjusted to the probe frequency range)

Filtering
PA channel: selection of band-pass filters, high-pass filters, and averaging
UT channel: selection of low-pass filters, band-pass filters, high-pass filters, and averaging

Time-Corrected Gain (TCG)
PA: 40 dB per step of min. 0.1 dB
UT: 100 dB per step of min. 0.1 dB
Maximum slope of 40 dB/10 ns

Supported Beam Types (Groups)
Selection of phased array ultrasonics (PAUT) beam types (linear, sectorial, and compound), single ultrasonic beam (UT), time-of-flight-diffraction ultrasonics (TOFD), total focusing method (TFM), phase coherence imaging (PCI), full matrix capture (FMC), and plane wave imaging (PWI)

Raw Full Matrix Capture (FMC) Data Collection
Available only with model 64:128PR when using the NDT Device API or the OmniScan Black Box onboard application used with external acquisition software.

PAUT Specifications

OmniScan X4 Variant
64:128PR

Maximum Pulsing Aperture
64

Maximum Number of Receiving Channels
128

Number of Focal Laws
1024 maximum total (512 maximum per group)

FMC / TFM / PCI / PWI SpecificationsOmniScan X4 Variant
64:128PR

Maximum Extended Aperture (FMC)
128

Maximum Aperture (PWI)
64

Maximum TFM or PCI Groups
4

Live TFM Envelope
Yes – Actual Hilbert Transform

Image Resolution
Up to 1024 × 1024 (1M points) for each TFM or PCI wave set

FMC Supported Wave Sets (TFM or PCI Modes)
Pulse-Echo: L-L, T-T, and TT-TT
Self-Tandem: TT-T, TT-TTT, LL-L, LT-T, TL-T, TT-L, and TL-L

PWI Supported Wave Sets (TFM or PCI Modes)
Pulse-Echo: L-L and T-T

INCLUDED :

OmniScan X4 unit 64:128PR
2x Lithium-ion batteries (87 Wh each) providing ~5 hours of operation
Dual-bay smart battery charger (compatible with 100 – 240 VAC)
AC power adapter and cord
USB 3.1 cable
Ethernet cable
HDMI video-out cable
SDHC/SDXC card (typically 32 GB pre‑installed)
Stylus pen for touchscreen
User manual & quick-start guide
Soft-sided carrying case and a hard case
Wi‑Fi/Bluetooth antenna
1-year license or access code for onboard MXU 6 software (quarterly updates included thereafter)
Warranty card (standard 2-year coverage in most regions)
Calibration plates
Calibration certificate
