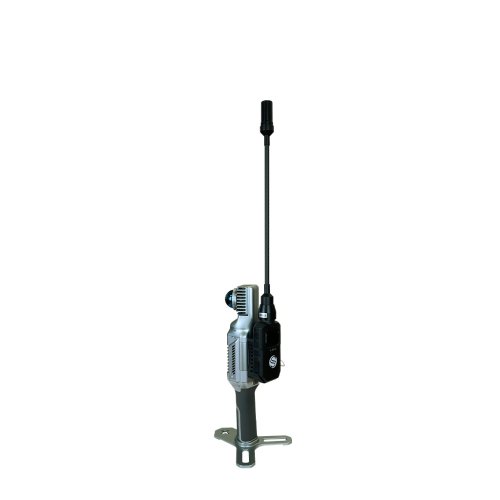

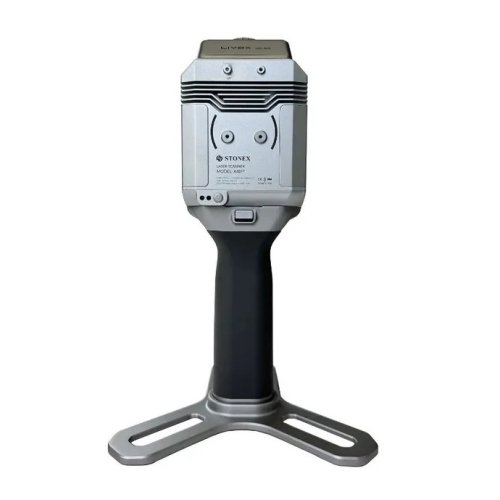

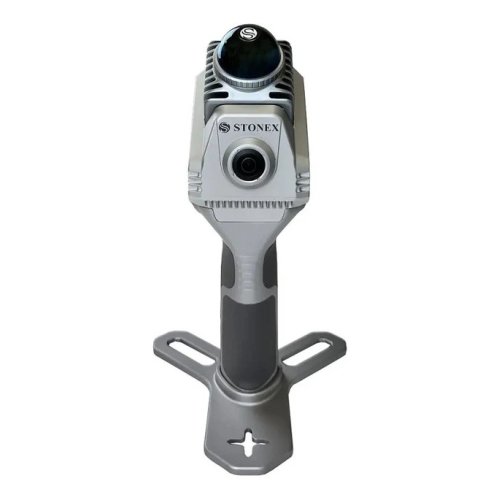

Sale Stonex X40GO Handheld SLAM Laser Scanner NEW
STONEX
X40GO is a compact system providing high-precision point cloud data, based on SLAM technology. The 70-meters range LiDAR orientation has been designed to maximise coverage and a 12-megapixel camera provides texture information to the 3D model. An affordable and simple solution, the idea for interior surveys and layout generation.
£2,480.65
Stonex X40GO Handheld SLAM Laser Scanner NEW
X40GO is a compact system providing high-precision point cloud data, based on SLAM technology.
The 70-meters range LiDAR orientation has been designed to maximise coverage and a 12-megapixel camera provides texture information to the 3D model.
An affordable and simple solution, the idea for interior surveys and layout generation.
With a scanning range of up to 300,000 points per second and 120-meter max range, this unit is designed for architecture, construction, forensics, archaeology, and utility documentation. The system offers live preview and playback, automatic point cloud generation, and seamless integration with Stonex Reconstructor, Cube-3D, or third-party modeling platforms.
Weighing just 1.3 kg and operated via a simple touch interface or app, the X40GO makes 3D data collection truly portable, whether handheld, vehicle-mounted, or drone-suspended. Its 360° horizontal and 270° vertical field of view ensures comprehensive capture in cluttered or large-scale environments. The scanner stores all data locally and supports automatic processing for ease of use.
The X40GO is fully compatible with industry-standard 3D processing software including Stonex Cube-3D and PointCab, enabling you to convert raw SLAM data into precise point clouds, meshes, sections, and CAD-ready deliverables.
Key Features:
SLAM Technology-GPS-free real-time 3D mapping with IMU integration
360° LiDAR Sensor-300,000 pts/sec, 120 m max range, FOV: 360° × 270°
Live Preview-Real-time data capture with mobile app interface
Lightweight Design-1.3 kg body, handheld or mobile-mounted operation
Battery Runtime-Up to 2.5 hours per charge
Storage-512 GB SSD onboard storage for extended field capture
Software-Compatible with Stonex Reconstructor and third-party tools
Use Cases-Perfect for surveying, interior scans, asset documentation, and large-area capture
Specifications :
LIDAR
Max Range
70m@80%, 40m@10%
Min Range
0.1 m
Scanning Point Frequency
200.000 pts/s
Field of view
360°H. -7~52°V
Laser Class
Class 1
Wavelength
905nm
RGB CAMERA
N° of pixels
12 Mpx
Diagonal FOV
210°
Focal length
1.26 mm
Resolution
2704X2288 px
Sensor size
1/2.3 inch
Pixel size
1.55 u m
SYSTEM
Relative accuracy
6 mm¹
Control point support
Ground & wall
Data storage
512GB SSD
Communication
Wi-fi, USB type-c
Operating mode
SLAM mode, Real-time visualization
Processing mode
Post-processing with GOpost2
ELECTRICAL SPECIFICATION
Power consumption
18W
System supply
voltage 20V
Operating time
1.7 h (single battery)
External power
USB Tyce-с
Battery input voltage
5-20V
Battery output voltage
10.8V
Battery capacity
3000mAh
PHYSICAL SPECIFICATION
Weight
0,65 kg (Without battery)
1.16 kg (With battery)
Size
283.8 mm x 173.8 mm x 170 mm
Operating temperature
-20°C to +50°C (-4°F to 122°F)
Operating humidity
<95%
Waterproof/Dustproof
IP54
INCLUDED :
Cube-3d Scanner Software
Soft Transport Case
Battery Handle
GCP (Ground Control Point) Base
EU and US Charger
Power Cable
GOapp Mobile Interface
GOpost Processing Software
Calibration Test Documentation
Also you can check product : Sale Stonex X70GO SLAM Laser Scanner NEW
- Availability: 26 In Stock
- Model: X40GO
- SKU: B60-200453
-
